Hydro Bloom dripline

HydroBloom 8 mm miniature dripline forHydrobloom 8 mm dripline, plastro Garden and Grow house dripline.
Product leaflet

Hydrobloom installation instuctions

Probably the world smallest integral dripline, with a very competitive pricing and very small volume/weight for shipping.
Hydrobloom Photo gallery

Ideal for home & Garden. Also for small grow houses.

Applications: Short driplines on flat terrain, Garden and Grow houses, Densely planted flower beds, Home vegetable gardens, Roof gardens and containers.
Main Features: Hydro-Bloom Pre-inserted in-line drip emitters enable easy and fast installation. Turbulent flow through the water passages prevents formation of residues. Two large inlet filters in each emitter
Specifications: -  Dripline size: Internal diam.: 6.4 mm [0.25"] ; Outer diam.: 8 mm [0.315"]  -  Flow rate at 1.0 bar [15 psi] : 1.2 lph  [0.3 gph] -  Operating pressure: up to 2.0 bar [29 psi]  -  Standard drip emitter spacing: 15 to 50 cm [6" to 19.7"]
-  Color : Brown or Green  -  Recommended filtration: 100 mic [140 mesh]


Maximum recommended Length (m)
on flat terrain



Maximum recommended Length (feet)
 on flat terrain

Emitter
spacing (m)

0.15

0.20

0.30

0.40

0.50



Emitter
spacing (inches)

20

16

12

8

6

Length (m)

13

17

24

30

35



Length (feet)

43

56

79

98

115



hydrobloom 8 mm 550 m [1800 feet] Advanced Kit
+
hb-k2-500-50-b
:   kg
!
2 X 25 m 0.5 X 1000 roll
garden HydroBloom 8mm 500+50m [1640+64 foot] integral dripline advanced kit.

Advanced Kit of the world smallest integral dripline. HydroBloom 8 mm by Plastro

A comprehensive kit ready for the garden, grow house, green house and road island gardens.

HydroBloom Advanced dripline kit instructions and manual



Hydrobloom Drip Irrigation Advanced Kit*

Quantity

Unit

Description

Cat. No.

500

m

Hydrobloom Brown 8/32 1.2 l/h emitters each 0.20 m [0.3 GPH] each [8"] [1640 foot]

02020-2861

50

m

LD PE Pipe Brown 8/32 Roll [164 foot] Roll

01025-0076

1

pcs.

3/4" 140 mesh Disc filter and valve.
Feets Bsp and Npt threads

1072-0140-15874

30

pcs.

Barbed coupling 8x8 Brown

05210-0041

15

pcs.

Barbed Tee 8x8x8 Brown

05250-0028

10

pcs.

Barbed Elbow 8x8 Brown

05240-0022

5

pcs.

Barbed Adaptor 8x1/2" M Thrd. Brown

05235-0034

1

pcs.

Mini puncher inserter 3.7 mm

03140-0023

100

pcs.

BloomPeg stabilizer 8mm Brown

02155-0001

* This dripline kit does not include main and sub-main lines piping.



Trial kit for small farms and home gardens
COVERAGE

Area
sq. meters

Crop and spacing between lines [meters]

750

Field crops,   1.5 m

1,000

Field crops,   2 m

1,500

Vineyard,      3 m

2,000

Orchard,       4 m

2,500

Orchard,       5 m

4,000

Dates,            8 m



Trial kit for small farms and home gardens
COVERAGE

Area
sq. feett

Crop and spacing between lines [feet]

8,100

Field crops,   5'

10,800

Field crops,   6.5'

16,000

Vineyard,      10'

21,500

Orchard,       13'

27,000

Orchard,       16.5'

43,000

Dates,            26'

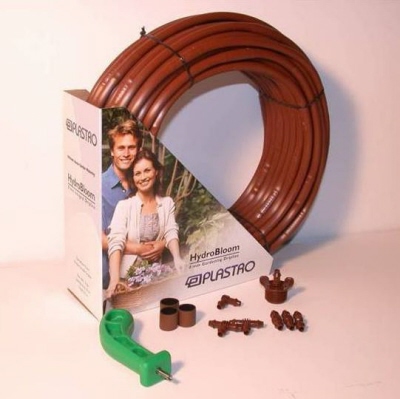

HydroBloom 8 mm 25 m [82 foot] Starter Kit
+
hb-k1-25-b
:   kg
!
Garden HydroBloom 8mm 25m [82 foot] integral dripline starter kit.

A starter kit of the world smallest integral dripline. HydroBloom by Plastro

A complete kit ready to go for the small garden or grow house.

HydroBloom starter kit instructions and manual

Hydrobloom Drip Irrigation Starter Kit*

Quantity

Unit

Description

Cat. No.

25

m

Hydrobloom Brown 8/32 1.2 l/h emitters each 0.20 m [0.3 GPH] each [8"] [85 foot]

02020-3177

3

pcs.

Barbed coupling 8x8 Brown

05210-0041

2

pcs.

Barbed Tee 8x8x8 Brown

05250-0028

1

pcs.

Barbed Elbow 8x8 Brown

05240-0022

1

pcs.

Barbed Adaptor 8x1/2" M Thrd. Brown

05235-0034

1

pcs.

Mini puncher inserter 3.7 mm

03140-0023

3

pcs.

Line end sleeve

16 mm pe pipe


*This dripline kit does not include main and sub-main lines piping.

HYDROBLOOM BROWN 8/32 1.2 l/h - 500m [1640 foot] roll
+
02020
:   kg
!
Miniature Dripline for the garden and small grow house 500m [1640 foot] roll

HYDROBLOOM integral dripline (brown) 8 mm /3.2 with 1.2 l/h [0.3 gph] double outlet emitter 500 m roll. For Short driplines on flat terrain, Garden and Grow houses, Densely planted flower beds, Home vegetable gardens, Roof gardens and containers. Also for small traffic islands.

LD PE PIPE BROWN 8/32 50m [164 foot] roll
+
01025-0076
:   kg
!
Blind tube for HydroBloom dripline systems
LD PE PIPE BROWN 8 mm/32 50 m [164 foot] roll

BARBED ADAPTOR 8x1/2" M THRD BROWN, 25 units pack
+
05235-0034
:   kg
!
Insert adaptor 8 x 1/2" M THRD
Insert adaptor 8 x 1/2" M THRD, serve as a system start, BROWN, 25 units pack

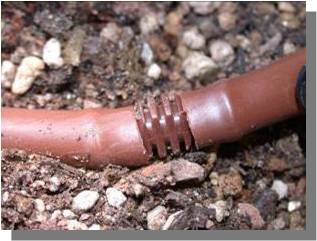

BARBED COUPLING 8x8 BROWN, 25 units pack
+
05210-0041
:   kg
!
Insert coupling
Insert coupling 8x8 BROWN, 25 units pack, also serve as a start connector

BARBED TEE 8x8x8 BROWN, 25 units pack
+
05250-0028
:   kg
!
Insert tee
Insert tee 8x8x8 for dripline distribution, BROWN, 25 units pack

BARBED ELBOW 8x8 BROWN, 25 units pack
+
05240-0022
:   kg
!
Insert elbow
Insert elbow 8x8 for a neat dripline setup, BROWN, 25 units pack

BLOOMPEG 8mm BROWN, 50 units pack
+
02155-0001
:   kg
!
BLOOMPEG dripline stabilizer
BLOOMPEG 8 mm, dripline stabilizer, BROWN, 50 units pack

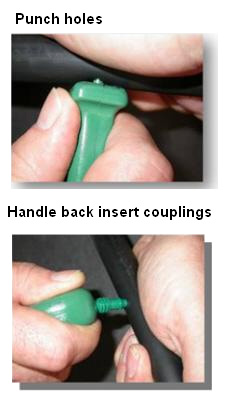

Mini puncher inserter 3.7 mm
+
03140-0023
:   kg
!
Mini puncher 3.7 mm, for drilling and start connector inserting
Mini puncher 3.7 mm, for drilling and start connector inserting
