Drip-line Hydrogol

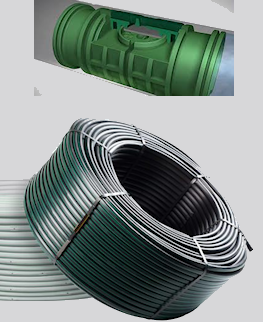

Hydrogol Integral extruded Drip line

Hydrogol drip irrigation dripline with labyrinth high clogging resistance drippers due to a very large water passage and internal filtration area and two water outlets.
Flow rates are calculated at 1.0 bar [15 psi] pressure. The flow rate may vary according to the inlet pressure.
Recommended working pressure range: 0.8 - 2.0 bar [12 - 30 psi]
Applications: for all types of field crops, also for fruit & orchards also for greenhouses. Hydrogol for small and large irrigation systems.
Available emitter spacing (0.15 m to 2.0 m) [ 6" to 79"]

HydroGol Leaflet

HydroGol Design Data Manual

HYDROGOL 12/25 1.0 l/h 0.30 m - 100 m Roll

02020-0225

: kg

HYDROGOL integral dripline 12/25 [1/2"/25] 1.0 l/h 0.30 m - 100 m roll

HYDROGOL, unique integral drip line, 100 m [330 feet] Roll
1.0 l/h [0.3 gph] labyrinth drippers inserted inside a 12 mm LD PE pipe each 0.30 m [12"]
the PE LD pipe with 0.65 mm wall thickness [25 mil]
drip irrigation systems by irrigationglobal.com

HYDROGOL 12/25 1.0 l/h 0.30 m - 200 m Roll

02020-2077

: kg

HYDROGOL integral dripline 12/25 [1/2"/25] 1.0 l/h 0.30 m - 200 m roll

HYDROGOL, unique integral drip line, 200 m [660 feet] Roll
1.0 l/h [0.3 gph] labyrinth drippers inserted inside a 12 mm LD PE pipe each 0.30 m [12"]
the PE LD pipe with 0.65 mm wall thickness [25 mil]
irrigation systems by irrigationglobal.com

HYDROGOL 12/25 1.0 l/h 0.30 m - 400 m Roll

02020-0153

: kg

HYDROGOL integral dripline 12/25 [1/2"/25] 1.0 l/h 0.30 m - 400 m roll

HYDROGOL, unique integral drip line, 400 m [1,300 feet] Roll
1.0 l/h [0.3 gph] labyrinth drippers inserted inside a 12 mm LD PE pipe each 0.30 m [12"]
the PE LD pipe with 0.65 mm wall thickness [25 mil]
drip systems by irrigationglobal.com

HYDROGOL 12/25 [15/32"] 1.0 l/h [0.3 gph] 600 m Roll

02020

: kg

HYDROGOL integral dripline 12/25 [1/2"/25] 1.0 l/h 600 m roll

HYDROGOL, unique integral drip line, 600 m [1,970 feet] Roll
1.0 l/h [0.3 gph] labyrinth integral drippers.

Drip emitters are inserted in the pipe extrusion process inside a 12 mm LD PE pipe with 0.65 mm wall thickness [25 mil]

Drip irrigation systems by irrigationglobal.com
Planning and implementation of complete drip irrigation systems and projects.

HYDROGOL 16/35 [5/8"/35] 1.0 l/h [0.55 gph] 400 m Roll

02020A

: kg

Hydrogol integral injected dripline

HYDROGOL, unique integral drip line, 400 m [1,300 feet] Roll 1.0 l/h [0.3 gph] labyrinth drippers inserted inside a 16 mm [5/8"/35] LD PE pipe with 0.9 mm wall thickness [35 mil]

HYDROGOL 16/35 [5/8"/35] 1.6 l/h [0.4 gph] 400 m Roll

02020B

: kg

Hydrogol integral injected dripline

HYDROGOL, unique integral drip line, 400 m [1,300 feet] Roll 1.6 l/h [0.4 gph] labyrinth drippers inserted inside a 16 mm [5/8"/35] LD PE pipe with 0.9 mm wall thickness [35 mil]

HYDROGOL 16/35 [5/8"/35] 2 l/h [0.55 gph] 400 m Roll

02020C

: kg

Hydrogol integral injected dripline

HYDROGOL, unique integral drip line, 400 m [1,300 feet] Roll 2 l/h [0.55 gph] labyrinth drippers inserted inside a 16 mm [5/8"/35] LD PE pipe with 0.9 mm wall thickness [35 mil]

Hydro Clip Blue 16 mm - 5,000 pack

02150/06

: kg

IG Blue HYDROCLIP FOR 16 mm 5,000 pack

IG Blue HYDROCLIP FOR 16 mm, Hydro-Clip enable to block temporarily specific drippers water outlets, along integral driplines, for use with : hydro-pc, hydrogol.

Hydro Clip Red 17/20 mm - 5,000 pack

02150/01

: kg

IG RED HYDROCLIP FOR 17mm & 20mm
5,000 pack

IG RED HYDROCLIP FOR 17mm & 20mm, Hydro-Clip enable to block temporarily specific drippers water outlets, along integral driplines, for use with : hydro-pc, hydrogol.
