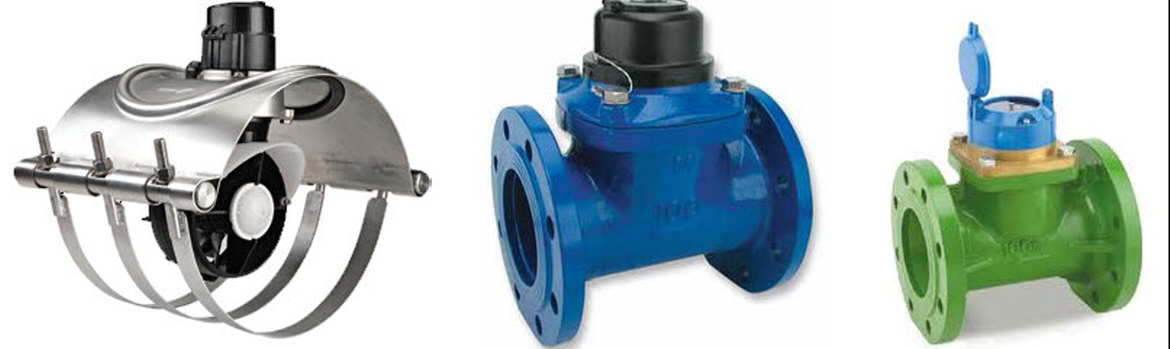

Water meters

Water meters irrigation systems

Woltman Turbine Meter

 Features and Benefits

Removable and interchangeable measuring element

Dry type register

Hermetically sealed

Includes output option by Dry Contact (Reed Switch)

and Opto-Electronic sensor, as standard

Digital flow converter device and a digital counter

are available on request

Magnetic transmission keeps the register completely

separate from water; only the impeller and transmission

shaft contact water

Meets or exceeds ISO 4064 class B-H

US gallons registration available on request

EEC Approval (50-300 mm)

Magnetic Drive Dry Type WPH

EEC CLASS B

Woltamn Turbo-IR Type Water Meter - WPH

BERMAD
turbo-ir
    Delivery time:6-10 W Days
Add to cart
waltman turbo type water meter
IRRIGATION TURBO WATER METERS

TURBO-IR , Bermad
Water Meters
for Irrigation and Waste Water

Features and Benefits
■ Magnetic drive
■ Dry, vacuum sealed register
■ Option for “reed switch” sensor
■ Register can rotate 360°
■ Paddle wheel design prevents jamming and damage due to solid debris
■ Measuring element suits range of water meter sizes
■ Easy maintenance
■ Can be installed in any orientation
■ Low head loss.

The TURBO-IR uses a multi-blade plastic paddle mounted at the top of the water passage, where disturbance from solids suspended in the water is minimal, permitting accuracy of metering in water containing up to 30% solid debris.
ONLY M3/H SCALES no gallon scales
Ideal for irrigation and waste water applications.

bermad TURBO-IR uses a multi-blade plastic paddle

 tutbo-ir water meter technical leaflet

Turbo-BAR Type Water Meter - WPH

BERMAD
wph
    Delivery time:6-10 W Days
Add to cart
waltman turbo type water meter
WATER SUPPLY AND INDUSTRIAL TURBO wph WATER METERS

WPH water meters, Bermad TURBOBAR



Tturbo-bar water meter tchnical leaflet

Technical Specifications:

Sizes: 1 1/2” to 5” :


in

1 ½”

2”

2 ½”

3”

4”

5”


DN

40

50

65

80

100

125

Qn - Nominal flow rate

(ISO 4064) (m3/h)

10

15

25

40

60

100

Qn - Nominal flow rate

(ISO 4064) (m3/h)

20

30

30

60

100

160

Qn – Nominal flow rate

(ISO 4064) (m3/h)

20

30

50

80

120

200

Max. flow peak duty

(m3/h)

30

50

80

120

200

250

Qt - Transmition flow rate

(±2%) (m3/h)

3

3

5

8

12

20

Qmin - Min. flow rate

(±5%) (ISO 4064) (m3/h)

0.7

.45

.75

1.2

1.8

3

Flow rate Δp =

0.1 bar (m3/h)

30

0.7

55

60

90

120

Max. reading m3

1,000,000

Min. reading (liter)

1



Sizes 6” to 20” :


in

6”

8”

10”

12”

16”

20”


DN

150

200

250

300

400

500

Qn - Nominal flow rate

(ISO 4064) (m3/h)

150

250

400

600

1,000

1,500

Qn - Nominal flow rate

(ISO 4064) (m3/h)

180

300

600

1,000

1,500

3,000

Qn – Nominal flow rate

(ISO 4064) (m3/h)

300

500

800

1,200

2,000

3,000

Max. flow peak duty

(m3/h)

300

500

800

1,500

2,500

4,000

Qt - Transmition flow rate

(±2%) (m3/h)

30

50

80

120

200

300

Qmin - Min. flow rate

(±5%) (ISO 4064) (m3/h)

4.5

7.5

12

18

30

40

Flow rate Δp =

0.1 bar (m3/h)

300

500

850

1,500

3,000

5,000

Max. reading m3

10,000,000

100,000,000

Min. reading (liter)

10

100
