manual_disc_filters
manual disc filters
Filters Disk
Arkal manual disk filters

Arkal Manual Irrigation Disc Filters Standard Features:

- Innovative irrigation filter design captures and retains large amounts of solids.
- Long-term operation with little maintenance or cleaning.
- Operation is easy and requires no special tools.
- Completely resistant to corrosion, chemicals and fertilizers diluted in irrigation water.
- Max working pressure 10 bar [125 psi]
- Filtration grades: 400µ to 100µ [40 Mesh to 160 Mesh] Higher grades available up to 20µ [600 Mesh]

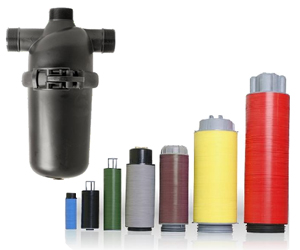

- The irrigation filtration element consists of grooved discs, mounted on a spine,forming a cylindrical filter element. The disks are compressed together by a spring located at the bottom of the filter cover. Optional controller will spin klin the battery by pre-set pressure drop or by time intervals.

Read about arkal disc filtration technology

Arkal manual disc filters technical guide

Bsp or Npt

Filtration grades Mesh and Micron comparison table

MANUAL PLASTIC FILTER 3/4" [ BSP and NPT ]
+
1070
:   kg
!
3/4" 0.75 mm disc filter
3/4" [0.75"] [20 mm] Disc irrigation filter, Arkal.

Arkal plastic 3/4" [20 mm] disc filter [feet both BSP & NPT std.]
max. flow rate:
good water quality:      4 m3/h [17.6 gpm]
average water quality: 3 m3/h [13.5 gpm]
applications: irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads.
Product Leaflet

MANUAL PLASTIC FILTER 3/4" FILTAP [ BSP and NPT ]
+
1072
:   kg
!
arkal 3/4" 0.75 mm disc filtap filter with valve

3/4" [0.75"] [20 mm] Disc irrigation water filter and valve.

Arkal plastic 3/4" [20 mm] disc filter Save a valve: [two-in-one], includes a 3/4" integral valve for operation and for cleaning.
max. flow rate:
good water quality:      4 m3/h [ 17.6 gpm]
average water quality: 3 m3/h [13.5 gpm]
applications: irrigation systems in gardening, nurseries, delicate devices protection, feritgation, small control heads.
Product Leaflet

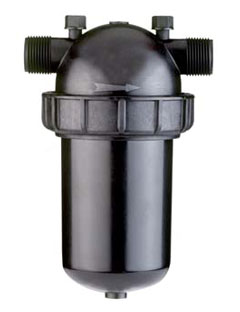

MANUAL PLASTIC FILTER 1" [BSP or NPT]
+
1100
:   kg
!
1" short disc filter
1" [25 mm] Short Disc water filter by arkal

Arkal short plastic 1" [25 mm] disc filter
max. flow rate:
good water quality:      6 m3/h [ 26 gpm]
average water quality: 4 m3/h [18 gpm]
applications: gardening, nurseries, delicate devices protection, feritgation, small control heads.
Product Leaflet

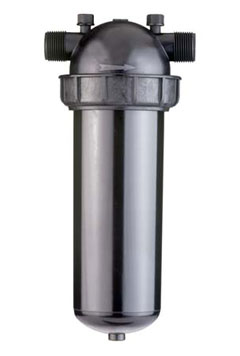

MANUAL PLASTIC FILTER 1" SUPER [BSP or NPT]
+
1102
:   kg
!
1" super disc filter
1" [25 mm] Super Disc irrigation filter by arkal

Arkal super plastic 1" [25 mm] disc filter
max. flow rate:
good water quality: 8 m3/h [ 35 gpm]
average water quality: 6 m3/h [26 gpm]
applications: gardening, nurseries, small control heads, small secondary {control} filtration.
Product Leaflet

MANUAL PLASTIC FILTER 1 1/2" SHORT [BSP or NPT]

+
1150
:   kg
!
1 1/2" short disc filter
1 1/2" [1.5"] [40 mm] Short Disc irrigation filter by arkal

Arkal short plastic 1 1/2" [1.5"] disc filter - BSP or NPT male threads connections.
max. flow rate:
good water quality: 8 m3/h [36 gpm]
average water quality: 6 m3/h [27 gpm]
applications: gardening, nurseries, small control heads.
Product Leaflet

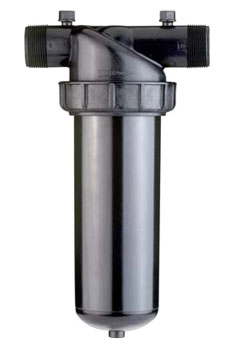

MANUAL PLASTIC FILTER 1 1/2" SUPER [BSP or NPT]
+
1152
:   kg
!
1 1/2" super disc filter
1 1/2" [1.5"] [40 mm] Super Disc irrigation filter by arkal

Arkal super plastic 1 1/2" disc filter - BSP or NPT male threads connections. maximum filtration flow rate: good water quality: 12 m3/h [ 53 gpm] average water quality: 10 m3/h [44 gpm]
applications: big gardens and nurseries, small control heads.
Product Leaflet

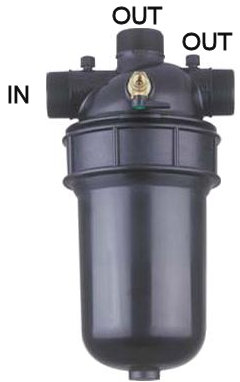

MANUAL PLASTIC FILTER 2" LEADER
+
1224
:   kg
!
2" leader disc filter
2" [50 mm] Leader Disc irrigation filter, arkal

Arkal Leader plastic 2" disc filter with a detachable spine with drain valve - Most valuable quality disc filter.
2 Outlet options: in-line or angle, Adapts to horizontal or vertical installation.
max. flow rate:
good water quality:       25 m3/h [110 gpm]
average water quality: 20 m3/h [88 gpm]
applications: main filtration for small plots, secondary (control) filtration.
Most cost effective filter in the market.
Threads fit both BSP and NTP standards.
Free wrench is supplied with each filter

Product Leaflet

MANUAL PLASTIC FILTER 2" DUAL LITE
+
1205
:   kg
!
2" plastic dual lite disc filter
2" [50 mm] Dual Lite Plastic disc water filter, arkal

Arkal dual lite plastic 2" disc filter
2 Outlet options: in-line or 90 deg. angle.
2" thread feet both standards: BSP and NPT
Filtration area / cost effective filter !
Most valuable quality disc filter, with extra strength closing clamp
maximum. Flow rate:
good water quality:      25 m3/h
average water quality: 20 m3/h [88 gpm]
applications: control heads for small plots or large gardens, secondary control filter. - Pressure differential disc compression - bottom outlet for drain valve.
Product Leaflet

MANUAL PLASTIC FILTER 2" DUAL
+
1204
:   kg
!
2" dual disc filter
2" [50 mm] Dual Plastic disc water filter, arkal

Arkal dual plastic 2" disc filter with a detachable spine - 2 Outlet options: in-line or 90 deg. angle.
maximum. Flow rate:
good water quality:      25 m3/h
average water quality: 20 m3/h [88 gpm]
applications: control heads for small plots or large gardens, secondary control filter. - Pressure differential disc compression - bottom outlet for drain valve.
BSP or NPT threads standards.
Product Leaflet

MANUAL PLASTIC FILTER 2" LINE
+
1201
:   kg
!
2" in-line disc filter
2" [50 mm] Line Plastic disc water filter, arkal
Arkal line plastic 2" disc filter with a detachable spine - 2 Outlet options – in line or angle, Adapts to horizontal or vertical installation.
 max. filtration flow rate:
good water quality:       25 m3/h [110 gpm]-
average water quality: 20 m3/h [88 gpm]
applications: main filtration for small plots, secondary (control) filtration.
Detachable spine. - Pressure differential disc compression. - Easy clamp-on filter cover.
BSP or NPT threads standards.
Product Leaflet

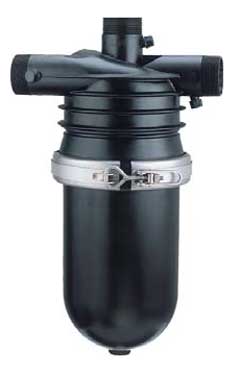

MANUAL PLASTIC FILTER 2" DS SUPER
+
1212
:   kg
!
2" super disc filter
2" [50 mm] Super Plastic disc water filter by arkal

Arkal super plastic 2" disc filter with a detachable spine - A right angle filter with three 2" male end connections [feet both bsp and npt standards].
maximum filtration flow rate: good water quality: 25 m3/h [110 gpm] average water quality: 20 m3/h [88 gpm]
- Two connection option Right angle or straight in-line usage.
- bottom outlet for drain valve. -
applications: small plots control heads, secondary control filter.
Product Leaflet

MANUAL PLASTIC FILTER 2" SAND SEPARATOR
+
1218
:   kg
!
2" Sand separator. collection tank is optional.
2" [50 mm] Sand separator hydro-cyclone Plastic water filter by arkal

Arkal 2" sand separator Hydro cyclone [centrifugal] Thread fits both BSP and NPT
Filtration Flow rate:
Minimum flow rate: 15 m3/h [88 gpm]
Maximum flow rate: 25 m3/h [110 gpm]

• The unit is mounted in a vertical position.
• Water enters through the tangential inlet producing a downward spinning movement. Sediments are pressed against the filter body by centrifugal force.
• Sediments accumulate at the bottom of the filter.
• In order to flush accumulated sediments, a drain valve is installed at the bottom of the unit. Applications
• Sand and gravel separation from deep well pumping.
• Pre-filtering of water supplied to laboratories and industry.
• Pre-filtering of drip and micro-sprinkler systems.
• Protective sand removal – prevents wear and tear on sprinkler nozzles. Optional sand collection tank.
Product Leaflet

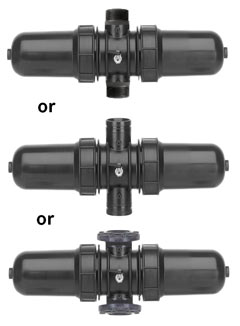

MANUAL PLASTIC TWIN FILTER 3" LEADER
+
1320
:   kg
!
3" leader twin disc filter
3" [75 mm] Leader TWIN Plastic disc water filter by arkal

Arkal leader TWIN plastic 3" disc filter with a detachable spine - Most valuable quality disc filter.
huge disc filtration volume.

maximum flow rate:
good water quality:      50 m3/h [198 gpm]
average water quality: 42 m3/h [132 gpm]
applications: main filtration for small plots, secondary (control) filtration - Pressure differential disc compression - High volume filter with increased flow capacity - Easy to open and close filter cover - Drain valve
available connections: Threaded BSP or NPT, Victaulic and Flange (fit all flange standards)
Product Leaflet

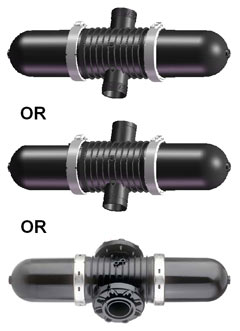

MANUAL PLASTIC TWIN DISC TWIN FILTER 3"
+
1353
:   kg
!
3" twin disc filter
COMPLETE
3" [75 mm] Twin Plastic disc water filter by arkal
Arkal Twin plastic 3" disc filter with a detachable spine - Most valuable quality disc filter.
maximum flow rate:
good water quality:     50 m3/h [176 gpm]
average water quality: 42 m3/h [132 gpm]
applications: main filtration for small plots, secondary (control) filtration -victaulic band not included - Pressure differential disc compression - Robust design - High volume filter with increased flow capacity - Easy to open and close filter cover.
Available connections: BSP Threaded or Victaulic or Flange ] flange standards BSTD,ANSI,ASA,DIN]
Product Leaflet

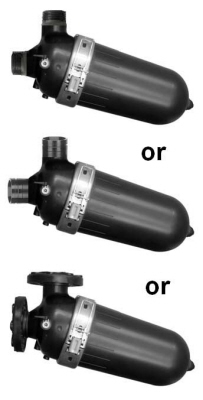

MANUAL PLASTIC FILTER SUPER 3" ANGLE ARKAL
+
1370
:   kg
!
arkal 3 super angle disc filter
3" [75 mm] Leader Plastic disc water filter by arkal
Arkal Super angle plastic 3" disc filter with a detachable spine Most valuable quality disc filter.
maximum filtration flow rate:
good water quality: 50 m3/h [264 gpm]
average water quality: 40 m3/h [176 gpm]
applications: main filtration for small plots, secondary (control) filtration
Available connections: BSP Threaded or Victaulic or Flange ] flange standards BSTD,ANSI,ASA,DIN]
differential disc compression - Robust design - High volume filter with increased flow capacity - Easy to open and close filter cover - Drain valve
Product Leaflet

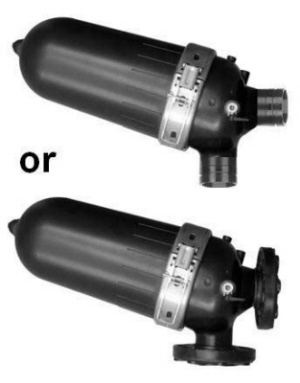

MANUAL PLASTIC FILTER SUPER 4" ANGLE DISC FILTER
+
1410
:   kg
!
4" Super Angle disc filter
All Included:  filter, flange gaskets, drainage valve, pressure check points, etc.
4" [100 mm] Leader Plastic disc water filter by arkal
Arkal Super angle plastic 4" disc filter with a detachable spine - Most valuable quality disc filter.
maximum flow rate:
good water quality:      60 m3/h [396 gpm]
average water quality: 48 m3/h [331 gpm]
applications: main filtration for large plots, secondary (control) filtration victalic band not included - Pressure differential disc compression - Robust design - High volume filter with increased flow capacity - Easy to open and close filter cover - Pressure testing ports are at the filters inlet and outlet - Drain valve.
Available connections: BSP Threaded or Victaulic or Flange ] flange standards BSTD,ANSI,ASA,DIN]
Product Leaflet

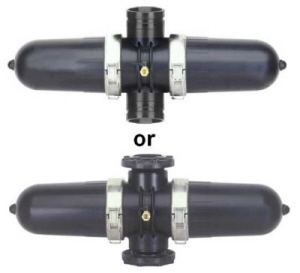

MANUAL PLASTIC FILTER 4" SUPER LEADER
+
1440
:   kg
!
4" Super Leader disc filter
All Included:  filter, flange gaskets, drainage valve, pressure check points, etc.
4" [100 mm] Line Plastic disc water filter by arkal
Arkal super leader plastic 4" disc filter Most valuable quality disc filter.
maximum flow rate:
good water quality: 110 m3/h [440 gpm]
average water quality: 85 m3/h [330 gpm]
applications: main filtration for large plots, secondary (control) filtration.
Available connections: BSP Threaded or Victaulic or Flange ] flange standards BSTD,ANSI,ASA,DIN]
Detachable spine - High flow capacity - Pressure differential disc compression - Drain valve - Large filtration area
Product Leaflet

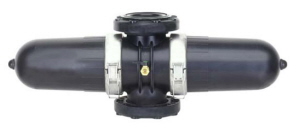

MANUAL PLASTIC FILTER 6" SUPER LEADER ARKAL
+
1460
:   kg
!
6" Super Leader disc filter
All Included:  filter, flange gaskets, drainage valve, pressure check points, etc.
6" [150 mm] Line Plastic disc water filter by arkal

Arkal super leader plastic 6" disc filter Most valuable quality disc filter.
max. flow rate:
good water quality:      160 m3/h [704 gpm]
average water quality: 130 m3/h [618 gpm]
applications: main filtration for large plots, secondary (control) filtration
Feet all Flange standards: BSTD,ANSI,ASA,DIN
Victaulic connectors for batteries are available.
- Detachable spine - High flow capacity - Pressure differential disc compression|
- Drain valve - Large filtration area
Product Leaflet

Disc fliters accessories
!

Wrench leader filter 1" and 1.5" arkal
+
1.5akw
:   kg
!
Free of charge wrench is supplied with each 1" or 1.5"" leader disk filters

A free tool for irrigationglobal.com customers, free filter wrench

Free of charge wrench is supplied with each 1" or 1.5" Arkal Leader disc filters

Wrench leader filter 2" and 3" arkal
+
2_3akw
:   kg
!
Free of charge wrench is supplied with each 2" or 3" leader disk filters

A free tool for irrigationglobal.com customers, free filter wrench

Free of charge wrench is supplied with each 2" or 3" Arkal Leader disc filters
