Filtration

Filtration - water filters for irrigation

Filtration - water filters for irrigation systems

A water filter removes impurities from water by means of a fine physical barrier. Filters cleanse water to various extents for irrigation methods.

A disc filter is a type of water filter used primarily in irrigation, similar to a screen filter, except that the filter cartridge is made of a number of disks stacked on top of each other like a pile of poker chips. The irrigation water passes through the small grooves in between and the impurities are trapped behind. Some types of disk filters like "Spin Klin" can be backflushed in such a way that the disks are able to separate and spin during the cleaning cycle. white papers about filtration

Who needs a filter? and filter recomendation.

You are invited to read the disc filtration technology white paper irrigation
white papers.
Or to watch the spin-klin self cleaning filtration VIDEO

Filtration grades Mesh and Micron comparison table



Filtration Equipment product family:

!

Disk Filtration

Additional info. water disc filter, drip systems

Disc Filter Irrigation
3/4" to 14" Filters.

20 to 400 Microns [40 to 600 Mesh] Disk Filtration Elements

Irrigation systems Filtration
Disc filtration elements consists of grooved discs, mounted on a spine,forming a cylindrical filter element. The disks are compressed together by a spring located at the bottom of the filter cover. Optional controller will spin klin the battery by pre-set pressure drop or by time intervals.

Screen Filters Scanaway & Brushaway Filtration

Buy, screen filters, irrigation systems

Screen HQ Filters

3/4" to 24" Filters.

10 to 600 Microns [20 to 800 Mesh] Screen Filtration Elements

Durable high quality Screen plastic filters for wide range of filtration applications. Interchangeable filter elements for wide range of flow rates, multiple filtration degrees and applications, for irrigation systems and pressurised ater network. Excellent mechanical strength, corrosion resistance and models for chemical durability. Low pressure loss.
Semi-automatic Brushaway cleaning available as optional exclusive features Scanaway & Brushaway* mechanism.

Spin Klin Disc filtration batteries

Buy now, spin klin automatic filters, irrigation systems
Spin Klin Filtration Batteries

2" to 14" Filters and Filtration Batteries

10 to 600 Microns [20 to 800 Mesh] Screen Filtration Elements

Spin klin filtration with self flushing backwash, Spin klin filtration, spin clean
- Holds disc stack for micron-precise filtration of solids. Corrosion-resistant spine and housing.
- Innovative depth filter design captures and retains large amounts of solids - for longer filtration cycles.
- Short, efficient backwash process - saves water and energy.

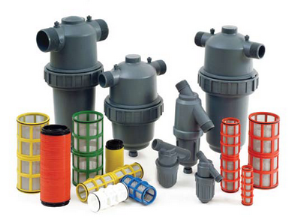

Screen Filters low pressure

Buy, screen filters, irrigation systems
Screen Low Pressure Filters Tagline

3/4" to 3" Filters.

80 to 300 Microns [50 to 180 Mesh] Screen Filtration Elements

Our irrigation plastic screen filters consist on a very high particles retention and large filtration area, enable long cleaning intervals. Durable and non corrosive advanced plastic materials. None of the metal parts is in contact with irrigation water. Simple maintenance, the filter elements are very easily removed from the filter body for cleaning. A wide choice of filter grades and materials to answer different irrigation systems needs.u

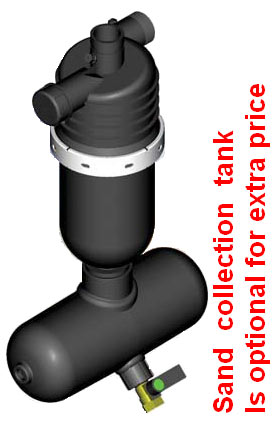

Sand Separators

Sand Separator, irrigation systems
Sand Separators

2" to 12" Batteries.
Filtration Flow rate: Minimum flow rate > 15 m3/h [88 gpm]  Maximum flow rate > 25 m3/h [110 gpm]

O2" Sand separator, Hydro cyclone. Plastic filter for sand. [centrifugal] Thread fits both BSP and NPT
Hydrocyclone, Also known as sand separators, centrifugal filters are mainly for the removal of particles such as sand, and other solids from the irrigation water. They are ideal for situations where a pile of sand, is present in water.
