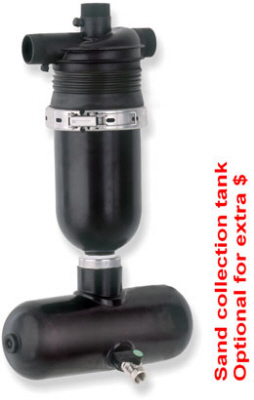

2" Sand separator. collection tank is optional.
MANUAL PLASTIC FILTER 2" SAND SEPARATOR
2" [50 mm] Sand separator hydro-cyclone Plastic water filter by arkal
Arkal 2" sand separator Hydro cyclone [centrifugal] Thread fits both BSP and NPT
Filtration Flow rate:
Minimum flow rate: 15 m3/h [88 gpm]
Maximum flow rate: 25 m3/h [110 gpm]
• The unit is mounted in a vertical position.
• Water enters through the tangential inlet producing a downward spinning movement. Sediments are pressed against the filter body by centrifugal force.
• Sediments accumulate at the bottom of the filter.
• In order to flush accumulated sediments, a drain valve is installed at the bottom of the unit. Applications
• Sand and gravel separation from deep well pumping.
• Pre-filtering of water supplied to laboratories and industry.
• Pre-filtering of drip and micro-sprinkler systems.
• Protective sand removal – prevents wear and tear on sprinkler nozzles. Optional sand collection tank.
Product Leaflet
