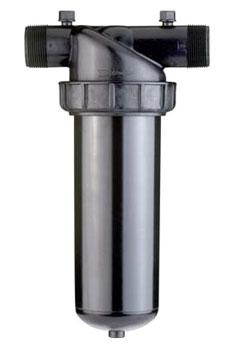

MANUAL DISK FILTER 1 1/2" SUPER [BSP or NPT]
1 1/2" [1.5"] [40 mm] Super Disc irrigation filter by arkal
Arkal super plastic 1 1/2" disc filter - BSP or NPT male threads connections. maximum filtration flow rate: good water quality: 12 m3/h [ 53 gpm] average water quality: 10 m3/h [44 gpm] - Pressure gauge insertion points
applications: big gardens and nurseries, small control heads.
Product Leaflet
|
1½" Super Disc Filter - Technical Data |
|
Data |
1½" Super filter |
|
Maximum pressure: |
10 bar |
145 psi |
|
Flow rate(40-140 mesh, 100-400µ): |
12 m3/h |
56 gpm |
|
Flow rate(55µ): |
7 m3/h |
31 gpm |
|
Filtration surface area: |
500 cm2 |
78 in2 |
|
Filtration volume: |
625 cm3 |
36 in3 |
|
Filter length: |
370 mm |
14 18/32" |
|
Filter width: |
200 mm |
7 28/32" |
|
Distance between end connections: |
200 mm |
7 28/32" |
|
Weight: |
1.5 kg |
3.3 lbs |
