1"T Super Filter, S/St Screen for Sand & Taff Solids

Amiad
01001
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart
  • Description
  • More

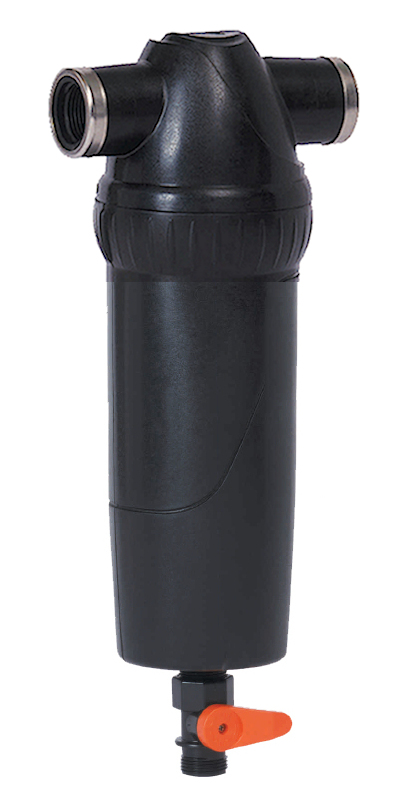

32 mm 1" T Filter,BSPT, Short Special Stainless steel Screen.
Screen filter for sand and small stones presence in the water.
Water & irrigation high pressure screen filtration

General data:
Maximum flow rate: 7.0m³/h [31 GPM] ( for fine sand up to 2.5m3/h [11 GPM]
Screen area: 340 cm2  [ 53 Square inch]
Discs alternative filtration area: 460 cm2  [ 71 Square inch]

In-Out diameter 32mm; 1" Threads (BSP Optional NPT)
Maximum pressure 10 bar [150 psi]
50 or 130 Micron [300, 200 or 140 Mesh]
Nylon from 22 mic & SST/316 from 20 mic Screens
Or amiad 130 micron discs.

Use the 80 mesh ( 200 Microns) Stainless steel Screen for sand filtration

Construction materials:
Housing: Polypropylene
Lid: Polypropylene
Seals: Nitrile Rubber

Weave wire screen data:
Filter area Stainless Steel: 340cm²; 52.7in²
Materials:
Stainless Steel: PP, St.St./PES;NBR

Filtration degrees:
Weave wire Stainless Steel:
500 to 80 micron.
40 to 180 Mesh

Cleaning method:
Manual valve in the bottom of filter.
