4" M100-6,150 filter, (M104-LPN) molded screen sst, , electronic control

Amiad
050005-000184
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
  • Description
  • More

4" M100-6,150 filter, (M104-LPN) molded screen sst,  electronic control

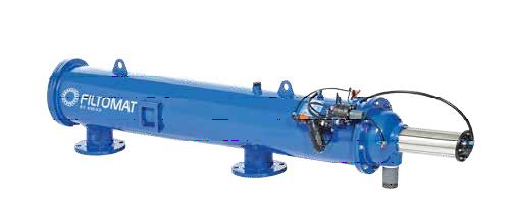

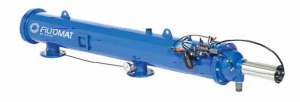

Filtomat Automatic Screen Filter by Amiad
4" M100-6,150 filter, (M104-LPN) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 100 m³/h [440 gpm] Min. flow for Flushing at 2 bar [30 psi] 26 m³/h [114 gpm] Reject water volume per flushing cycle 125 liter [33 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 6,150 sqcm [953 sqin]
Filtomat 4" M104-LPN Brochure
Filtomat IOM Installation Operation Maintenance User Guide

Filtomat by Amiad is suited for Irrigation, Idustrial and Municipal water filtration. Heavy duty construction and performance. Fully automatic flushing operation.
Packagig: 220x70x80 cm - 175 Kg.
