1.5 Hectare [4.0 Acre] Field crops Full Drip Irrigation system

Rivulis Plastro
DIY-dripkit_fc_1.5_ha
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart
  • Description
  • More

DIY DripKit, complete system, fits 1.5 Ha. [4.0 Acres] according to the enclosed design and assembly drawings.
HydroDrip Super dripline.

Complete DripKit Covers irrigation area of: 1.5 Ha  [4.0 Acres]

Design Layout Sample Drawing

Parts Assembly Drawings

 List of material, 1.5 ha. DIY DripKit Field crops
 Quantity  Description and location
   Field drip equipment
9000 m HYDRODRIP SUPER 16/18/1.2/0.30-1500 m
400 m LD PE PIPE 32 mm 4 -100 m*
210 Hydrofit, 16 mm Start connector
210 Hydrofit, 16 mm End Line
30 Hydrofit, 16 mm Tape Coupling
13 32x32 Coupling Compression
18 32x1" Compression Male Adapter
12 1" Plastic Threaded Cap
6 Tee Plassim TEN 32x32x32
6 ELBOW Compression 32x32
6 1" PRESSURE REDUCER PRV VALVE 0.8-2.5 RED [15-29 PSI]

6 1" x 1" Plastic Plasson Valve
6 1" Plastic Threaded Elbow
3 1" x 10 cm PVC Threaded Riser

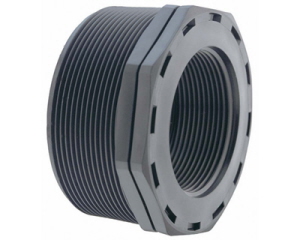

6 11/2" x 1" MF Threaded Bushing
3 11/2" Plastic Threaded Tee
3 11/2" x 70 cm PVC Threaded Riser

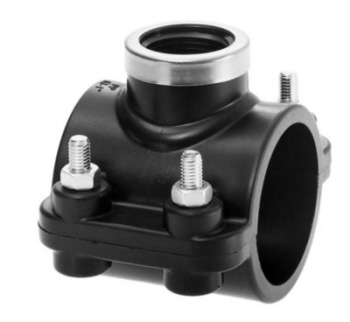

3 63 x 11/2" [4 bolts] Threaded Saddle
   Control Head
1

2" Screen Filter, Tagline 120 mesh [130 Micron]


2 2"x11/2" FF Plastic Reducer
1 11/2" Non Return Valve
3 11/2" Plastic Threaded Tee
3 11/2" x 3/4" MF Threaded Bushing
1 3/4" Threaded Plastic Plug
2 1" plastic double nipple
Main Line [fittings only]
 1  63x2" Female Adapter Compression
3 63x11/2" Male Adapter Compression
1  63x63 Coupler Compression
1 63x63 Elbow Compression
12 Teflon Tape Roll
   General
1 Manometer for pressure adjustments
1 Needle for manometer
1 Misc fittings: 7.7 or  15.5 mm drill ; Head connector inserter tool
