Drip-line Hydrodrip Flat

Hydro Drip super Drip LineHydrodrip super flat drip line

Hydrodrip Super Drip Line

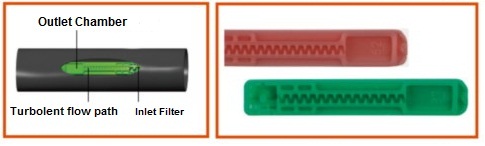

Flat integral drip-line for drip irrigation systems with boat-shaped emitters fused to the inner tube wall. Hydrodrip Super is clogging resistant due to the unique flow path structure design. Hydrodrip Super dripline tape grant an easy layout and retrieval. Manufactured in a wide range of diameters and different wall thicknesses manufactured from durable materials resistant to fertilizers commonly used in irrigation. Flow rates for wall thickness of 18 mil*: 1.2 - 1.65 - 2.1 l/h *Flow rates vary according to wall thickness and inlet pressure.

Diameter and wall thickness:
- 16mm [5/8"] W.T.: 10, 12, 15, 18, 25 mil
-  22mm [7/8"]  W.T.: 10, 12, 15, 18, 25 mil
Flow rates vary according to wall thickness. Maximum operating pressure according to wall thickness.  Hydrodrip Super can be ordered at any preset.
Applications: Cost effective solution for field crops, greenhouses and temporary mining heap leach drip irrigation systems.

 hydro-drip super, leaflet

 hydro-drip super, design data manual

!

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 25 mil [wall 0.46 mm] 600 m [1,967'] each 0.3 m [12"]

John Deere
101002312-600
Weight: kg
+Shipping

Special package suitable for EMS parcel shipping.
HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 18 mil [wall 0.46 mm] 600 m [1,312']

1.20 l/h [0.32 gph] Drip emitter Each 0.30 m [12"]
Working pressure 2.0 Bar [29 PSI

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 25 mil [wall 0.64 mm] 400 m [1,312'] each 0.6 m [24"]

John Deere
J02015-25-SP1
Weight: kg
+Shipping

Special package suitable for EMS parcel shipping.
HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 25 mil [wall 0.64 mm] 400 m [1,312']

1.20 l/h [0.32 gph] Drip emitter Each 0.60 m [24"]
Working pressure 2.0 Bar [29 PSI

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 10 mil 2200 m [7,213']

John Deere
J02015-10
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 12 mil 1600 m [5,250']

John Deere
J02015-12
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 15 mil 1300 m [4,265']

John Deere
J02015-15
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 18 mil 1500 m [4,922']

John Deere
J02015-18
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 16 mm [0.63"] 25 mil 800 m [2,625']

John Deere
J02015-25
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 22 mm [0.87"] 10 mil 1,650 m [5,414']

John Deere
J02015-22-10
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 22 mm [0.87"] 12 mil 1,200 m [3,937']

John Deere
J02015-22-12
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 22 mm [0.87"] 15 mil 1,000 m [3,281']

John Deere
J02015-22-15
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 22 mm [0.87"] 18 mil 900 m [2,953']

John Deere
J02015-22-18
Weight: kg
+Shipping

HYDRODRIP SUPER DRIPLINE 22 mm [0.87"] 25 mil 700 m [2,297']

John Deere
J02015-22-25
Weight: kg
+Shipping
