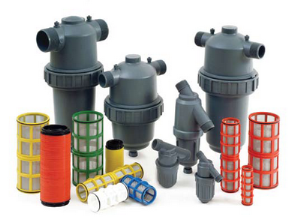

All-purpose plastic water irrigation filters from 3/4" to 3", with filtration degrees from 300 to 80 micron.

Our irrigation plastic screen filters consist on a very high particles retention and large filtration area, enable long cleaning intervals. Durable and non corrosive advanced plastic materials. None of the metal parts is in contact with irrigation water. Simple maintenance, the filter elements are very easily removed from the filter body for cleaning. A wide choice of filter grades and materials to answer different irrigation systems needs. Low head loss (energy loss) at high flow rates. From 2 Inches and above, a parallel product line is available with the options of Scan-Away or Auto-Flush or Brush-Away technologies Automatic and semi-automatic cleaning.Max. working pressure 8.0 bar
- Filtration grades Mesh and Micron comparison table

Screen Filters Tagline Amiad technical guide

!

Single units orders

Amiad
6 to 10 dats
KP007B.YPT.0003
Weight: kg
3-4_inches_screen_filter

3/4" inches TAGline Filter, Nylon screen

3/4 Inches [25 mm] Screen advanced irrigation plastic filter

3/4" TAGline Amiad Irrigation water Filter, Nylon screen, Polly-acetal body
Filtration grades: 100 and 130 Micron [120 & 140 Mesh]
max. flow rate:
good water quality:      3.0 m3/h [13 gpm]
average water quality: 2.3 m3/h [10 gpm]
* Consult irrigationglobal.com for optimum flow depending on filtration degree & water quality.

0702-4831-8013
Connections: male threads, BSP or NPT

Amiad
6 to 10 dats
KP010B.CPT.0003
Weight: kg

1" inch TAGline Filter, Nylon screen

1 Inch [32 mm] Screen advanced irrigation plastic filter

1" TAGline Amiad Irrigation water Filter, Nylon screen, Polyacetal body
Filtration grade: 130 micron [120 mesh]
max. flow rate:
good water quality: 3.3 m3/h [14.5 gpm]
average water quality: 2.6 m3/h [11 gpm]
Connections: male threads, BSP or NPT

Amiad
6 to 10 dats
KP015B.SPT.0004
Weight: kg

11/2" inches TAGline Filter, Weave Wire screen

1 1/2 Inches [40 mm] Screen advanced irrigation plastic filter
11/2" TAGline Amiad Irrigation water Filter, Weave Wire screen, Polyacetal body.
Filtration grade: 130 micron [120 mesh]
max. flow rate:
good water quality:     15.0 m3/h [66 gpm]
average water quality: 12.0 m3/h [53 gpm]
Connections: male threads, BSP or NPT
Amiad
6 to 10 dats
KP020B.TPT.0004
Weight: kg

2" inches TAGline Filter, Weave Wire screen

2 Inches [63 mm] Screen advanced irrigation plastic filter

2" TAGline Filter, Weave Wire screen, Polyacetal body.
Filtration grade: 130 micron [120 mesh]
max. flow rate:
good water quality:     22.0 m3/h [97 gpm]
average water quality: 17.0 m3/h [75 gpm]
Connections: male threads, BSP or NPT
Pressure inlet/outlet points included.

Amiad
6 to 10 dats
KP020B.UPT.0003
Weight: kg

2" S TAGline Filter, Weave Wire screen

3 Inches [63 mm] Screen advanced irrigation plastic super filter

2" Super TAGline Amiad Irrigation water Filter, Weave Wire screen, Polyacetal body.
Filtration grade: 130 micron [120 mesh]
max. flow rate:
good water quality:     25.0 m3/h [110 gpm]
average water quality: 18.0 m3/h [80 gpm]
Connections: male threads, BSP or NPT
Pressure inlet/outlet points included.

Amiad
6 to 10 dats
KP030B.TPT.0004
Weight: kg

3" inches TAGline Filter, Weave Wire screen

3 Inches [90 mm] Screen advanced irrigation plastic filter

3" TAGline Amiad Irrigation water Filter, Weave Wire screen, Polyacetal body Filtration grades: Filtration grade: 130 micron [120 mesh]
max. flow rate:
good water quality:     50.0 m3/h [220 gpm]
average water quality: 38.0 m3/h [170 gpm]
Connections: male threads, BSP or NPT
Pressure inlet/outlet points included.

Amiad
6 to 10 dats
AP007B.YP0.0003
Weight: kg

3/4 inches chemicals screen filter

3/4 inches chemicals screen filter, with nylon screen

3/4 inches chemicals screen filter, with nylon screen, optional weave-wire screens.
Max. working pressure 10.0 bar
01-0702-4232-0000
max. flow rate:
good water quality:     3.0 m3/h [13 gpm]
average water quality: 2.3 m3/h [10 gpm]
