Dripper Online Supertif PC

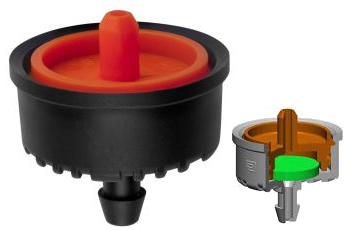

Supertif dripper On-line pressure compensated drip emitters

pressure compensated dripper
Applications: Citrus, Deciduous, Trees, Planters and Containers watering, Greenhouses, Nurseries, Sloping terrain, Where long driplines are required, Home gardens
Flow rates: between 1.1 l/h [0.6 gph] to 25 l/h  [6.6 gph]
Operating pressure: 0.6 - 3.5 bar [9 - 50 psi

Most products in the following category supplied in 100 un pack

Supertif Leaflet

Supertif design data

Supertif ND [no drain] leaflet

Supertif ND[no drain] design data

More details..

SUPERTIF [100 un pack]
+
03120
:   kg
!
supertif_pressure_compensated_dripper
Supertif PC Dripper
Supertif Flow-regulated on-line dripper

Supertif Flow regulated online dripper
Flow rates:  2.2 l/h [0.6 gph] to 25 l/h [6.6 gph]

Applications: Citrus, Orchards, Deciduous, Trees
Terrain conditions: flat and moderate slopes.

SUPERTIF ND [100 un pack]
+
03120
:   kg
!
supertif_nd_no_drain_dripper
PC No Drain Dripper
Supertif No Drain dripper

No-drain, flow-regulated on-line dripper

Flow rates: 1.1 l/h [0.3 gph] to 3.85 l/h [1.0 gph]
Drainage and run-off prevention.
Diaphragm Opening pressure 0.3 bar [4.4 psi]
Closing pressure .15 bar [2.2 psi]
Application: Citrus, Orchards, Deciduous, Trees.
Also for pulse irrigation or short irrigation intervals.
Terrain conditions: sloping terrain, lateral emptying is prevented

SUPERTIF SLB [100 un pack]
+
03120
:   kg
!
supertif_raised_barbed_outlet_dripper_slb
PC Raised Barbed Dripper
Supertif raised barbed outlet dripper

Supertif Flow-regulated on-line dripper with Raised Barbed outlet, matches 3x5 mm microtube
Available flow rates: 2.2 l/h [0.6 gph] and 3.85 l/h [3.85 gph]
Applications: Green houses, Nurseries, Garden pots. also for Vineyards and other pergola crops.

SUPERTIF SOL [100 un pack]
+
03120
:   kg
!
supertif_sol_barbed_side_outlet_dripper
PC Side Outlet Dripper
Supertif Side Barbed outlet dripper

Flow-regulated on-line dripper with Side Barbed outlet (SOL), matches 3x5
mm microtube,
Available flow rates: 2.2 l/h [0.6 gph] and 3.85 l/h [3.85 gph]
Applications: Green houses, Nurseries, Garden pots. also for Vineyards and other pergola crops. Help preventing trickling over the pipes. horizontal dripper.

SUPERTIF DRIPPER VACUUM [100 un pack]
+
03130/01
:   kg
!
supertif_vacuum_dripper
PC Vacuum Dripper
Vacuum dripper supertif

Flow-regulated on-line special vacuum dripper 8.0 l/h [ 2 gph]

Application: Underground drip systems, serve as an air valve for each drip lateral.
- When a free above ground outlet  is needed.
- Ensure drip lines emptying.
- Fits any exist drip system.

Base color Green - Cover color Green

Supertif special models
!

Supertif PC online Dripper special models:

SUPERTIF ND SLB [100 un pack]
+
03120
:   kg
!
supertif_nd_no_drain_barbed_slbdripper
Supertif ND SLB Dripper
SUPERTIF No Drain SLB

No-drain, flow-regulated on-line dripper with Raised Barbed Outlet, matches 3x5 mm microtube

Flow rates: 1.1 l/h [0.3 gph] to 3.85 l/h [1.0 gph]
Drainage and run-off prevention.

Diaphragm Opening pressure 0.3 bar [4.4 psi]
Closing pressure 0.15 bar [2.2 psi]
Application: Green houses, Nurseries, Garden pots.
Also for pulse irrigation or short irrigation intervals.

Terrain conditions: sloping terrain, lateral emptying is prevented,
and for vineyards and other pergola crops.

SUPERTIF ND SOL [100 un pack]
+
03120
:   kg
!
supertif_nd_no_sol_side_outlet_dripper
Supertif ND SOL Dripper
SUPERTIF No Drain side Outlet online dripper

No-drain, flow-regulated on-line dripper with Side Barbed outlet (SOL), matches 3x5 mm microtube,

Available flow rates: 2.2 l/h [0.6 gph] and 3.85 l/h [3.85 gph]

Diaphragm Opening pressure 0.3 bar [4.4 psi]
Closing pressure 0.15 bar [2.2 psi]

Applications: Green houses, Nurseries, Garden pots. also for  Vineyards and other pergola crops. Help preventing trickling over the pipes.
Also for Pulse irrigation or short irrigation intervals, Drainage and run-off
prevention. horizontal dripper.

Terrain conditions: sloping terrain, lateral emptying is prevented,
and for Vineyards and other pergola crops.

SUPERTIF ND HIGH [100 un pack]
+
03120
:   kg
!
supertif_ndh_no_drainhigh_dripper
PC NDH Dripper
Supertif No Drain in high pressure dripper

No-drain (higher pressure) , flow-regulated on-line dripper.

Flow rates: 1.6 l/h [ 0.4 gph] to 11.0 l/h [3.2 gph]

Drainage prevention high opening/closing pressure.
Diaphragm Opening  0.5 bar  [7.3 psi]
Closing pressure 0.35 bar [5.1 psi]

Application: Citrus, Orchards, Deciduous, Trees.
Also for Pulse irrigation or short irrigation intervals.
Terrain conditions: High sloping terrain, and where lateral emptying is prevented

SUPERTIF ND HIGH SLB [100 un pack]
+
03120
:   kg
!
supertif_nd_high_no_drain_slb_dripper
Supertif NDH SLB Dripper
Supertif No Drain, High pressure, raised barbed outlet dripper

No-drain in High pressure (NDH) , flow-regulated on-line dripper with Raised Barbed Outlet (SLB), matches 3x5 mm microtube

Flow rates: 1.1 l/h [0.3 gph] to 3.85 l/h [1.0 gph]
Drainage and run-off prevention.

Diaphragm Opening pressure 0.5 bar [4.4 psi]
Closing pressure 0.35 bar [2.2 psi]

Application: Green houses, Nurseries, Garden pots.
Also for Pulse irrigation or short irrigation intervals.

Terrain conditions: very sloping terrain, lateral emptying is prevented,
also for Vineyards and other pergola crops.

SUPERTIF ND HIGH SOL [100 un pack]
+
03120
:   kg
!
supertif_nd_high_no_sol_side_outlet_dripper
PC NDH SOL Dripper
Supertif No Drain, High pressure, Side barbed outlet dripper

No-drain in High pressure (NDH) , flow-regulated on-line dripper with Side Barbed outlet (SOL), matches 3x5 mm microtube.
Flow rates: 1.1 l/h [0.3 gph] to 3.85 l/h [1.0 gph]
Drainage and run-off prevention.
Diaphragm Opening pressure 0.5 bar [4.4 psi]
Closing pressure 0.35 bar [2.2 psi]

Application: Green houses, Nurseries, Garden pots.

Also for Pulse irrigation or short irrigation intervals.

Terrain conditions: very sloping terrain, lateral emptying is prevented,
also for vineyards and other pergola crops. horizontal dripper.

SUPERTIF 3.85 l/h 1 OUTLET THREADED [100 un pack]
+
03150-0002
:   kg
!
supertif_outlet_threaded_dripper
PC Threaded Dripper
Supertif No Drain, raised threaded outlet dripper

No-drain, flow-regulated on-line dripper 3.1 l/h [ 0.8 gph]

Base color Brown - Cover color Blue

Pulse irrigation in greenhouses and orchards
