automatic metering valves 900 d amv bermad

Automatic Shut-Off Valves

Automatic Shut-Off Water Metering Valves.
for use in small-scale automatic irrigation and refilling of small tanks.
Those units automatically delivers a preset quantity of water, after which it shuts itself off. This original design saves water by actually metering volume rather than just timing it. Sizes: 3/4" DN20 to 10" DN250

Features and Benefits
- Volumetric Shut-Off Valve
- No electricity required
- Simple design and high quality materials

- Easy installation and operation
- Can be installed in any position
- Extreme accuracy and dependability
- Maximum maintenance

- Metered water delivery during irrigation cycle unaffected by pressure fluctuations


3/4" Dos-O-Mat Automatic Metering Valve

1718
kg
    Delivery time:6-10 Days
Add to cart

DOS-O-MAT Automatic Metering Valve Model K
Body K 3/4” plastic, nominal size 20mm
Connection BSPT male thread A17180330 A17180530
Product Brochure           Operation instructions

  • Description
  • More

Technical Specifications:
Volume based irrigation device, consisting of a water meter, a volume control dial and a valve all contained in a single unit.

Dimensions:
Length 130mm [5.1"]  Width 102mm [4.0"]  Height 86mm [3/4"] Weight 0.33 Kg  [0.85 Lbs]

Performance:
Minimum Flow Rate 0.08 (m3/h) [0.35 Gpm]
Maximum Flow Rate 1.5 (m3/h) [6.61 Gpm]
Minimum Working Pressure  0.5 (bar) [7.25 PSI]
Maximum Working Pressure 10.0 (bar)  [145 PSI]
Maximum Working Temperature 60°C  [140 °F]

Dos-O-Mat, Arad model K, operation instructions,
Start-Up Operation.

NOTE: There must be available flow through the Dos-O-Mat valve and system to check and adjust valve. Insure that a downstream demand is created by opening field valves, sprinklers, etc. Please verify that the unit is installed according to the flow direction ! (arrow on the top body).
 1. Close main valve by fully turning setting knob (1) on top of the valve counter-clockwise until dial face is on zero exactly in front of the body arrow (2) and clicks.

2. Open fully the upstream gate valve but open gate the downstream gate valve only slightly (if applicable). Main valve should remain closed.

3. Slowly turn setting knob (1) on top of the valve.

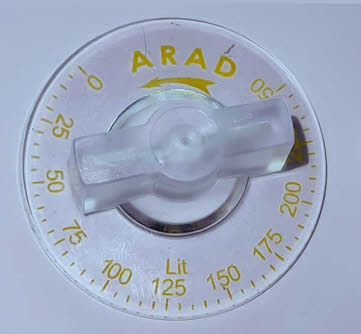

Turn it counter-clockwise to the desired volume on the dial face aligning the desired volume with arrow (2)
on the valve body.

4. Open the downstream gate valve fully (if applicable) and valve should open completely for normal
Operation.

 operation instructions dos-o-mat arad amv model k

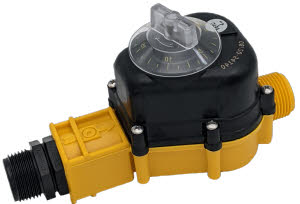

1" Dos-O-Mat Automatic Metering Valve

1691
kg
    Delivery time:6-10 Days
Add to cart

DOS-O-MAT Automatic Metering Valve Model K
Body K 1” plastic, nominal size 25mm
Connection BSPT male threads.

Product brochure
Operation instructions

  • Description
  • More

Technical Specifications:
Volume based irrigation device, consisting of a water meter, a volume
control dial and a valve all contained in a single unit.
Dimensions:
Length 200mm  Width 90mm  Height 115mm Weight 0.55 Kg.
Performance:
Minimum Flow Rate 0.5 (m3/h)
Maximum Flow Rate 5.0 (m3/h)
Minimum Working Pressure  0.5 (bar)
Maximum Working Pressure 10.0 (bar)
Maximum Working Temperature 60°C



Dos-O-Mat, arad model K, operation instructions,
Start-Up Operation.

NOTE: There must be available flow through the Dos-O-Mat valve and system to check and adjust valve. Insure that a downstream demand is created by opening field valves, sprinklers, etc. Please verify that the unit is installed according to the flow direction ! (arrow on the top body).
 1. Close main valve by fully turning setting knob (1) on top of the valve counter-clockwise until dial face is on zero exactly in front of the body arrow (2) and clicks.

2. Open fully the upstream gate valve but open gate the downstream gate valve only slightly (if applicable). Main valve should remain closed.

3. Slowly turn setting knob (1) on top of the valve.
Turn it counter-clockwise to the desired volume on the dial face aligning the desired volume with arrow (2)
on the valve body.

4. Open the downstream gate valve fully (if applicable) and valve should open completely for normal
Operation.

 operation instructions dos-o-mat arad amv model k






1 [3/4] Automatic Metering Valves - Standard Flow - Volumetric devise

BERMAD
MT1_&_3-4
kg
    Delivery time:6-10 Days
Add to cart

Automatic Metering Valves - AMV Standard Flow - Bermadon

Bermadon - 1" & 3/4"*  (*supplied also with 3/4" adaptors) Automatic Shut-Off Water Metering Valves, for use in small-scale automatic irrigation and refilling of small tanks. The Bermadon automatically delivers a preset quantity of water, after which it shuts itself off. This original design saves water by actually metering flow rather than timing it.
Standard Flow 0.5 - 5.0 m3/h
User's Manual

  • Description
waltman turbo type water meter

BERMADON 3/4 - 1 - 1.5 to 10" Automatic Metering Valves AMV

    Delivery time:6-10 Days
Product discontinuation notification BERMADON 1 & 3/4 Automatic Metering Valve
  • Description
  • More

Click here for alternative automatic shut-off valves products line:

Product discontinuation notification BERMADON 1" & 3/4" Automatic Metering Valve
The BERMADON is the first product ever manufactured by BERMAD, beginning in the 1960's.
In its current version, the BERMADON served mainly for residential landscape applications and
for some side animal farming applications.
In a changing world where requirements are becoming more technology oriented, semi-manual
control is unacceptable for irrigation systems on all scales.
As sales of the BERMADON dropped to below 1% of BERMAD turn-over, we have made (with a heavy heart) the following  decisions which are in line with the BERMAD Management policy of

Discontinuation p bermadon 3/4" and 1" MT Bermad
Product termination bermadon 3/4" and 1" MT Bermad
bermadon 3/4" and 1" MT Bermad, discontinue
bermadon 3/4" and 1" MT Bermad, stop production
bermadon 3/4" and 1" MT Bermad cease production
bermadon 3/4" and 1" MT Bermad, termination
bermadon 3/4" and 1" MT Bermad, production end.

focusing on the product platform:
1. Effective January 1st 2015, production and distribution of the BERMADON 1" & ¾"
Automatic Metering Valve are discontinued.
2. New orders will not be accepted after this date.
3. Inner spare-parts will not be available as the product was not meant to be maintained.

A full list of BERMADON product and parts numbers being discontinued can be found on the pages following this letter.
Please update your catalogs, and notify your relevant customers.


IR-1.5"-900/D [DN40] Automatic Metering Valve (AMV)

90015GCD0BP00008-350
kg
    Delivery time:6-10 Days
Add to cart
amv_900_d_1.5_dn40_bermad_20160322185738

1 1/2" AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-1.5"-900/D#0-G-C-BP-PG-PP

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Female threads, BPS or NPT pressure rating: 10 bar [145 psi]
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
technical data sheet

  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service

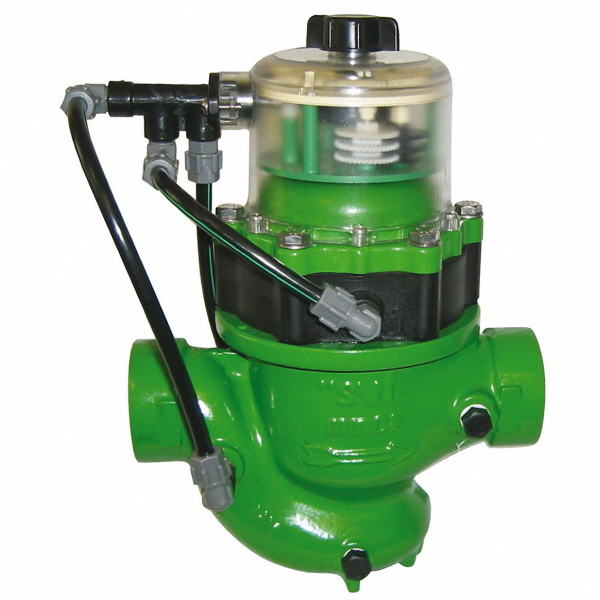

2" Automatic Metering Valve - Volumetric devise

BERMAD
90002GID0BP00008
kg
    Delivery time:6-10 Days
Add to cart
Automatic Shut-Off Metering 2" AMV Valve - Bermad

2" AMV Bermad Automatic Metering Valve
The Irrigationglobal.com by bermad Automatic  Shut-off Metering incorporate a diaphragm activated hydraulic control valve along with a vertical turbine water meter.
A mechanical Shut-Off mechanism controls the valve On/Off actions. This IR-900 Automatic devise enables volumetric control over irrigation systems without computers or electricity. The 900-DO automatically shuts-off when precisely delivered a dial preset volume of water.

Flow-Rate ranges:  0.8-25 m3/h [ 3.5 - 110 gpm]
Pressure rating: 10 bar [145 psi]
technical data sheet

  • Description
  • More
this devise is based on a waltman turbo type water meter along with a diaphragm hydraulic controlled valve

Features and Benefits
Integrated "All-in-One" Control Valve
Saves space, cost and maintenance
Easy Modification to Mechanical Drive Hydrometer
Adaptable to future computerized systems
Hydraulic Batch Control
Line pressure driven
Non-computerized quantity follow-up and control
Internal Inlet & Outlet Flow Straighteners
Saves on straightening distances
Maintains accuracy
Integrated Flow Metering Calibration Device
Measurement precision to ±2%
User-Friendly Design
Easy dose setting
Simple in-line inspection and service


Typical Applications
Semi-Automatic Irrigation Systems
Manual Irrigation - Intended for Computerization
Distanced and/or Elevated Plots
Volumetric Irrigation Systems

IR-3"R-900/D [DN80] Automatic Metering Valve (AMV)

90003RGCD0BP00008-1200
kg
    Delivery time:6-10 Days
Add to cart

3" threaded AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-3"R-900/D#0---G-I-BP-PG----

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Female threads, BPS or NPT pressure rating: 10 bar [145 psi]
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
16 Bar [232 PSI] model upon request.
technical data sheet

  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service

IR-3"-900/D [DN80] Automatic Metering Valve (AMV)

90003GCD0BD00008-1200
kg
    Delivery time:6-10 Days
Add to cart
amv_900_d_3_dn80_bermad_20160322185818

3" Flanged AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-3"-900/D#0-G-C-BD-PG-PP

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Flanged
ISO-16
ISO-10
ISO-14 (ISO-10/4 Holes)
ANSI-125
JIS-10
BST-D pressure rating: 10 bar [145 psi]  16 Bar [232 PSI] model upon request.
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
technical data sheet

  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service

IR-4"-900/D [DN100] Automatic Metering Valve (AMV)

90004GCD0BD00008-1200
kg
    Delivery time:6-10 Days
Add to cart
amv_900_d_4_dn100_bermad_20160322185900

4" AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-4"-900/D#0---G-C-BD-PG--PP--

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Flanged
ISO-16
ISO-10
ISO-14 (ISO-10/4 Holes)
ANSI-125
JIS-10
BST-D pressure rating: 10 bar [145 psi]  16 Bar [232 PSI] model upon request.
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
technical data sheet

  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service

IR-6"-900/D [DN150] Automatic Metering Valve (AMV)

90006GCD0BD00008-1200
kg
    Delivery time:6-10 Days
Add to cart
amv_900_d_6_dn150_bermad_20160322185911
6" AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-6"-900/D#0---G-C-BD-PG--PB--

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Flanged
ISO-16
ISO-10
ISO-14 (ISO-10/4 Holes)
ANSI-125
JIS-10
BST-D pressure rating: 10 bar [145 psi]  16 Bar [232 PSI] model upon request.
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
technical data sheet
  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service

IR-8"-900/D [DN200] Automatic Metering Valve (AMV)

90008GCD0BD00008-1200
kg
    Delivery time:6-10 Days
Add to cart
amv_900_d_6_dn150_bermad_20160322185926
8" AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-8"-900/D#0---G-C-BD-PG--PB--

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Flanged
ISO-16
ISO-10
ISO-14 (ISO-10/4 Holes)
ANSI-125
JIS-10
BST-D pressure rating: 10 bar [145 psi] 16 Bar [232 PSI] model upon request.
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
technical data sheet
  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service

IR-10"-900/D [DN250] Automatic Metering Valve (AMV)

90010GCD0BD00008-1200
kg
    Delivery time:6-10 Days
Add to cart
amv_900_d_6_dn150_bermad_20160322185935
10" AMV Bermad Integrated All-in-One Control Valve
- Saves space, cost and maintenance
- Easy Modification to Mechanical Drive Hydrometer
- Adaptable to future computerized systems
- Hydraulic Batch Control
- Line pressure driven
- Non-computerized quantity follow-up and control.
- IR-10"-900/D#0---G-C-BD-PG--PB--

Typical Applications
■ Semi-Automatic Irrigation Systems
■ Manual Irrigation - Intended for Computerization
■ Distanced and/or Elevated Plots
■ Volumetric Irrigation Systems
End connections: Flanged
ISO-16
ISO-10
ISO-14 (ISO-10/4 Holes)
ANSI-125
JIS-10
BST-D pressure rating: 10 bar [145 psi] 16 Bar [232 PSI] model upon request.
Minimum Operating Pressure: 0.5 bar [7 psi] Plastic Tubing & Fittings
technical data sheet
  • Description
  • More
Features and Benefits ■ Integrated All-in-One Control Valve ❏ Saves space, cost and maintenance ■ Easy Modification to Mechanical Drive Hydrometer ❏ Adaptable to future computerized systems ■ Hydraulic Batch Control ❏ Line pressure driven ❏ Non-computerized quantity follow-up and control ■ Internal Inlet & Outlet Flow Straighteners ❏ Saves on straightening distances ❏ Maintains accuracy ■ Integrated Flow Metering Calibration Device ❏ Measurement precision to ±2% ■ User-Friendly Design ❏ Easy dose setting ❏ Simple in-line inspection and service
