Spin Klin technology

Spin klin filtration,
- Holds disc stack for micron-precise filtration of solids.
- Corrosion-resistant spine and housing.
- Innovative depth filter design captures and retains large amounts of solids, for   longer filtration cycles.
- Short, efficient back-wash process - saves water and energy..
- Easy and simple operation.
- Long-term operation with little maintenance, spin clean

The Spin Klin® discs are stacked on the Spin Klin® spine. The discs are color-coded by micron size, and are assembled according to your water filtration requirements. The spine assembly has a spring compression unit and an internal piston which operate during alternate filtering or back-washing modes.

The spine assembly is specially designed to compress the micron-grooved discs inside a corrosion and pressure resistant housing. Inside the housing, a spring and the pressure difference compress the discs tightly during the filtration process, forcing the water to flow between the grooves and traps of the stacked discs.
spin klin

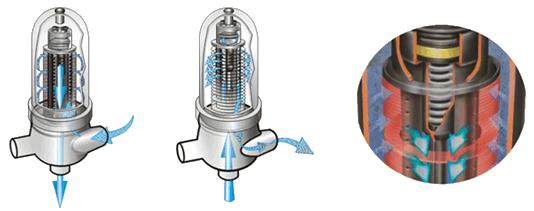

Spin Klin® Automatic Backflush Operation:

Activated by a pre-defined command (differential pressure or time) alternate units of the Spin Klin® system go into backwash operation. The inlet valve is shut as the drain is automatically opened.

During the backwash process, the compression spring is released and the pressure difference is eliminated. The spine piston climbs up, releasing the pressure on the discs. Tangential jets of clean water are hydraulically pumped at high pressure in the opposite direction through nozzles at the center of the spine. The discs spin free and clear, loosening the trapped solids. Solids are quickly and efficiently flushed out through the drain.

Arkal Guarantees reliable, accurate and efficient water filtration for years,
plus full support and service - worldwide.
