Saddle Water Meters 6" to 12"

147
Now Only
ex Shipping kg
    Delivery time:14 Days
Add to cart
  • Description
  • More

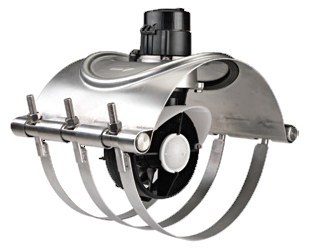

The 6" to 12" saddle meter is a new bulk meter developed for irrigation applications.
The saddle meter can be installed easily while maintaining precise
hydraulic characteristics.
saddle water meters arad brochure

Technical Specifications
- Max. Working Pressure 10 bar = 150 psi
- Max. Liquid Temperature 60°C
- Measuring units M3, U.S. Gallon, cu.ft,
- Register ER - Materials Stainless steel
- Oval hole sizes As per Specifications

Max. Flowrate
(GPM)

Max. Flowrate
(m3/h)

Nominal size

inch

mm

1800

410

6"

150

3200

730

8"

200

6200

1400

10"

250

8800

2000

12"

300

Features:
• Can be installed on any existing pipe PVC, Cement, cast iron
• Easy to install - no need for flanges
• High accuracy while using the WSTsb measuring unit
• LCD programmable registers (ER) for different measuring units, outputs and pipe sizes
• Suitable for both retrofit and brand new installations
• Ideal solution for agriculture and turf irrigation applications

Model: Nominal size

6"   150mm

8"   200mm

10"  250mm

12"  300mm

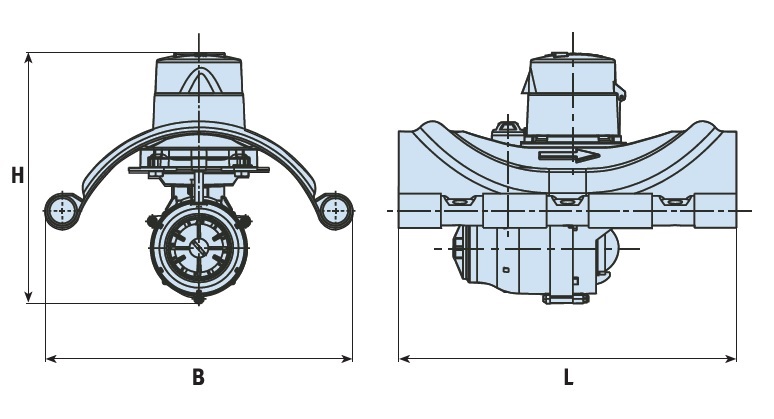

L - Length [mm]
Without couplings

280

320

325

320

B - Width [mm]

260

295

350

400

H - Height [mm]

240

240

315

340

Weight  [kg]

7

7

9.5

10.5



Accuracy between
Qt
& Qmin



Accuracy

between

Qmax
 & Qt

Smallest
readable unit
(liter)

Max.
register capacity

(m3)

Min. Flowrate
(m3/h)

Transitional
Flowrate
(m3/h)

Nominal
Flowrate
(m3/h)

Max. Flowrate
(m3/h)

Model
Saddle

Nominal size

inch

mm

+-5%

+-2%

10

107

5

20

250

410

6"

150

100

107

7

30

450

730

8"

200

100

107

10

40

750

1400

10"

250

100

107

18

60

1000

2000

12"

300
