Kit includes: Sprinkler, Meteor connection and holder, 120 cm [4 feet] 9mm x13mm tube, 9 x13 start connector, 9 x 13 tack connector, stake is not included in that kit
OPTIONALS:
1. Galvanized metal stakes Ø8 mm x 120 cm [Ø5/16" x 4 feet]
2. Flow regulator
Applications:
* High water stream trajectory: On metal rods
- For vegetables in open fields
- Ideal for overhead frost protection in fruit orchards
* Low water stream trajectory: On stakes or solid risers:
- For under-canopy irrigation in widely-spaced fruit orchards
and in banana plantations
Super XL performance table..
Super XL sprinkler leaflet

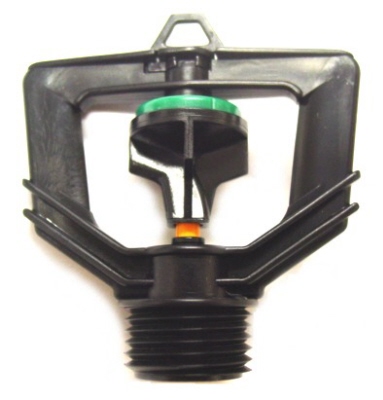

Super XL Midi Sprinkler Design Data
provides flexible installation options and numerous additional features
Main features:
- Effective water throw radius: up to 8.0 m at 3.0 bar
- Available with pressure regulator
- Easy assembling & dismantling
- Protected against UV degradation
- Resistant to chemicals and fertilizers commonly used in agriculture
- May be mounted on 1/2" PVC riser or assembled with Plastro’s Meteor collar adaptor on metal rods or plastic stakes.
Specifications:
- 5 color-coded nozzles for easy flow rate identification
- Flow rates at 2.5 bar : 190-410 lph
- Recommended operating pressure range:
2.5-3.5 bar* (at sprinkler base)
* Violet nozzle: 3.0-3.5 bar
- Available with 3/8" or 1/2" THM base
Four rotor types:
* High stream trajectory:
- Black rotor + blue cover for violet & yellow nozzles
- Black rotor + green cover for brown, orange & gray nozzles
- Low stream trajectory:
- Gray rotor + blue cover for violet & yellow nozzles
- Gray rotor + green cover for brown, orange & gray nozzles
Applications:
* High water stream trajectory: On metal rods:
- For vegetables in open fields
- Ideal for overhead frost protection in fruit orchards
* Low water stream trajectory: On stakes or solid risers:
- For under-canopy irrigation in widely-spaced fruit orchards and in banana plantations
