Mist Sparayers Rondo & Tornado

Rondo and Tornado Mist Sprayers, Foggers
rondo & tornado mist sprayers

Mist Sprayers Rondo & Tornado

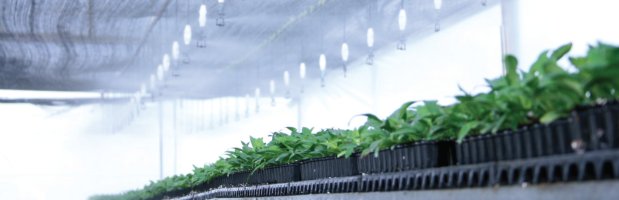

The Rondo mist sprayer is ideal for irrigating during seed germination and cutting propagation. And the mist produced from both the Tornado and the Rondo mist sprayers can be used as climate control or to affect the humidity in greenhouses.

The Rondo mist sprayer produces an average droplet size of 150 microns and is suitable for inverted or upright installations. The Tornado delivers an uninterrupted 360 degree spray pattern and an average droplet size of 140 microns. Additionally, the Tornado uses a vortex flow mechanism, which reduces the possibility of clogging.

For your misting needs, look no further than the Rondo or the Tornado mist sprayers. takes precision manufacturing to ensure the uniformity of internal diameter and wall thickness that delivers the kind of performance demanded by growers.



Rondo Mist Sprayer:



Tornado Turbulent Mist Sprayer:

Flow rates at 44 PSI: 12, 16 gph
Operating pressure range: 36-58 PSI
Ultra conic female nozzle - matches anti-leak mini-valve with male outlet. Average droplet size: 150 micron
For operating pressure above 50 PSI, use anti-leak mini-valve



4 color-coded flow rates at 43 PSI: 1.6, 2.0, 2.8, 3.5 gph
Operating pressure range: 36-50 PSI
Average droplet size: 140 micron
Vortex flow mechanism minimizes clogging

Applications



Rondo Mist Sprayer:
Cutting propagation in nurseries


Rondo & Tornado Mist Sprayer Leaflet



Tornado Turbulent Mist Sprayer:  Increasing humidity in gardens,
mounted upright on a plastic stake,
cutting propagation in nurseries
> mounted in inverted position




!

Rondo Mist Sprayer, Complete Set [50 un pack]

John Deere
04210
Weight: kg
+Shipping

Rondo Mist sprayer

Flow rates:
Black nozzle 0.85 mm  47 l/h [12.4 gph]
Blue nozzle 1.0 mm 61 l/h [16.1 gph]

Minimum working pressure:
with Anti-leak valve: 3.5 Bar [50 PSI]



Applications:
Cutting propagation in nurseries and grow houses.

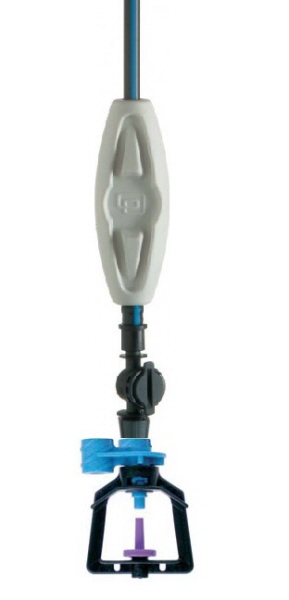

Rondo Mist sprayer complete station, includes:
Ultra Conic Rondo Mist Sprayer
Anti-Leak valve
35 cm [14"] of PVC 4X7 tubeRondo mist sprayer head
Blue barb coupling
Fixing weight


Rondo & Tornado Mist Sprayer Leaflet, Metric

Rondo & Tornado  Mist Sprayer Leaflet, US

Rondo & Tornado Mist Sprayer Design Charts
