TAF Series Self-cleaning Water Filters Amiad_

TAF Series self-cleaning plastic screen filters

TAF Series self-cleaning water screen filters. Innovative self-cleaning high quality plastic filter for a wide variety of applications

TAF Series Filtration and Self Cleaning features:
• Unique electric drive mechanisms
• Automatic flushing according to differential pressure and/or time
• Option for continuous flushing
• Low power consumption
• No interruption of downstream flow during flushing
• Electronically monitored cleaning with flexible control options
• Applications: Water supply systems, cooling water, wastewater treatment, Innovative self-cleaning high quality plastic filter for a wide variety of applications.

TAF Series Filters Water Treatment Product Brochure
TAF Spare parts catalog amiad
TAF 500 Screens Ordering
TAF 750 Screens Ordering

Now Only
ex Shipping kg
    Delivery time:7-14 Days
Add to cart

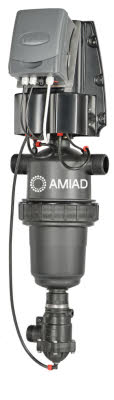

2" TAF 500 Innovative self-cleaning high quality plastic filter for a wide variety of applications, including molded screen and a flushing controller, amiad.
Screen area :800 sq.cm. [124 Sq. Inch]
Maximum flow rate* 25 m³/h [110 gpm] Inlet/Outlet diameter 2"/50 mm Standard filtration degrees 500, 300, 200, 130, 100, 80, 50, 25, 10 micron Min*. working pressure 1.5 bar [22 psi]  *Can be lower if pressure is increased for flushing Max. working pressure 8 bar (116 psi) Scanaway flushing mechanism with electrical motor.Max. working temperature 60°C (140 °F)Electrical Supply 110 or 220 VAC TAF 500 Technical Brochure
More details
Now Only
ex Shipping kg
    Delivery time:7-14 Days
Add to cart

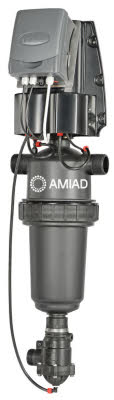

2" TAF 750 Innovative self-cleaning high quality plastic filter for a wide variety of applications, including molded screen and a flushing controller, amiad.

Screen area : 1200 sq. cm. [200 Sq. Inch]
Maximum flow rate* 25 m³/h [110 gpm] Inlet/Outlet diameter 2"/50 mm Standard filtration degrees 500, 300, 200, 130, 100, 80, 50, 25, 10 micron Min*. working pressure 1.5 bar [22 psi]  *Can be lower if pressure is increased for flushing Max. working pressure 8 bar (116 psi) Scanaway flushing mechanism with electrical motor. Max. working temperature 60°C (140 °F) Electrical Supply 110 or 220 VAC TAF 750 Technical Brochure
Maximum flow rate* 25 m³/h [110 gpm] Inlet/Outlet diameter 2"/50 mm Standard filtration degrees 500, 300, 200, 130, 100, 80, 50, 25, 10 micron Min*. working pressure 1.5 bar [22 psi]  *Can be lower if pressure is increased for flushing Max. working pressure 8 bar (116 psi) Scanaway flushing mechanism with electrical motor. Max. working temperature 60°C (140 °F) Electrical Supply 110 or 220 VAC TAF 750 Technical Brochure

More details
Now Only
ex Shipping kg
    Delivery time:7-14 Days
Add to cart

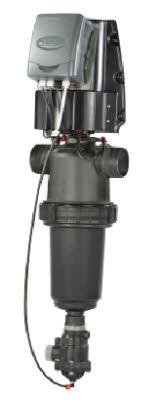

3" TAF 750 Innovative self-cleaning high quality plastic filter for a wide variety of applications, including molded screen and a flushing controller, amiad.

Screen area : 1200 sq. cm. [200 Sq. Inch]
Maximum flow rate* 25 m³/h [110 gpm] Inlet/Outlet diameter 2"/50 mm Standard filtration degrees 500, 300, 200, 130, 100, 80, 50, 25, 10 micron Min*. working pressure 1.5 bar [22 psi]  *Can be lower if pressure is increased for flushing Max. working pressure 8 bar (116 psi) Scanaway flushing mechanism with electrical motor. Max. working temperature 60°C (140 °F) Electrical Supply 110 or 220 VAC TAF 750 Technical Brochure

More details

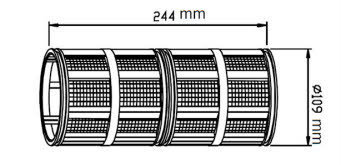

Waeavwire Screens for 2" TAF 500 - 800 SQ.CM. SST 316

amiad
700101-000xxx
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

WEAVEWIRE SCREEN S/ST316L 800 SQ.CM
10 MIC to 500 MIC   [124 Sq. Inch]
2" TAF-500 With NBR SEALS O-rings

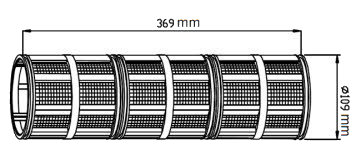

Waeavwire Screen for 2" & 3" TAF 750 - 1200 SQ.CM. SST 316

amiad
700101-75x00xxx
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

WEAVEWIRE SCREEN S/ST316L
1200 SQ.CM [200 Sq. Inch]
10 Micron to 500 Micron for  2" & 3" TAF 750 With NBR SEALS O-rings

ex Shipping kg
    Delivery time:2 to 3 days
Add to cart
Cover Seal O-Ring P2-129 Amiad 2" & 3" Plastic Screen Filters
Cover Seal O-Ring P2-129 for Amiad Screen filters [2"T - 2"TS - 3"T]  5 pack. PARKER O-RING 2-437 NBR 50 SHORE NO FLASH WELL LUBRICATED For amaid manual and semi automatic (scanaway
 & brushaway) screen filters.
More details

Tightening Nut (for Amiad T filters) for amiad 2 & 3 filters

amiad
710101-000551
ex Shipping kg
    Delivery time:2 to 3 days
Add to cart
Tightening Nut for Amiad 2" & 3" T Filters
Tightening Nut for Amiad 2" and 3" T filters
Old catalog number 710103-000544
