Fertilizer Injectors

Fertilizer injectors Amiad, From $599 Your key to higher yields, healthier crops.

Fertilizer injectors in irrigation system, Hydraulic injectors.

  • Water driven chemical Fertilizers injectors that need no external power supply
  • Does not cause pressure loss in the irrigation line.
  • Operation begins at low pressure.
  • Simple operation, adjustments and maintenance.
  • Chemical resistant To nearly all known chemicals used in agriculture.
  • Irrigation chemical injection flow rate, up To 640 liters/hr [2.8 US GPM]
  • Minimum pressure   0.5 bar; 7 psi  Maximum pressure 8 bar; 115 psi
  • Water consumption ~ 3 times the quantity of the chemical injected.

amiad fertilizers injectors, operation & maintenance complete guide

fertilizer injector more information                      spare parts for amiad injectors


Fertilizer Injectors product line includes basic 2 models:
Open tank suction type and gravity feed type.



More details
ex Shipping kg
    Delivery time:Next day
Add to cart
Gravity feed type injector, suction head is connected to a bottom of an elevated chemicals tank. Manual cut-out.

For drip and micro irrigation systems.
Injector control: By a built-in normally closed hydraulic valve, to be controlled remotely.

More details
ex Shipping kg
    Delivery time:Next Day
Add to cart

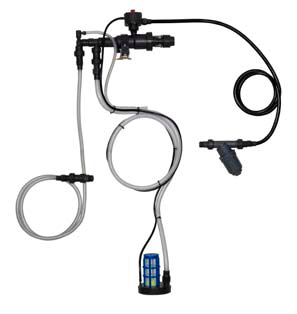

Suction type injector, suction head inserted to tank top.

 injection flow rate, up To 320 liters/hr [1.4 GPM]
For drip and micro irrigation systems.
fertilizers pump
Injector control: Manual red button on/off operation.
Automatic cutoff when chemical level is too low
[11 Lbs]

More details
ex Shipping kg
    Delivery time:2-6 Days
Add to cart
fertilizer injector gravity feed 4-02 manual cutout usa
Gravity feed type injector, suction head is connected to a bottom of an elevated chemicals tank. Along Special Manual cut-out.
Usually only for USA usage

For drip and micro irrigation systems.
Injector control: Manual.

This is a special and unique assembly for a gravity feed injector along with manual cut-out

More details
ex Shipping kg
    Delivery time:Next Day
Add to cart

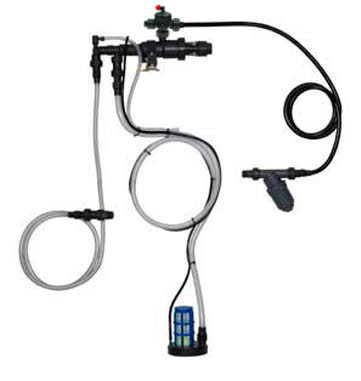

Suction type injector, suction head inserted to tank top. Hydraulic valve remote controlled command the injector operation.

For drip and micro irrigation systems.
fertilizers pump
Injector control: Hydraulic (automatic) and Manual red button on/off operation.
Automatic cutoff when chemical level is too low
[11 Lbs]

More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Duplex Suction feed type injector, suction head is inserted from tank top.

For drip and micro irrigation systems.
Injector control: No built-in control, to be controlled by a manual or hydraulic valve.
Chemical injection flow rate, up To 640 liters/hr [ 2.8 US gpm] according To mains pressure.
17.5 Lbs.]    OLD CAT. 08-4031-0000

More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Duplex Gravity feed type injector, suction head is connected to a bottom of an elevated chemicals tank.

For drip and micro irrigation systems.
Injector control: No built-in control, to be controlled by a manual or hydraulic valve. Fertilizer pump.
Chemical injection flow rate, up To 640 liters/hr [ 2.8 US GPM] according To mains pressure.
[16.5 Lbs.]

More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Suction type injector, suction head is inserted from tank top.
This Item allow: Manual control, automatic shut-of, Hydraulic remote control.

 injection flow rate, up To 320 liters/hr [1.4 GPM]
Hydraulic remote control by a 3/4" Hydraulic valve.
For drip and micro irrigation systems.
fertilizers pump
Injector control: Manual red button on/off operation.
Automatic cutoff when chemical level is too low.
[11 Lbs]   OLD Amiad CAT. 08-4010-0000

More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Suction type injector, suction head is inserted from tank top.

Electrically controlled by a 3/4" Electric NC 24 AC controlled valve.
For drip and micro irrigation systems.
fertilizers pump
Injector control: Manual red button on/off operation.
Automatic cutoff when chemical level is too low.
[11 Lbs]   OLD Amiad CAT. 08-4010-0000

More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Gravity feed type injector, suction head is connected to a bottom of an elevated chemicals tank.

For drip and micro irrigation systems.
Injector control: By a built-in normally closed hydraulic valve, to be controlled remotely.
OLD CAT. 08-4020-0000

More details

Fertilizer Injector-Gravity Hydraulic valve control and pulse transmitter

Amiad
ARHAMD.00012
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Gravity feed type injector, suction head is connected to a bottom of an elevated chemicals tank.

For drip and micro irrigation systems.
Injector control: By a built-in normally closed hydraulic valve, Also include a pulse electronic transmitter output, to be controlled remotely.
OLD CAT. 08-4020-1100

Fertilizer Injector - Suction Hydraulic valve control and pulse transmitter

Amiad
ARHAMD.00033
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
Suction type injector, suction head is inserted from tank top.

Automatic cutoff when chemical level is too low
Injector control: By a built-in normally closed hydraulic valve, Also include a pulse electronic transmitter output, to be controlled remotely.
This model does not include the: Manual red button on/off operation nor the automatic cutoff when chemical level is too low.
OLD CAT. 08-4010-1100

Spare parts Amiad Chemicals & Fertilizers Injectors


Spare parts for Amiad Chemicals and Fertilizers Injectors.  Download: amiad fertilizers injectors, operation & maintenance complete guide
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
MOTOR SEALS SET FOR FERTILIZER INJECTOR-VITON

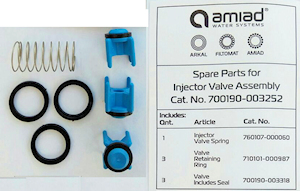

Spare Parts Set for injector valve assembly fertigation by amiad, includes:
1 x Injector Valve Spring 760107-000060
3 x Valve Retaining Ring 710101-000987
3 x Valve Includes Seal 700190-003318
For maintenance of the Amiad injectors
valve assemblies
More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
For Gravity feed type fertilizer injector body & cylinder no tubing etc.

CYLINDER HOUSING+MOTOR & PUMP ASSEMBLY COMPLETE Gravity feed type fertilizers injector body & cylinder parts  no tubing etc. Fertilizers no piping etc. kit assembly gravity feed descripoption
More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
For Open tank suction type
fertilizers injector body no tubing

CYLINDER HOUSING+MOTOR & PUMP ASSEMBLY COMPLETE Suction Type Fertilizers injector body no tubing. Fertilizers no piping etc. kit assembly descripoption
More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
MOTOR SEALS SET FOR FERTILIZER INJECTOR-VITON

Motor seals Set for fertilizers Injector and Filter includes:
1 x Motor Seal-Large 770101-000962
1 x Motor Seal-Small 770101-000961
1 x Pump Seal-Viton 770104-000179
1 x Bearing Disc 770190-003313

Old Pump seal (rubber) 770105-000001 was replaced with new Viton seal part of the (this) 700190-003253
Set

MOTOR SEALS SET FOR FERTILIZER INJECTOR-VITON spare part for amiad fertilizers and chemicals injector

More details
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

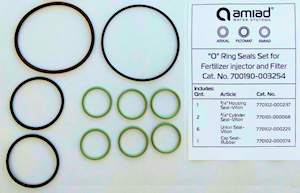

SET OF O-RINGS FOR FERTILIZERS.INJECTOR
O-Ring seals Set for fertilizers Injector and Filter includes:
1 x 3/4" Housing Seal-Viton 770102-000237
2 x 3/4" Cylinder Seal-vitonn 770101-000068
6 x Union Seal-Viton 770102-000225
1 x Cap Seal-Rubber 770102-000074
All other seals for maintenance of the injectors beside the motor seals that are offered separately.
More details

MOTOR SEAL SMALL 10 units pack

Amiad
710101-000961
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

MOTOR SEAL SMALL

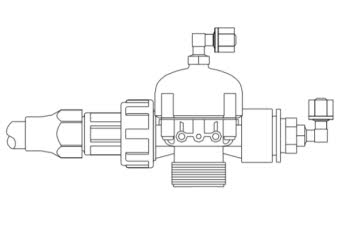

3/4" NC HYDRAULIC CUTOUT amiad

amiad
700190-003248
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
nc hydraulic valve (cut-out)
amiad fertilizers injector spare parts
NC HYDRAULIC CUTOUT fertilizers injector spares amiad

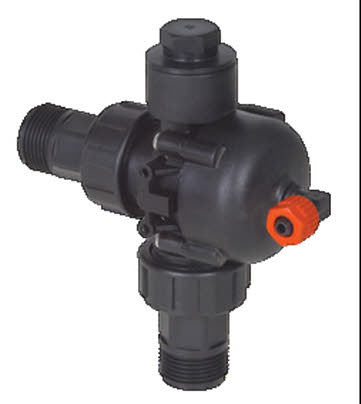

3/4" x 8 mm NC hydraulic valve fertigation amiad

amiad
300004-000003
ex Shipping kg
    Delivery time:2-6 Days
Add to cart
¾" NC hydraulic valve 300004-000003 amaid fertigation
3/4" x 3/4" x 8 mm - Normally Close Hydraulic Valve fertilizer injector hydraulic cut-off. Also serve as one of the best NC existing 3/4" hydraulic valves.
3/4" x 3/4" x 8 mm Normally Close Hydraulic Valve for amiad fertigation applications and remote hydraulic cut-off

PUMP SEAL VITON 10 pack

Amiad
770104-000179
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

PUMP SEAL VITON 10 Pack

MOTOR AND PUMP ASSEMBLY COMPLETE

amiad
700190-003249
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
MOTOR AND PUMP ASSEMBLY COMPLETE fertilizers injector spares amiad

FERTILIZER SUCTION ASSEMBLY

amiad
700190-003301
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
FERTILIZER SUCTION ASSEMBLY fertilizers injector spares amiad

AUTOMATIC AIR RELEASE ASSEMBLY

amiad
700190-003299
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
AUTOMATIC AIR RELEASE ASSEMBLY fertilizers injector spares amiad

For Mike Davis Next 7 Items

201000
kg

amiad fertilizers injector spare parts
Now Only
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
kit_injector_valve_house_air_rel_amiad_700190-005158

Injection valve housing assembly incl. Air- Release valve for gravity amiad gravity feed fertilizers injection pump.

Item No. DescriptionQuantity

8

700190-003256

COUPLER FOR 20MM PIPE ASSY

1

7

700190-005782

FERTILIZERS CONNECTOR 1"MX3/4"F+VALVE RPP

1

6

700190-003255

COUPLER FOR 16MM PIPE ASSY

1

5

700190-005158

SET INJECTOR VALVE HOUS AS BLUE GRAVITY TYPE

1

4

780104-001604

ADAPTOR 1"F 25MM PE PLASSIM

1

3

710103-004196

CAP FERTILIZER INJECTOR PBT F/CYLINDER BODY

1

2

700190-003249

MOTOR ASSEMBLY COMPLETE

1

1

700190-003258

CYLINDER HOUSING ASSY

1


More details

CYLINDER HOUSING

amiad
700190-003258
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

amiad fertilizers injector spare parts
CYLINDER HOUSING fertilizers injector spares amiad

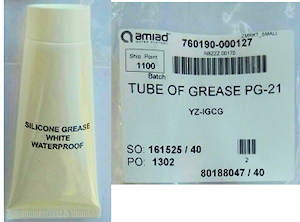

TUBE OF GREASE PG-21 100CC [3.4 OZ]

amiad
760190-000127
ex Shipping kg
    Delivery time:6-10 Days
Add to cart
760190-000127_tube_grease_pg-21_fertilizers_injector_amiad
TUBE OF GREASE PG-21 FOR AMIAD FERTILIZER INJECTOR 100CC [3.4 OZ] Molykote by Dupont pg-21
TUBE OF GREASE PG-21 spare part for amiad fertilizers and chemicals injector

BALL PVC 40MM CLEANING FOR SUCTION HEAD

amiad
770104-000268
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
BALL PVC 40MM CLEANING FOR SUCTION HEAD spare part for amiad fertilizers and chemicals injector

PARKER O-RING 2-018 VITON 75 SHORE GREEN DOT NO FLASH

amiad
770102-000225
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
PARKER O-RING 2-018 VITON 75 SHORE GREEN DOT NO FLASH spare part for amiad fertilizers and chemicals injector

HELICAL SPRING FOR INJECTOR VALVE FERTILIZER PUMP FREE LENGTH:32MM WIRE DIAMETER:0.7MM [3 un pack]

amiad
760107-000060
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
HELICAL SPRING FOR INJECTOR VALVE FERTILIZER PUMP FREE LENGTH:32MM WIRE DIAMETER:0.7MM S/ST316L spare part for amiad fertilizers and chemicals injector [ 3 units pack]

VALVE (INCL.SEAL)

amiad
700190-003318
ex Shipping kg
    Delivery time:6-10 Days
Add to cart

amiad fertilizers injector spare parts
VALVE (INCL.SEAL) spare part for amiad fertilizers and chemicals injector

Pulse Transmitter + Control Box Assembly Amiad Injectors

amiad
700190-003278
ex Shipping kg
    Delivery time:5-7 Days
Add to cart


PULSE TRANSMITTER+CONTROL BOX ASSY for Amiad Fertilizers injection pumps

PULSE TRANSMITTER+CONTROL BOX Assembly for Amiad Chemicals and Fertilizers Injection pumps

ex Shipping kg
    Delivery time:5-7 Days
Add to cart



Flow regulator capsule, 10 to 80 l/hr [5.5 to 42 GPH] assembly for amiad Injectors

Flow regulator capsule, 10 to 80  l/hr [5.5 to 42 GPH] assembly for amiad Chemicals and Fertilizers Injectors.Including O-ring. Flow rate alternatives for amiad fertilizers injectors: Red    10 l/h [5.5 gph]Yellow 20 l/h [11 gph]Green  40 l/h [21 gph]Blue   60 l/h [32 gph]Brown  80 l/h [42 gph]
More details

Ball Valve 3/4" DN20 PN10 Amiad

amiad
300005-000001
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
3/4" Plastic Ball Valve AC 10 bar Black Amiad

3/4" DN20 Ball Valve AC 10 bar Black

10 spare parts for injector
amiad
10-parts-fert-tewmp
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

10 Assorted spare parts for amiad Injectors
1 x AUTOMATIC AIR RELEASE ASSEMBLY 700190-003299 $55.331 x PIPE 3/8" PVC TRANSPARENT TECHNOFLEX 790208-000005 $2.531 x RACCORD NUT RPP BLACK 710101-000986 $0.801 x 3/4" RACCORD NIPPLE WITH O-RING SEAL ASSY 700190-003316 $2.671 x INJECTOR VALVE HOUSING ASSEMBLY BLUE 700190-003306 $23.201 x AIR RELEASE PIPE 8/12 TRANSP.-60CM ASSY 700190-003300 $3.731 x FLOW REGULATOR ASSEMBLY W/ONE CAPSULE 80 L/H 700190-003275 $115.271 x SPARE PARTS FOR INJ.VALVE ASSY 700190-003252 $13.001 x SET OF O-RINGS FOR FERT.INJECTOR ASSY 700190-003254 $9.331 x 1"C Filter, Blue, 300mic 50mesh 010001-000050 $37.50
More details
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
INJECTION PIPE FOR 4-01 (2M =~80") or 4m =~160"] INCL.FITTINGS Assembly for Amiad Fertilizers Injectors

INJECTION PIPE FOR 4-01 (2M =~80") or 4m =~160"] INCL.FITTINGS Assembly for Amiad Fertilizers InjectorsSuction type injectors
More details

PIPE 3/8" PVC TRANSPARENT TECHNOFLEX

amiad
790208-000005
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

PIPE 3/8" PVC TRANSPARENT TECHNOFLEX for Amiad Fertilizers Injectors

FERTILIZERS NIPPLE 16 MM RPP BLACK

amiad
710101-000990
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

FERTILIZERS NIPPLE 16 MM RPP BLACK for Amiad Fertilizers Injectors


An irrigation concept that serve the irrigation community, called: fertigation. A natural move forward in irrigation technique, fertigation (from the words fertilizers and irrigation) is an excellent method of applying chemicals and fertilizers to crops via the irrigation system water, mainly in drip ad other micro irrigation systems. The need for fertigation derives from the fact that traditional methods of fertilization are only partially effective and leave a lot to be desired. At the time the fertilizer is distributed, it may be too strong. For the delicate roots of the young saplings, causing then irreparable damage. Or on the other hand, it may be too weak, and thus useless. Most important however, is the fact that spread or sprayed fertilizer remains near the surface, hardly reaching the root tips and root hairs - the points of greatest absorption. Fertigation systems leaflet
More details
