COMPACT, ALL-IN-ONE PACKAGING
Each NetaKit system comes in a single, compact package that includes all of the “hardware” needed to get things up and running
– valves, filters, connectors, dripperlines/sprinklers, distribution pipes and accessories. Equipped with a detailed yet user-friendly
instruction manual along with system-specific irrigation information, NetaKit ensures easy, rapid and efficient installation.
Working across a range of low and high pressures, NetaKit systems utilize diverse energy sources, including solar/diesel,
electrical pump and gravity, to keep energy costs down. Part of Netafim’s market-leading line of drip- and micro-irrigation
solutions, NetaKit also increases water savings while promoting sustainable productivity.
HIGHLIGHTS
■ Comprehensive offering
■ Efficient, compact packaging
■ All-in-one system “hardware”
■ Easy-to-install units
■ Low-cost energy sources
■ Low-risk, field-proven systems
■ Multi-application, -crop, -size plot coverage
BENEFITS
■ Higher quality yields
■ Greater water savings
■ Lower energy costs
■ Increased cost efficiency

DripK Drip irrigation system for open-field vegetable/row-crop plots and orchards
ranging from 250 m² to 10000 m² (1.0 ha)
SprinK Sprinkler system for open-field vegetable/row-crop plots of up to 1.0 ha
HeadK Complete head control system for drip, sprinkler/micro-sprinkler and other
irrigation systems for open-field, orchard and greenhouse crops
NutriK Complete Nutrigation™ systems for open-field and orchard crops.

NETAKIT 2019 PRODUCT CATALOG

Products appearing in this catalogue may be covered by one or more of the following US Patent Nos. 6027048, 6206305 and other U.S.
patents pending or corresponding issued or pending foreign patents
All rights are reserved. You are specifically prohibited and not allowed to reproduce, copy, duplicate, manufacture, supply, sell, hire, distribute
or adapt all or any part of this publication including any packaging. Netafim™, are trademarks of Netafim™ Ltd., registered in the U.S. and
other countries.
We endeavor to provide accurate, quality and detailed information. However we cannot accept liability for your reliance on the provided
information and you are advised to independently seek professional advice from Netafim™ and/or its authorized representatives. There is no
undertaking by us that the provided information or any part thereof is accurate, complete or up to date .
Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation.
Netafim™ assumes no responsibility with regard to the performance or use of these products.
In no event shall Netafim™ be liable for any indirect, incidental, special or consequential damages.

Netafim™, the pioneer and global leader of drip- and micro-irrigation, understands the growing complexity of the microirrigation
industry. On the one hand, growers need more and more solutions to meet their diverse applications, crop types
and plot sizes. On the other hand, they are finding it difficult to navigate through the seemingly endless list of available
choices and suppliers.
COVERING ALL IRRIGATION BASES
Recognizing these rapidly-evolving industry changes, Netafim offers NetaKit. A comprehensive, all-in-one irrigation solution
for growers of all sizes, NetaKit is redefining irrigation-system acquisition. Bringing several Netafim systems under one
umbrella, NetaKit simplifies the search, purchase and installation process for growers, providing them with a user-friendly,
cost-efficient single-vendor offering that meets their unique requirements.
COMPACT, ALL-IN-ONE PACKAGING
Each NetaKit system comes in a single, compact package that includes all of the “hardware” needed to get things up and running
– valves, filters, connectors, dripperlines/sprinklers, distribution pipes and accessories. Equipped with a detailed yet user-friendly
instruction manual along with system-specific irrigation information, NetaKit ensures easy, rapid and efficient installation.
Working across a range of low and high pressures, NetaKit systems utilize diverse energy sources, including solar/diesel,
electrical pump and gravity, to keep energy costs down. Part of Netafim’s market-leading line of drip- and micro-irrigation
solutions, NetaKit also increases water savings while promoting sustainable productivity.
HIGHLIGHTS
■ Comprehensive offering
■ Efficient, compact packaging
■ All-in-one system “hardware”
■ Easy-to-install units
■ Low-cost energy sources
■ Low-risk, field-proven systems
■ Multi-application, -crop, -size
plot coverage
BENEFITS
■ Higher quality yields
■ Greater water savings
■ Lower energy costs
■ Increased cost efficiency
NETAKIT™
NETAKIT SYSTEMS
Designed to address the varied needs of Netafim customers identified over
time, NetaKit comprises several systems covering different parts of the
irrigation process across myriad applications, crops and plot sizes:
DripK Drip irrigation system for open-field vegetable/row-crop plots and orchards
ranging from 250 m² to 10000 m² (1.0 ha)

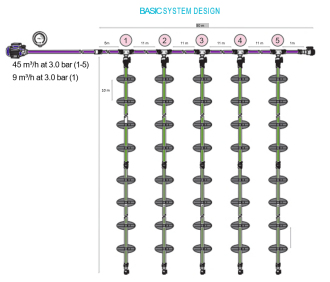

SprinK Sprinkler system for open-field vegetable/row-crop plots of up to 1.0 ha

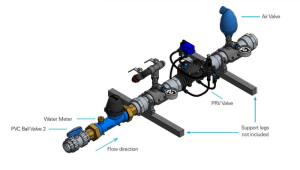

HeadK Complete head control system for drip, sprinkler/micro-sprinkler and other
irrigation systems for open-field, orchard and greenhouse crops
NutriK Complete Nutrigation™ systems for open-field and orchard crops
APPLICATIONS
Irrigation of all row crop and vegetable types grown on 250 m² fields.
BENEFITS AND FEATURES
■■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■■ Designed for irrigation of 250 m² with 1.0 m dripperline spacing.
■■ Working pressure range: 0.1 to 2.0 bar.
■■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.1 bar).
■■ The system includes all needed components for field installation and operation.
■■ System head control must be installed in the highest point of the irrigated field.
■■ The system is designed for installation in fields with maximum 2% slope.
■■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.

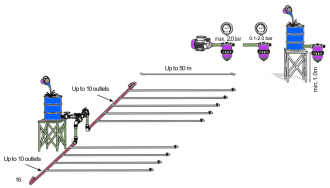

FDS 250
A COMPLETE DRIP IRRIGATION SYSTEM PER 250 M²
min.1.0 m
max. 2.0 bar 0.1-2.0 bar
15 m
6
LOGISTIC DATA
■■ Catalog number: 42000-003100
■■ Box packaging size: 0.52 x 0.52 x 0.25 meter
■■ Average box weight: 9.7 Kg
■■ Pallet packaging size: 1.14 x 1.14 x 2.17 meter
■■ Average pallet weight: 323 Kg
■■ Number of irrigation kits per pallet: 32 kits
SYSTEM COMPONENTS
FDS 250 • 42000-003100
COMPONENTS UNITS
MICRODRIP 8 2.00 L/H 0.30 M 250 M 1
PE IRRIGATION PIPE 25/4 25 M FDS 1
TANK OUTLET 1" BUTZI PP 1
PLASTIC FEMALE COUPLER 1” 1
PLASTIC NIPPLE 1”*1” 1
NMV PVC BALL VLV 1 UNION 1" FFT BSP 3
FILTER 1" BSP 120 MESH BRWN L 1
TEE SWIVEL FEMALE 1”M* 1”F *1”M 1
NUT LOCK FITT. ELBOW 25*1" MALE 2
NUT LOCK COUPLING 25*25 2
NUT LOCK FITT. END LINE 25 MM 2
NARROW TEFLON 2
MINI PUNCH 3.5 1
PRESS FIT FEMALE START CONN. 4X6.5 BROWN 20
PRESS FIT MALE CONN. F/MICRO TUBE 8 MM BWN 20
BARB COUPLING BROWN CONN. 8 MM 20
MIC MALE PLUG 5
END LINE MICRODRIP 8 MM 20/BAG 1
FDS CONNECTORS BAG (SPARE PARTS) • 42000-003500
COMPONENTS UNITS
BARB-F CONN. BROWN 20
BARB-M CONN. BROWN F/MICRO TUBE 8 MM 20
BARB COUPLING BROWN CONN. 8 MM 20
MALE PLUG 5
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.65 0.91 1.28 1.56 1.79 2.00 2.19 2.36 2.52 2.67 2.81
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 2.16 3.03 4.25 5.19 5.97 6.66 7.29 7.86 8.39 8.89 9.36
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 250 M DRIPPERLINE WILL BE USED 0.54 0.76 1.06 1.30 1.49 1.67 1.82 1.96 2.10 2.22 2.34
FLOW RATE 1/2 AREA (M³/H) WHEN 125 M DRIPPERLINE WILL BE USED 0.27 0.38 0.53 0.65 0.75 0.84 0.91 0.98 1.05 1.11 1.17
7
min.1.0 m
max. 2.0 bar 0.1-2.0 bar
15 m
FDS 500
A COMPLETE DRIP IRRIGATION SYSTEM PER 500 M²
APPLICATIONS
Irrigation of all row crop and vegetable types grown on 500 m² fields.
BENEFITS AND FEATURES
■■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases,
■■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■■ Designed for irrigation of 500 m² with 1.0 m dripperline spacing.
■■ Working pressure range: 0.1 to 2.0 bar.
■■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.1 bar).
■■ The system includes all needed components for field installation and operation.
■■ System head control must be installed in the highest point of the irrigated field.
■■ The system is designed for installation in fields with maximum 2% slope.
■■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
8
LOGISTIC DATA
■■ Catalog number: 42000-001200
■■ Box packaging size: 0.54 x 0.54 x 0.46 meter
■■ Average box weight: 19.4 Kg
■■ Pallet packaging size: 1.14 x 1.14 x 2.10 meter
■■ Average pallet weight: 323 Kg
■■ Number of irrigation kits per pallet: 16 kits
SYSTEM COMPONENTS
FDS 500 • 42000-001200
COMPONENTS UNITS
MICRODRIP 8 2.00 L/H 0.30 M 250 M 2
PE IRRIGATION PIPE 25/4 25 M FDS 1
TANK OUTLET 1" BUTZI PP 1
PLASTIC FEMALE COUPLER 1” 1
PLASTIC NIPPLE 1”*1” 1
NMV PVC BALL VLV 1 UNION 1" FFT BSP 3
FILTER 1" BSP 120 MESH BRWN L 1
TEE SWIVEL FEMALE 1”M* 1”F *1”M 1
NUT LOCK FITT. ELBOW 25*1" MALE 2
NUT LOCK COUPLING 25*25 2
NUT LOCK FITT. END LINE 25 MM 2
NARROW TEFLON 2
MINI PUNCH 3.5 1
PRESS FIT FEMALE START CONN. 4X6.5 BROWN 40
PRESS FIT MALE CONN. F/MICRO TUBE 8 MM BWN 40
BARB COUPLING BROWN CONN. 8 MM 40
MIC MALE PLUG 10
END LINE MICRODRIP 8 MM 20/BAG 2
FDS CONNECTORS BAG (SPARE PARTS) • 42000-003500
COMPONENTS UNITS
BARB-F CONN. BROWN 20
BARB-M CONN. BROWN F/MICRO TUBE 8 MM 20
BARB COUPLING BROWN CONN. 8 MM 20
MALE PLUG 5
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.65 0.91 1.28 1.56 1.79 2.00 2.19 2.36 2.52 2.67 2.81
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 2.16 3.03 4.25 5.19 5.97 6.66 7.29 7.86 8.39 8.89 9.36
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 500 M DRIPPERLINE WILL BE USED 1.08 1.51 2.13 2.59 2.99 3.33 3.64 3.93 4.20 4.44 4.68
FLOW RATE 1/2 AREA (M³/H) WHEN 250 M DRIPPERLINE WILL BE USED 0.54 0.76 1.06 1.30 1.49 1.67 1.82 1.96 2.10 2.22 2.34
9
FDS 1000
A COMPLETE DRIP IRRIGATION SYSTEM PER 1000 M²
min.1.0 m
max. 2.0 bar 0.1-2.0 bar
15 m
APPLICATIONS
Irrigation of all row crop and vegetable types grown on 1000 m² fields.
BENEFITS AND FEATURES
■■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■■ Designed for irrigation of 1000 m² with 1.0 m dripperline spacing.
■■ Working pressure range: 0.1 to 2.0 bar.
■■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.1 bar).
■■ The system includes all needed components for field installation and operation.
■■ System head control must be installed in the highest point of the irrigated field.
■■ The system is designed for installation in fields with maximum 2% slope.
■■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
10
LOGISTIC DATA
■■ Catalog number: 42000-001250
■■ Box packaging size: 0.59 x 0.56 x 1.12 meter
■■ Average box weight: 32.0 Kg
■■ Pallet packaging size: 1.14 x 1.14 x 1.20 meter
■■ Average pallet weight: 142 Kg
■■ Number of irrigation kits per pallet: 4 kits
SYSTEM COMPONENTS
FDS 1000 • 42000-001250
COMPONENTS UNITS
MICRODRIP 8 2.00 L/H 0.30 M 250 M 4
PE IRRIGATION PIPE 25/4 25 M FDS 3
TANK OUTLET 1" BUTZI PP 1
PLASTIC FEMALE COUPLER 1” 1
PLASTIC NIPPLE 1”*1” 1
NMV PVC BALL VLV 1 UNION 1" FFT BSP 3
FILTER 1" BSP 120 MESH BRWN L 1
TEE SWIVEL FEMALE 1”M* 1”F *1”M 1
NUT LOCK FITT. ELBOW 25*1" MALE 2
NUT LOCK COUPLING 25*25 2
NUT LOCK FITT. END LINE 25 MM 2
NARROW TEFLON 2
MINI PUNCH 3.5 1
PRESS FIT FEMALE START CONN. 4X6.5 BROWN 80
PRESS FIT MALE CONN. F/MICRO TUBE 8 MM BWN 80
BARB COUPLING BROWN CONN. 8 MM 80
MIC MALE PLUG 20
END LINE MICRODRIP 8MM 20/BAG 4
FDS CONNECTORS BAG (SPARE PARTS) • 42000-003500
COMPONENTS UNITS
BARB-F CONN. BROWN 20
BARB-M CONN. BROWN F/MICRO TUBE 8 MM 20
BARB COUPLING BROWN CONN. 8 MM 20
MALE PLUG 5
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.65 0.91 1.28 1.56 1.79 2.00 2.19 2.36 2.52 2.67 2.81
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 2.16 3.03 4.25 5.19 5.97 6.66 7.29 7.86 8.39 8.89 9.36
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 1000 M DRIPPERLINE WILL BE USED 2.16 3.03 4.25 5.19 5.97 6.66 7.29 7.86 8.39 8.89 9.36
FLOW RATE 1/2 AREA (M³/H) WHEN 500 M DRIPPERLINE WILL BE USED 1.08 1.51 2.13 2.59 2.99 3.33 3.64 3.93 4.20 4.44 4.68
11
APPLICATIONS
Irrigation of all row crop and vegetable types grown on 250 m² fields.
BENEFITS AND FEATURES
■■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases,
■■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■■ Designed for irrigation of 250 m² with 1.0 m dripperline spacing.
■■ Working pressure range: 0.1 to 2.0 bar.
■■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.1 bar).
■■ The system includes all needed components for field installation and operation.
■■ System head control must be installed in the highest point of the irrigated field.
■■ The system is designed for installation in fields with maximum 2% slope.
■■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
DRIPK 250
A COMPLETE DRIP IRRIGATION SYSTEM PER 250 M²
Up to 10 outlets
Up to 10 outlets
min.1.0 m
max. 2.0 bar 0.1-2.0 bar
Up to 50 m
12
LOGISTIC DATA
■■ Catalog number: 42000-014500
■■ Box packaging size: 0.52 x 0.52 x 0.25 meter
■■ Average box weight: 8.5 Kg
■■ Pallet packaging size: 1.14 x 1.14 x 2.17 meter
■■ Average pallet weight: 285 Kg
■■ Number of irrigation kits per pallet: 32 kits
SYSTEM COMPONENTS
DRIPK 250 • 42000-014500
COMPONENTS UNITS
TYP+ 12125 1.00 L/H 0.30 M 250 M 1
PE IRRIGATION PIPE 25/4 25 M FDS 1
TANK OUTLET 1" BUTZI PP 1
PLASTIC FEMALE COUPLER 1” 1
PLASTIC NIPPLE 1” * 1” 1
NMV PVC BALL VLV 1 UNION 1" FFT BSP 3
FILTER 1" BSP 120 MESH BRWN L 1
TEE SWIVEL FEMALE 1”M*1”F*1”M 1
NUT LOCK COUPLING 25*25 2
NUT LOCK FITT. ELBOW 25*1" MALE 2
TAVLIT NUT LOCK FITT. END LINE 25 MM 2
NARROW TEFLON 2
PE START CONN. 12 MM W/RING 20
RING END LINE 12 MM W/RING 20
RING COUPLING 12 MM W/RINGS 20
PUNCH 8 MM PLASTIC W/INSERTER 1
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.36 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 1.18 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 250 M DRIPPERLINE WILL BE USED 0.30 0.40 0.55 0.66 0.75 0.83 0.91 0.97 1.03 1.09 1.14
FLOW RATE 1/2 AREA (M³/H) WHEN 125 M DRIPPERLINE WILL BE USED 0.15 0.20 0.28 0.33 0.38 0.42 0.45 0.49 0.52 0.54 0.57
13
min.1.0 m
max. 2.0 bar 0.1-2.0 bar
Up to 50 m
Up to 10 outlets
Up to 10 outlets
APPLICATIONS
Irrigation of all row crop and vegetable types grown on 500 m² fields.
BENEFITS AND FEATURES
■■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases,
■■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■■ Designed for irrigation of 500 m² with 1.0 m dripperline spacing.
■■ Working pressure range: 0.1 to 2.0 bar.
■■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.1 bar).
■■ The system includes all needed components for field installation and operation.
■■ System head control must be installed in the highest point of the irrigated field.
■■ The system is designed for installation in fields with maximum 2% slope.
■■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
DRIPK 500
A COMPLETE DRIP IRRIGATION SYSTEM PER 500 M²
14
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.36 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 1.18 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 500 M DRIPPERLINE WILL BE USED 0.59 0.81 1.10 1.33 1.51 1.67 1.81 1.94 2.06 2.17 2.28
FLOW RATE 1/2 AREA (M³/H) WHEN 250 M DRIPPERLINE WILL BE USED 0.30 0.40 0.55 0.66 0.75 0.83 0.91 0.97 1.03 1.09 1.14
LOGISTIC DATA
■■ Catalog number: 42000-015520
■■ Box packaging size: 0.52 x 0.52 x 0.25 meter
■■ Average box weight: 12.5 Kg
■■ Pallet packaging size: 1.14 x 1.14 x 2.17 meter
■■ Average pallet weight: 413 Kg
■■ Number of irrigation kits per pallet: 32 kits
SYSTEM COMPONENTS
DRIPK 500 • 42000-015520
COMPONENTS UNITS
TYP+ 12125 1.00 L/H 0.30 M 250 M 2
PE IRRIGATION PIPE 25/4 25 M FDS 1
TANK OUTLET 1" BUTZI PP 1
PLASTIC FEMALE COUPLER 1” 1
PLASTIC NIPPLE 1” * 1” 1
NMV PVC BALL VLV 1 UNION 1" FFT BSP 3
FILTER 1" BSP 120 MESH BRWN L 1
TEE SWIVEL FEMALE 1”M*1”F*1”M 1
NUT LOCK COUPLING 25*25 2
NUT LOCK FITT. ELBOW 25*1" MALE 2
NUT LOCK FITT. END LINE 25 MM 2
NARROW TEFLON 2
PE START CONN. 12 MM W/RING 20
RING END LINE 12 MM W/RING 20
RING COUPLING 12 MM W/RINGS 20
PUNCH 8 MM PLASTIC W/INSERTER 1
15
min.1.0 m
max. 2.0 bar 0.1-2.0 bar
Up to 50 m
Up to 10 outlets
Up to 10 outlets
APPLICATIONS
Irrigation of all row crop and vegetable types grown on 1000 m² fields.
BENEFITS AND FEATURES
■■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases,
■■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■■ Designed for irrigation of 1000 m² with 1.0 m dripperline spacing.
■■ Working pressure range: 0.1 to 2.0 bar.
■■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.1 bar).
■■ The system includes all needed components for field installation and operation.
■■ System head control must be installed in the highest point of the irrigated field.
■■ The system is designed for installation in fields with maximum 2% slope.
■■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
DRIPK 1000
A COMPLETE DRIP IRRIGATION SYSTEM PER 1000 M²
16
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.36 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 1.18 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.1 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 1000 M DRIPPERLINE WILL BE USED 1.18 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
FLOW RATE 1/2 AREA (M³/H) WHEN 500 M DRIPPERLINE WILL BE USED 0.59 0.81 1.10 1.33 1.51 1.67 1.81 1.94 2.06 2.17 2.28
LOGISTIC DATA
■■ Catalog number: 42000-017000
■■ Box packaging size: 0.54 x 0.54 x 0.46 meter
■■ Average box weight: 16.0 Kg
■■ Pallet packaging size: 1.14 x 1.14 x 1.20 meter
■■ Average pallet weight: 269 Kg
■■ Number of irrigation kits per pallet: 16 kits
SYSTEM COMPONENTS
DRIPK 1000 • 42000-017000
COMPONENTS UNITS
TYP+ 12125 1.00 L/H 0.30 M 250 M 4
PE IRRIGATION PIPE 25/4 25 M FDS 1
TANK OUTLET 1" BUTZI PP 1
PLASTIC FEMALE COUPLER 1” 1
PLASTIC NIPPLE 1” * 1” 1
NMV PVC BALL VLV 1 UNION 1" FFT BSP 3
FILTER 1" BSP 120 MESH BRWN L 1
TEE SWIVEL FEMALE 1”M*1”F*1”M 1
NUT LOCK COUPLING 25*25 2
NUT LOCK FITT. ELBOW 25*1” MALE 2
NUT LOCK FITT. END LINE 25 MM 2
NARROW TEFLON 2
PE START CONN. 12 MM W/RING 20
RING END LINE 12 MM W/RING 20
RING COUPLING 12 MM W/RINGS 20
PUNCH 8 MM PLASTIC W/INSERTER 1
17
DRIPK 1608
A COMPLETE DRIP IRRIGATION SYSTEM UP TO 1600 M²
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 1600 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 1600 m² with 0.8 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015400
■ Pallet packaging siz: 1.14 x 1.14 x 1.69 meter
■ Average pallet weight: 60 Kg
18
80 m
24 m 24 m
max. 2.0 bar
up to 20 m up to 20 m

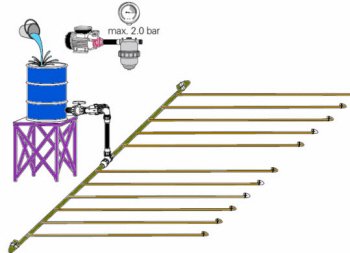

The draws are non-uniformly scaled. They are for illustration purposes only.
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 0.8 M 2.02 2.76 3.31 3.77 4.17 4.53 4.85 5.15 5.43 5.69
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 2000 M WILL BE USED TOGETHER 3.23 4.42 5.30 6.03 6.67 7.24 7.76 8.24 8.69 9.11
FLOW RATE 1/2 AREA (M³/H) WHEN 1000 M DRIPPERLINE WILL BE USED 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
SYSTEM COMPONENTS
DRIPK 1608 • 42000-015400
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 12125 1.00 L/H 0.30 M 1300 M 15686-000101 2
FXN 2” 1/2” CONN 0.80 M 50 M 43002-000500 1
FXN PLUG 0.5” MTH+O RING/50 BAG 42000-027105 1
TANK OUTLET 2" 75070-004700 1
NMV PVC BALL VLV 1 UNION 2" FFT BSP 77450-000104 1
2”T S.TAGLINE FIL.SS.SCREEN 120 MESH 74410-001710 1
PLASTIC ELBOW 2” F 78220-002900 1
FXN MTH 2"BSP*2” KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC THREADED BALL VALVE M-F 2” -1 NUT 77400-032450 2
FXN LINE END CAP 2” KIT 43040-020710 2
NARROW TEFLON 45000-003400 4
ELBOW RING 12-1/2 MTH-RING 12 W/RINGS 32500-003350 30
RING END LINE 12 W/RING 32500-003560 30
RING COUPLING 12 MM W RINGS 32500-002471 30
19
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 3200 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 3200 m² with 1.6 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015400
■ Pallet packaging siz: 1.14 x 1.14 x 1.69 meter
■ Average pallet weight: 60 Kg
80 m
24 m 24 m
max. 2.0 bar
up to 20 m up to 20 m
DRIPK 3216
A COMPLETE DRIP IRRIGATION SYSTEM UP TO 3200 M²
20
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DRIPK 3216 • 42000-015400
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 12125 1.00 L/H 0.30 M 1300 M 15686-000101 2
FXN 2” 1/2” CONN 0.80 M 50 M 43002-000500 1
FXN PLUG 0.5” MTH+O RING/50 BAG 42000-027105 1
TANK OUTLET 2" 75070-004700 1
NMV PVC BALL VLV 1 UNION 2" FFT BSP 77450-000104 1
2”T S.TAGLINE FIL.SS.SCREEN 120 MESH 74410-001710 1
PLASTIC ELBOW 2” F 78220-002900 1
FXN MTH 2"BSP*2” KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC THREADED BALL VALVE M-F 2” -1 NUT 77400-032450 2
FXN LINE END CAP 2” KIT 43040-020710 2
NARROW TEFLON 45000-003400 4
ELBOW RING 12-1/2 MTH-RING 12 W/RINGS 32500-003350 30
RING END LINE 12 W/RING 32500-003560 30
RING COUPLING 12 MM W RINGS 32500-002471 30
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.6 M 1.01 1.38 1.66 1.89 2.08 2.26 2.43 2.58 2.72 2.85
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 2000 M WILL BE USED TOGETHER 3.23 4.42 5.30 6.03 6.67 7.24 7.76 8.24 8.69 9.11
FLOW RATE 1/2 AREA (M³/H) WHEN 1000 M DRIPPERLINE WILL BE USED 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
21
80 m
24 m 24 m
max. 2.0 bar
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 4000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 4000 m² with 0.8 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015500
■ Pallet packaging size: 1.14 x 1.14 x 0.50 meter
■ Average pallet weight: 125 Kg
DRIPK 4008
A COMPLETE DRIP IRRIGATION SYSTEM UP TO 4000 M²
22
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DRIPK 4008 • 42000-015500
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 12125 1.00 L/H 0.30 M 1300 M 15686-000101 4
FXN 2” 1/2” CONN 0.80 M 50 M 43002-000500 1
FXN PLUG 0.5” MTH+O RING/50 BAG 42000-027105 1
TANK OUTLET 2" 75070-004700 1
NMV PVC BALL VLV 1 UNION 2" FFT BSP 77450-000104 1
2”T S.TAGLINE FIL.SS.SCREEN 120 MESH 74410-001710 1
PLASTIC ELBOW 2” F 78220-002900 1
FXN MTH 2"BSP*2” KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC THREADED BALL VALVE M-F 2” -1 NUT 77400-032450 2
FXN LINE END CAP 2” KIT 43040-020710 2
NARROW TEFLON 45000-003400 4
ELBOW RING 12-1/2 MTH-RING 12 W/RINGS 32500-003350 60
RING END LINE 12 W/RING 32500-003560 60
RING COUPLING 12 MM W RINGS 32500-002471 60
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 0.8 M 2.02 2.76 3.31 3.77 4.17 4.53 4.85 5.15 5.43 5.69
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 4800 M WILL BE USED TOGETHER 7.76 10.60 12.72 14.48 16.01 17.38 18.63 19.78 20.86 21.87
FLOW RATE 1/2 AREA (M³/H) WHEN 2400 M DRIPPERLINE WILL BE USED 3.88 5.30 6.36 7.24 8.00 8.69 9.31 9.89 10.43 10.93
23
80 m
24 m 24 m
DRIPK 4016
A COMPLETE DRIP IRRIGATION SYSTEM UP TO 4000 M²
max. 2.0 bar
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 4000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 4000 m² with 1.6 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015505
■ Pallet packaging size: 1.39 x 0.79 x 0.60 meter
■ Average pallet weight: 60 Kg
24
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DRIPK 4016 • 42000-015505
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 12125 1.00 L/H 0.30 M 1300 M 15686-000101 2
FXN 2” 1/2” CONN 0.80 M 50 M 43002-000500 1
FXN PLUG 0.5” MTH+O RING/50 BAG 42000-027105 1
TANK OUTLET 2" 75070-004700 1
NMV PVC BALL VLV 1 UNION 2" FFT BSP 77450-000104 1
2”T S.TAGLINE FIL.SS.SCREEN 120 MESH 74410-001710 1
PLASTIC ELBOW 2” F 78220-002900 1
FXN MTH 2"BSP*2” KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC THREADED BALL VALVE M-F 2” -1 NUT 77400-032450 2
FXN LINE END CAP 2” KIT 43040-020710 2
NARROW TEFLON 45000-003400 4
ELBOW RING 12-1/2 MTH-RING 12 W/RINGS 32500-003350 30
RING END LINE 12 W/RING 32500-003560 30
RING COUPLING 12 MM W RINGS 32500-002471 30
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.6 M 1.01 1.38 1.66 1.89 2.08 2.26 2.43 2.58 2.72 2.85
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 2400 M WILL BE USED TOGETHER 3.88 5.30 6.36 7.24 8.00 8.69 9.31 9.89 10.43 10.93
FLOW RATE 1/2 AREA (M³/H) WHEN 1200 M DRIPPERLINE WILL BE USED 1.94 2.65 3.18 3.62 4.00 4.34 4.66 4.94 5.21 5.47
25
80 m
24 m 24 m
100 m
DRIPK 5010
A COMPLETE DRIP IRRIGATION SYSTEM UP TO 5000 M²
max. 2.0 bar
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 5000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 5000 m² with 1.0 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015540
■ Pallet packaging size: 1.14 x 1.00 x 0.60 meter
■ Average pallet weight: 100 Kg
26
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DRIPK 5010 • 42000-015540
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 16125 1.00 L/H 0.30 M 1600 M 15700-000260 3
FXN 2” 1/2” CONN 0.50 M 50 M 43002-000410 1
FXN PLUG 0.5” MTH+O RING/50 BAG 42000-027105 1
TANK OUTLET 2" 75070-004700 1
NMV PVC BALL VLV 1 UNION 2" FFT BSP 77450-000104 1
2”T S.TAGLINE FIL.SS.SCREEN 120 MESH 74410-001710 1
PLASTIC ELBOW 2” F 78220-002900 1
FXN MTH 2"BSP*2” KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC THREADED BALL VALVE M-F 2” -1 NUT 77400-032450 2
FXN LINE END CAP 2” KIT 43040-020710 2
NARROW TEFLON 45000-003400 4
ELBOW RING 16-1/2 MTH-RING 16 W/RINGS 32500-015381 50
RING END LINE 16 W/RING 32500-016460 50
RING COUPLING 16 MM W RINGS 32500-016740 50
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 4800 M WILL BE USED TOGETHER 7.76 10.60 12.72 14.48 16.01 17.38 18.63 19.78 20.86 21.87
FLOW RATE 1/2 AREA (M³/H) WHEN 2400 M DRIPPERLINE WILL BE USED 3.88 5.30 6.36 7.24 8.00 8.69 9.31 9.89 10.43 10.93
27
100m
50 m (Blank) 50 m (Outlet)
48 m (Outlet)
max. 2.0 bar
DRIPK 9608
A COMPLETE DRIP IRRIGATION SYSTEM PER 1 HECTARE
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 10000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 10000 m² with 0.8 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015700
■ Pallet packaging size: 1.14 x 1.14 x 1.00 meter
■ Average pallet weight: 250 Kg
28
The draws are non-uniformly scaled. They are for illustration purposes only.
DRIPK 9608 • 42000-015700
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 16125 1.00L/H 0.30M 1600M 15700-000260 8
FXN 2" BLANK 50M 43002-000177 1
FXN 2" 1/2" CONN 0.80M 50M 43002-000500 2
FXN PLUG 0.5" MTH+O RING/50 BAG 42000-027105 1
NMV PVC BALL VLV 1 UNION 3" FFT BSP 77450-000106 1
3"T TAGLINE FILTER S.SCREEN 120 MESH 74410-001990 1
PVC 90 DEG THREADED ELBOW 3 77400-016600 1
PVC THREADED REDUCER 3M*2F 77400-011100 1
FXN MTH 2"BSP*2" KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC DOUBLE NIPPLE 2 77400-018000 2
PVC 90 DEG THREADED ELBOW 2 77400-016400 2
NMV PVC BALL VLV 1 UNION 2" FMT BSP 77450-000124 2
FXN LINE END CAP 2" KIT 43040-020710 2
FXN COUPLING 2"*2" KIT 43040-018000 1
NARROW TEFLON 45000-003400 6
ELBOW RING 16-1/2MTH-RING 16 + BLUE RING 32500-015381 130
RING END LINE 16 W/RING 32500-016460 130
RING COUPLING 16 MM W RINGS 32500-016740 100
SYSTEM COMPONENTS
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 0.8 M 2.02 2.76 3.31 3.77 4.17 4.53 4.85 5.15 5.43 5.69
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 12000 M WILL BE USED TOGETHER 19.40 26.50 31.80 36.20 40.02 43.44 46.56 49.45 52.14 54.67
FLOW RATE 1/2 AREA (M³/H) WHEN 6000 M DRIPPERLINE WILL BE USED 9.70 13.25 15.90 18.10 20.01 21.72 23.28 24.72 26.07 27.34
29
100m
50 m (Blank) 50 m (Outlet)
48 m (Outlet)
max. 2.0 bar
DRIPK 9610
A COMPLETE DRIP IRRIGATION SYSTEM PER 1 HECTARE
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 10000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 10000 m² with 1.0 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015740
■ Pallet packaging size: 1.14 x 1.14 x 1.00 meter
■ Average pallet weight: 246 Kg
30
The draws are non-uniformly scaled. They are for illustration purposes only.
DRIPK 9610 • 42000-015740
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 16125 1.00L/H 0.30M 1600M 15700-000260 8
FXN 2" BLANK 50M 43002-000177 1
FXN 2" 1/2" CONN 0.80M 50M 43002-000500 2
FXN PLUG 0.5" MTH+O RING/50 BAG 42000-027105 1
NMV PVC BALL VLV 1 UNION 3" FFT BSP 77450-000106 1
3"T TAGLINE FILTER S.SCREEN 120 MESH 74410-001990 1
PVC 90 DEG THREADED ELBOW 3 77400-016600 1
PVC THREADED REDUCER 3M*2F 77400-011100 1
FXN MTH 2"BSP*2" KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC DOUBLE NIPPLE 2 77400-018000 2
PVC 90 DEG THREADED ELBOW 2 77400-016400 2
NMV PVC BALL VLV 1 UNION 2" FMT BSP 77450-000124 2
FXN LINE END CAP 2" KIT 43040-020710 2
FXN COUPLING 2"*2" KIT 43040-018000 1
NARROW TEFLON 45000-003400 6
ELBOW RING 16-1/2MTH-RING 16 + BLUE RING 32500-015381 100
RING END LINE 16 W/RING 32500-016460 100
RING COUPLING 16 MM W RINGS 32500-016740 80
SYSTEM COMPONENTS
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.0 M 1.62 2.21 2.65 3.02 3.34 3.62 3.88 4.12 4.34 4.56
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 10000 M WILL BE USED TOGETHER 16.16 22.08 26.50 30.16 33.35 36.20 38.80 41.21 43.45 45.56
FLOW RATE 1/2 AREA (M³/H) WHEN 5000 M DRIPPERLINE WILL BE USED 8.08 11.04 13.25 15.08 16.68 18.10 19.40 20.60 21.72 22.78
31
100m
50 m (Blank) 50 m (Outlet)
48 m (Outlet)
max. 2.0 bar
DRIPK 9616
A COMPLETE DRIP IRRIGATION SYSTEM PER 1 HECTARE
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 10000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
SPECIFICATIONS
■ Designed for irrigation of 10000 m² with 1.6 m dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015750
■ Pallet packaging size: 1.14 x 0.84 x 0.60 meter
■ Average pallet weight: 147 Kg
32
The draws are non-uniformly scaled. They are for illustration purposes only.
DRIPK 9616 • 42000-015750
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 16125 1.00L/H 0.30M 1600M 15700-000260 4
FXN 2" BLANK 50M 43002-000177 1
FXN 2" 1/2" CONN 0.80M 50M 43002-000500 2
FXN PLUG 0.5" MTH+O RING/50 BAG 42000-027105 1
NMV PVC BALL VLV 1 UNION 3" FFT BSP 77450-000106 1
3"T TAGLINE FILTER S.SCREEN 120 MESH 74410-001990 1
PVC 90 DEG THREADED ELBOW 3 77400-016600 1
PVC THREADED REDUCER 3M*2F 77400-011100 1
FXN MTH 2"BSP*2" KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC DOUBLE NIPPLE 2 77400-018000 2
PVC 90 DEG THREADED ELBOW 2 77400-016400 2
NMV PVC BALL VLV 1 UNION 2" FMT BSP 77450-000124 2
FXN LINE END CAP 2" KIT 43040-020710 2
FXN COUPLING 2"*2" KIT 43040-018000 1
NARROW TEFLON 45000-003400 6
ELBOW RING 16-1/2MTH-RING 16 + BLUE RING 32500-015381 70
RING END LINE 16 W/RING 32500-016460 70
RING COUPLING 16 MM W RINGS 32500-016740 50
SYSTEM COMPONENTS
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) WITH DRIPPERLINES EACH 1.6 M 1.01 1.38 1.66 1.89 2.08 2.26 2.43 2.58 2.72 2.85
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 6000 M WILL BE USED TOGETHER 9.70 13.25 15.90 18.10 20.01 21.72 23.28 24.72 26.07 27.34
FLOW RATE 1/2 AREA (M³/H) WHEN 3000 M DRIPPERLINE WILL BE USED 4.85 6.62 7.95 9.05 10.01 10.86 11.64 12.36 13.03 13.67
33
100m
50 m (Blank) 50 m (Outlet)
48 m (Outlet)
max. 2.0 bar
DRIPK 10 FT
A COMPLETE DRIP IRRIGATION SYSTEM UP TO 1 HECTARE
APPLICATIONS
Irrigation of all row crop and vegetable types grown up to 10000 m² fields.
BENEFITS AND FEATURES
■ Higher and better yield: Precise and water efficient application directly to the root zone, improves water and fertilizer
distribution.
■ Healthy and sustainable crops: Reduces weed growth, evaporation and run-off, eliminates wetting of the foliage thereby
reducing fungal diseases.
■ Labor and time saving: All products/ parts needed for installation and operation are included, easy to use, assemble and
operate, can be easily disassembled and stored.
■ Reliable performance: Integrating durable drippers for several seasons’ performance, dripperlines wall thickness allows
for multi-seasonal use (layout and retrieval). Netafim™ drippers are manufactured, at the highest levels of quality in
compliance with ISO 9261 International Standard.
Designed for irrigation of maximum 1.0 hectare (10000 m²) with 0.5 m multiplications - dripperline spacing.
To allow maximum system flexibility with most crop types (mainly fruit trees/shrubs), the sub-main line should include
welded outlets every 0.5 m, there are suitable plugs that come with the system. The grower should determine the
desired spacing between the dripperlines to be installed (in 0.5 m multiplications) with the unused outlets sealed off.
It is possible to use 2 dripperlines per 1 tree row by using 2 close outlets, while sealing the unused outlets according
to the distance between the rows.
SPECIFICATIONS
■ Designed for irrigation of 10000 m² with 0.5 m multiplications dripperline spacing.
■ Working pressure range: 0.2 to 2.0 bar.
■ The system can be operated by water pressure using a pump or atmospheric pressure (over 0.2 bar).
■ The system includes all needed components for field installation and operation.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ Dripper flows, irrigation rates and scheduling at different working pressures will follow in the table below.
■ It can be fully or two shift-operated, depending on the water amounts per hour available to the user.
LOGISTIC DATA
■ Catalog number: 42000-015900
■ Pallet packaging size: 1.10 x 0.95 x 0.58 meter
■ Average pallet weight: 147 Kg
34
The draws are non-uniformly scaled. They are for illustration purposes only.
DRIPK 10 FT • 42000-015900
COMPONENTS CATALOG NUMBER
AS A SPARE PART UNITS ILLUSTRATION
TYP+ 16125 1.00L/H 0.30M 1600M 15700-000260 4
FXN 2" BLANK 50M 43002-000177 1
FXN 2" 1/2" CONN 0.80M 50M 43002-000500 2
FXN PLUG 0.5" MTH+O RING/50 BAG 42000-027105 3
NMV PVC BALL VLV 1 UNION 3" FFT BSP 77450-000106 1
3"T TAGLINE FILTER S.SCREEN 120 MESH 74410-001990 1
PVC 90 DEG THREADED ELBOW 3 77400-016600 1
PVC THREADED REDUCER 3M*2F 77400-011100 1
FXN MTH 2"BSP*2" KIT 43040-018050 4
PLASTIC TEE 2 78220-003800 1
PVC DOUBLE NIPPLE 2 77400-018000 2
PVC 90 DEG THREADED ELBOW 2 77400-016400 2
NMV PVC BALL VLV 1 UNION 2" FMT BSP 77450-000124 2
FXN LINE END CAP 2" KIT 43040-020710 2
FXN COUPLING 2"*2" KIT 43040-018000 1
NARROW TEFLON 45000-003400 6
ELBOW RING 16-1/2MTH-RING 16 + BLUE RING 32500-015381 60
RING END LINE 16 W/RING 32500-016460 60
RING COUPLING 16 MM W RINGS 32500-016740 40
SYSTEM COMPONENTS
TECHNICAL DATA
Dripper hourly flow rate respective to working pressures and precipitation rates according to dripper and dripperline spacing:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
FLOW RATE (L/H) 0.48 0.66 0.80 0.90 1.00 1.09 1.16 1.24 1.30 1.37
PRECIPITATION RATE (MM/H) - 2 DRIPPERLINES EACH 4 METER SPACING 0.81 1.10 1.33 1.51 1.67 1.81 1.94 2.06 2.17 2.28
To calculate irrigation time per day divide to total water amount required by the system's precipitation rate, for example: crop requirement of 5 mm
per day will be divided by precipitation rate (based on the working pressure) to obtain the total number of hours required for irrigation.
Hourly water amount respective to working pressures when the whole system is operated simultaneously or when the system is operated in two halves:
PRESSURE (BAR) 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0
TOTAL FLOW RATE (M³/H) WHEN ALL 6400 M WILL BE USED TOGETHER 10.35 14.13 16.96 19.31 21.34 23.17 24.83 26.37 27.81 29.16
FLOW RATE 1/2 AREA (M³/H) WHEN 3200 M DRIPPERLINE WILL BE USED 5.17 7.07 8.48 9.65 10.67 11.58 12.42 13.19 13.90 14.58
35
1 2 3 4 5
45m3/h at 3.0 bar (1-5)
9m3/h at 3.0 bar (1)
5 m 11 m
50 m
11 m 11 m 11 m 1 m
m 002
m 01
m 01
APPLICATIONS
Irrigation of all vegetable types or row crops grown on 1.0 hectare fields.
SPECIFICATIONS
■ Designed for irrigation of 1.0 hectare (10000 m²) with 10*11 meter sprinkler rectangular spacing.
■ Working pressure: 3.0 bar.
■ System head control must be installed in the highest point of the irrigated field.
■ The system is designed for installation in fields with maximum 2% slope.
■ The system includes all needed components for field installation and operation.
■ It can be fully or in five shifts operated depending on the water amounts per hour available to the user.
ADVANTAGES
■ All products/ parts needed for installation and operation are included.
■ Easy to use, assemble and operate.
■ Precise and efficient water application.
■ Robust and protected sprinklers mechanism for several seasons’ performance.
BASIC SYSTEM DESIGN
SPRINK 10 110
SPRINKLER IRRIGATION SYSTEM PER 1.0 HECTARE
45 m³/h at 3.0 bar (1-5)
9 m³/h at 3.0 bar (1)
36
TECHNICAL DATA
If the inlet pressure is more than 3.0 bar is strongly recommended the installation of a:
a) Threaded 3” PRV at the system
head, catalog number: 30580-001600
(not included in this kit), or
b) PRV Barb 2” kit at the beginning of each
lateral, catalog number: 43040-035250
(not included in this kit)
LOGISTIC DATA
■ Catalog number: 42000-013000
■ Packaging size: 1.50 x 0.75 x 1.50 meter
■ Number of pallets per 40 ft container: 22 systems
■ Average pallet weight: 258 Kg
SYSTEM COMPONENTS
SPRINK 10 110 42000-013000
DESCRIPTION UNITS
PLN PIPE 2" 1/2” CONN. 10 M 100 M 10
FTN PIPE 3" 78 MM BLANK 50 M 1
PLN/FTN COUPLING BARB CONN. 2" KIT 5
PLN/FTN BARB CONN. 3" * MTH BSP 3" KIT 1
T 3" * 2" * 3" FOR SPRINK KIT 5
FLUSHING VALVE KIT 3" FOR SPRINK 1
FLUSHING VALVE KIT 2" FOR SPRINK 5
MGN 24D 1/2"IC 450 L/H HEAD ONLY 100
MEGA BASE 100
MEGA SUPPORTING ARM 100
MEGA RISER - 0.4 M 200
NARROW TEFLON 10
Sprinkler flow rate at 2.5 bar working pressure 461 l/h
Precipitation rate 4.19 mm/h
One lateral flow rate 9.22 m³/h
Total area flow rate , 5 laterals 46.10 m³/h
37
APPLICATIONS
Drip, Micro-sprinklers, Sprinklers and other irrigation system head.
BENEFITS
■ All products/parts needed for installation and operation included, without without filtration components.
■ Easy to use, assemble and operate.
■ Suitable for working with any irrigation system conduction and distribution pipes: PE, PVC or metal pipes.
SPECIFICATION
■ Designed to supply up to 20 m³/h
■ This head control is suitable for upstream pressures up to 8.0 bar and regulated downstream pressures, according
the needs, between 0.5 to 5.0 bar.
■ Filtration system is not part of the system head control. Filtration method and micron/mesh size are selected
according to the water quality and emitters installed in the field.
■ The kit includes a ball valve to separate between the filtration system installed at head control inlet, and the other
components of the head control.
■ Netafim™ product offering includes Nutrigation™ Kit and a dilution tank Kit, both suitable for working with this head control.
SYSTEM LAYOUT
HEADK 2” DWS5
HEAD CONTROL KIT
Air Valve
Support legs
not included
Water Meter
PVC Ball Valve 2
Flow direction
PRV Valve
38
The kit include also 2 Narrow Teflon coils (45000-003400) and 20 meters 1/2” garden flex pipe (72400-003050)
The draws are non-uniformly scaled. They are for illustration purposes only.
* Dimensions don’t include the support leg
LOGISTIC DATA
■ Catalog number: 37090-002510
■ Packaging size: 0.70 x 0.35 x 0.52 meter
■ Box weight: 15 Kg
HEADK DIMENSIONS
WIDTH (MM) LENGTH (MM) HEIGHT (MM)
300 1300 Minimum support height 50 mm
2"
1 9 9
39
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
PVC Ball Valve 2”
Catalog number as a spare part: 77400-031100 1
2” Woltman water meter (10 liter pulse)
Catalog number as a spare part: 70240-002500 1
5D pipe with assembled saddle connector with a 1” threaded
outlet
Catalog number as a spare part: 37090-005100
2
Components to assemble 2 service valves on the 5D pipe
Catalog number as a spare part: 37090-007300 1
Netafim™ pressure reduce valve 2" BSP AC
Catalog number as a spare part: 71640-001581 1
Aquative plus DC for replacecment
Catalog number as a spare part: 35500-001900 (not included) 1
NAVC 10 1" PN10 BSP
Catalog number as a spare part: 32600-002000 1
Clip for tube 63
Catalog number as a spare part: 77300-024400 3
Upstream kit
Catalog number as a spare part: 37090-007490 2
APPLICATIONS
Drip, Micro-sprinklers, Sprinklers and other irrigation system head.
BENEFITS
■ All products/parts needed for installation and operation included, without without filtration components.
■ Easy to use, assemble and operate.
■ Suitable for working with any irrigation system conduction and distribution pipes: PE, PVC or metal pipes.
SPECIFICATION
■ Designed to supply up to 60 m³/h
■ This head control is suitable for upstream pressures up to 8.0 bar and regulated downstream pressures, according
the needs, between 0.5 to 5.0 bar.
■ Filtration system is not part of the system head control. Filtration method and micron/mesh size are selected
according to the water quality and emitters installed in the field.
■ The flanges in this kit meet most of the international standards.
■ The kit includes a butterfly valve to separate between the filtration system installed at head control inlet, and the
other components of the head control.
■ Netafim™ product offering includes Nutrigation™ Kit and a dilution tank Kit, both suitable for working with this head control
SYSTEM LAYOUT
HEADK 3” DWS5
HEAD CONTROL KIT
Air Valve
Water Meter
Flow direction
PRV Valve
Butterfly Valve
40
3"
2 9 1
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
3” welding flange
Catalog number as a spare part: 76500-001550
1
3” Butterfly valve
Catalog number as a spare part: 72200-001700
1
10D pipe with assembled loose flanges
Catalog number as a spare part: 37090-005250
1
3” IRT water meter (100 liter pulse)
Catalog number as a spare part: 70240-007510
1
Components to assemble 2 service valves on the 5D pipe
Catalog number as a spare part: 37090-007300
1
Netafim™ pressure reduce valve 3" AC
Catalog number as a spare part: 71640-002166
1
Aquative plus DC for replacecment
Catalog number as a spare part: 35500-001900 (not included)
1
5D pipe with assembled loose flanges and a saddle connector with a 1”
threaded outlet
Catalog number as a spare part: 37090-005110
2
NAVC 10 1" PN10 BSP
Catalog number as a spare part: 32600-002000
1
Upstream kit
Catalog number as a spare part: 37090-007490
2
T 2" catalog number as a spare part: 76200-006760 2
Seal for Flange 3"
Catalog number as a spare part: 76520-001100
5
Bolt 5/8” x 140 mm
Bolt 5/8” x 90 mm
Bolt 5/8” x 80 mm
Nuts 5/8”
Thick washer 5/8”
4
28
4
37
76
Manifold support
Catalog number as a spare part: 70040-084890
2
DBL clamp support 3"-S
Catalog number as a spare part: 70040-085000
2
LOGISTIC DATA
■ Catalog number: 37090-002610
■ Packaging size: 1.25 x 0.65 x 0.65 meter
■ Box weight: 90 Kg
The kit include also 2 Narrow Teflon coils (45000-003400) and 20 meters 1/2”garden flex pipe (72400-003050)
The draws are non-uniformly scaled. They are for illustration purposes only.
HEADK DIMENSIONS
WIDTH (MM) LENGTH (MM) HEIGHT (MM)
750 ~2400 180 - 330
41
APPLICATIONS
Drip, Micro-sprinklers, Sprinklers and other irrigation system head.
BENEFITS
■ All products/parts needed for installation and operation included, without filtration components.
■ Easy to use, assemble and operate.
■ Suitable for working with any irrigation system conduction and distribution pipes: PE, PVC or metal pipes.
SPECIFICATION
■ Designed to supply up to 100 m³/h
■ This head control is suitable for upstream pressures up to 8.0 bar and regulated downstream pressures, according
the needs, between 0.5 to 5.0 bar.
■ Filtration system is not part of the system head control. Filtration method and micron/mesh size are selected
according to the water quality and emitters installed in the field.
■ The flanges in this kit meet most of the international standards.
■ The kit includes a butterfly valve to separate between the filtration system installed at head control inlet, and the
other components of the head control.
■ Netafim™ product offering includes Nutrigation™ Kit and a dilution tank Kit, both suitable for working with this head control.

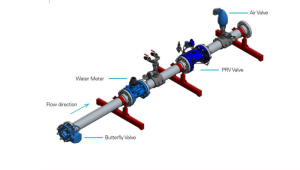

SYSTEM LAYOUT
HEADK 4” DWS5
HEAD CONTROL KIT
Air Valve
PRV Valve
Water Meter
Butterfly Valve
Flow direction
42
4"
3 0 5
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
4” welding flange
Catalog number as a spare part: 76500-001910
1
4” Butterfly valve
Catalog number as a spare part: 72200-001900
1
10D pipe with assembled loose flanges
Catalog number as a spare part: 37090-005260
1
4” IRT Water meter (100 liter pulse)
Catalog number as a spare part: 70240-006090
1
Components to assemble 2 service valves on the 5D pipe
Catalog number as a spare part: 37090-007310
1
4” PRV valve with quick pilot AC
Catalog number as a spare part: 71640-005455
1
Aquative plus DC for replacecment
Catalog number as a spare part: 35500-001900 (not included)
1
5D pipe with assembled loose flanges and a saddle connector with a 2”
threaded outlet
Catalog number as a spare part: 37090-005120
2
NAVC 10 2" PN10 BSP
Catalog number as a spare part: 32600-004000
1
Upstream kit
Catalog number as a spare part: 37090-007500
2
Seal for flange
Catalog number as a spare part: 76520-001200
5
Bolt 5/8” x 140 mm
Bolt 5/8” x 90 mm
Nuts 5/8”
Thick washer 5/8”
4
40
45
90
Manifold support
Catalog number as a spare part: 70040-084890
3
DBL clamp support 4"-SS
Catalog number as a spare part: 70040-085050
3
LOGISTIC DATA
■ Catalog number: 37090-002710
■ Packaging size: 1.40 x 0.65 x 0.80 meter
■ Box weight: 120 Kg
The kit include also 2 Narrow Teflon coils (45000-003400) and 20 meters 1/2” garden flex pipe (72400-003050)
The draws are non-uniformly scaled. They are for illustration purposes only.
HEADK DIMENSIONS
WIDTH (MM) LENGTH (MM) HEIGHT (MM)
750 ~3000 180 - 330
43
APPLICATIONS
Drip, Micro-sprinklers, Sprinklers and other irrigation system head.
BENEFITS
■ All products/parts needed for installation and operation included, without filtration components.
■ Easy to use, assemble and operate.
■ Suitable for working with any irrigation system conduction and distribution pipes: PE, PVC or metal pipes.
SPECIFICATION
■ Designed to supply up to 180 m³/h
■ This head control is suitable for upstream pressures up to 8.0 bar and regulated downstream pressures, according
the needs, between 0.5 to 5.0 bar.
■ Filtration system is not part of the system head control. Filtration method and micron/mesh size are selected
according to the water quality and emitters installed in the field.
■ The flanges in this kit meet most of the international standards.
■ The kit includes a butterfly valve to separate between the filtration system installed at head control inlet, and the
other components of the head control.
■ Netafim™ product offering includes Nutrigation™ Kit and a dilution tank Kit, both suitable for working with this head control.

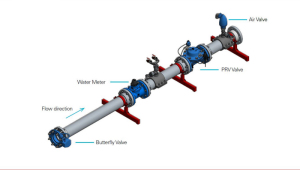

SYSTEM LAYOUT
HEADK 6” DWS5
HEAD CONTROL KIT
Air Valve
Water Meter
Butterfly Valve
Flow direction
PRV Valve
44
6"
3 9 6
The kit include also 2 Narrow Teflon coils (45000-003400) and 20 meters 1/2” garden flex pipe (72400-003050)
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
6” welding flange
Catalog number as a spare part: 76500-002320
1
6” Butterfly valve
Catalog number as a spare part: 72200-002100
1
10D pipe with assembled loose flanges
Catalog number as a spare part: 37090-005270
1
6” IRT Water meter (100 liter pulse)
Catalog number as a spare part: 70240-006159
1
5D pipe with assembled loose flanges and a saddle connector with a 2” threaded outlet
Catalog number as a spare part: 37090-005130
2
Components to assemble 2 service valves on the 5D pipe
Catalog number as a spare part: 37090-007310
1
6” PRV valve with quick pilot AC
Catalog number as a spare part: 71640-016660
1
Aquative plus DC for replacecment
Catalog number as a spare part: 35500-001900 (not included)
1
NAVC 10 2" PN10 BSP
Catalog number as a spare part: 32600-004000
1
Upstream kit
Catalog number as a spare part: 37090-007500
2
Seal for flange
Catalog number as a spare part: 76520-001300
5
Bolt 5/8” x 150 mm
Bolt 5/8” x 90 mm
Nuts 5/8”
Thick washer 5/8”
8
40
50
100
Manifold support
Catalog number as a spare part: 70040-084890
3
DBL clamp support 6"-S
Catalog number as a spare part: 70040-085100
3
LOGISTIC DATA
■ Catalog number: 37090-002810
■ Packaging size: 1.90 x 0.70 x 0.85 meter
■ Box weight: 210 Kg
HEADK DIMENSIONS
WIDTH (MM) LENGTH (MM) HEIGHT (MM)
750 ~3750 180 - 330
45
NUTRIK 10
COMPLETE NUTRIGATION™ KIT
APPLICATIONS
To be used with FDS.
BENEFITS
All products/parts needed for installation and operation included.
Easy to use, assemble and operate.
SPECIFICATION
The kit is designed for assembly on FDS Kits.
PE pipe will be cut close to the water source and then connected to the kit on both its ends.
Flow direction should be noted!

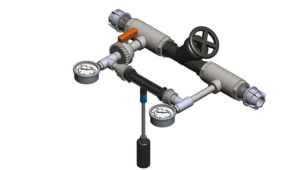

BASIC SYSTEM DESIGN
46
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
VENTURI 484-A 3/4” PVDF/KYNAR
Catalog number as a spare part: 77800-003450
1
ANGLE SEAT VALVE 1” MTH * 1” MTH
Catalog number as a spare part: 75070-001400
1
FDS IN
Catalog number as a spare part: 37090-006000
1
FDS OUT
Catalog number as a spare part: 37090-006500
1
PRESSURE GAUGE 250 4 BAR 1/4” BSP
Catalog number as a spare part: 77540-000940
2
FEMALE CONNECTOR 8 MM * 1/4”
Catalog number as a spare part: 76400-002400
1
FILTER WEIGHT
Catalog number as a spare part: 33020-000960
1
SILVER MALE ADAPTOR 25 MM * 1”
Catalog number as a spare part: 75020-004500
2
TUBE PE 8 MM
LOGISTIC DATA
■ Catalog number: 37090-001050
■ Packaging size: 0.28 x 0.28 x 0.57 meter
■ Box weight: 2.5 Kg
47
NUTRIK 20
COMPLETE NUTRIGATION™ KIT
APPLICATIONS
To be used with DripK.
BENEFITS
All products/parts needed for installation and operation included.
Easy to use, assemble and operate.
SPECIFICATION
The kit is designed for assembly on DripK Kits.
PolyNet™ (flexible) pipe will be cut close to the water source and connected to the kit supplied on both its ends.
Flow direction should be noted!
BASIC SYSTEM DESIGN
48
The draws are non-uniformly scaled. They are for illustration purposes only.
49
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
VENTURI 484-A 3/4" PVDF/KYNAR
Catalog number as a spare part: 77800-003450
1
ANGLE SEAT VALVE 2” MTH * 2” MTH
Catalog number as a spare part: 75070-001600
1
DRIPK IN
Catalog number as a spare part: 37090-006010
1
DRIPK OUT
Catalog number as a spare part: 37090-006510
1
PRESSURE GAUGE 250 4 BAR 1/4" BSP
Catalog number as a spare part: 77540-000940
2
FEMALE CONNECTOR 8 MM * 1/4”
Catalog number as a spare part: 76400-002400
1
FILTER WEIGHT
Catalog number as a spare part: 33020-000960
1
PLASTIC FEMALE CONN. 2”
Catalog number as a spare part: 75050-003700
2
PLN/FTN BARB 2" X MTH BSP 2" KIT + 1/2” BSP
Catalog number as a spare part: 43040-030900
2
TUBE PE 8 MM
LOGISTIC DATA
■ Catalog number: 37090-001100
■ Packaging size: 0.28 x 0.28 x 0.57 meter
■ Box weight: 3.5 Kg
NUTRIK 23
COMPLETE NUTRIGATION™ KIT
APPLICATIONS
To be used with HeadK 2” and HeadK 3”.
BENEFITS
All products/parts needed for installation and operation included.
Easy to use, assemble and operate.
SPECIFICATION
The kit is designed for assembly on HeadK controls.
TO INSTALL IT
Remove air release valve and service valves from the HeadK control unit.
Assemble the kit and then reassemble the removed components back in place.
50
PERFORMANCE DATA
PRESSURE AT THE INJECTOR INLET
(BAR)
PRESSURE AT THE INJECTOR OUTLET
(BAR)
SUCTION FLOW*
(L/H)
1.4
0.3
0.7
215
121
2.8
0.7
1.4
176
162
4.2
1.4
2.4
162
99
* With a 12 mm suction pipe
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
VENTURI INJECTOR 3/4” 0.9 F
Catalog number as a spare part: 33000-001300
1
3/4" N.C. HYDRAULIC VALVE
Catalog number as a spare part: 74480-011100
1
SWIVEL FITTING TEE 1”F * 1”F * 1”M
Catalog number as a spare part: 76200-006700
2
SILVER FEMALE ADPATOR 20 MM * 3/4”
Catalog number as a spare part: 75020-005600
1
PLASTIC BUSHING 1M * 3/4F
Catalog number as a spare part: 78220-004600
2
SILVER MALE ADAPTOR 20 MM * 3/4
Catalog number as a spare part 75020-004400
1
TUBE 8 MM (3 M), PE 100 20/16 (0.55 M), 3/4" VALVE M/F (1), 3/4' COUPLER (1),
TEE MALE 1/4*8 (1)
LOGISTIC DATA
■ Catalog number: 37090-001150
■ Packaging size: 0.70 x 0.35 x 0.52 meter
■ Box weight: 3 Kg
The draws are non-uniformly scaled. They are for illustration purposes only.
51
NUTRIK 46
COMPLETE NUTRIGATION™ KIT
APPLICATIONS
To be used with HeadK 4” and HeadK 6”.
BENEFITS
All products/parts needed for installation and operation included.
Easy to use, assemble and operate.
SPECIFICATION
The kit is designed for assembly on HeadK controls.
TO INSTALL IT
Remove air release valve and service valves from the HeadK control unit.
Assemble the kit and then reassemble the removed components back in place.
52
SYSTEM COMPONENTS
DESCRIPTION UNITS PICTURE
VENTURI INJECTOR D 2” x 12
Catalog number as a spare part: 33000-001425
1
3/4” N.C. HYDRAULIC VALVE
Catalog number as a spare part: 774480-011100
1
SWIVEL FITTING TEE 2”F * 2”F * 2”M
Catalog number as a spare part: 76200-006760
2
PLASTIC BALL VALVE 2” F.F F.D4
Catalog number as a spare part: 76600-005550
1
SILVER MALE ADAPTOR 50 MM * 2”
Catalog number as a spare part: 75020-005200
2
PLASTIC NIPPLE 2”M * 2”M
Catalog number as a spare part: 78220-007600
2
PLASTIC FEMALE COUPLER 3/4”
Catalog number as a spare part: 78220-001100
1
TUBE 8 MM, PE 100 50/10, FLEXIBLE PIPE
* With a 25 mm suction pipe
PERFORMANCE DATA
PRESSURE AT THE INJECTOR INLET
(BAR)
PRESSURE AT THE INJECTOR OUTLET
(BAR)
SUCTION FLOW*
(L/H)
1.4
0.3
0.7
1170
905
2.8
0.7
1.4
1073
1075
4.2
1.4
2.4
1102
982
LOGISTIC DATA
■ Catalog number: 37090-001250
■ Packaging size: 0.70 x 0.35 x 0.52 meter
■ Box weight: 8 Kg
The draws are non-uniformly scaled. They are for illustration purposes only.
53
NUTRIK DILUTION TANK
COMPLETE NUTRIENT DILUTION KIT
APPLICATIONS
To be used with HeadK.
BENEFITS
All products/ parts needed for installation and operation included.
Easy to use, assemble and operate.
SPECIFICATION
■ The kit is designed for assembly on irrigation heads.
■ Helps dissolve the fertilizers continuously.
■ Pumps water flowing in the system, dilutes with fertilizers and drives the solution back into the system.
■ Large opening simplifies solid fertilizer application into the dilution tank.
■ Tank inlet connected to one of the service valves on the head control and outlet to the Venturi pump connection.
BASIC SYSTEM DESIGN
54
The draws are non-uniformly scaled. They are for illustration purposes only.
SYSTEM COMPONENTS
DESCRIPTION PICTURE
CONTAINER+PENETRATION SEAL F/DISSOLNUT
Catalog number as a spare part: 37090-003500
FILLING TAP KIT F/DISSOLNUT
Catalog number as a spare part: 37090-003520
FERTILIZE SUCTION KIT F/DISSOLNUT
Catalog number as a spare part: 37090-003400
DRAINAGE KIT F/DISSOLNUT
Catalog number as a spare part: 37090-003510
FLOAT KIT F/DISSOLNUT
Catalog number as a spare part: 37090-003530
LOGISTIC DATA
■ Catalog number: 37090-000900
■ Packaging size: 0.60 x 0.90 x 1.10 meter
■ Weight: 28 Kg  55 Lbs.
