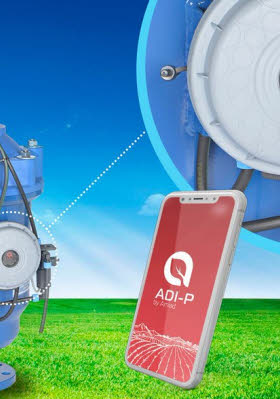

Filtomat ADI-P Flushing Controller

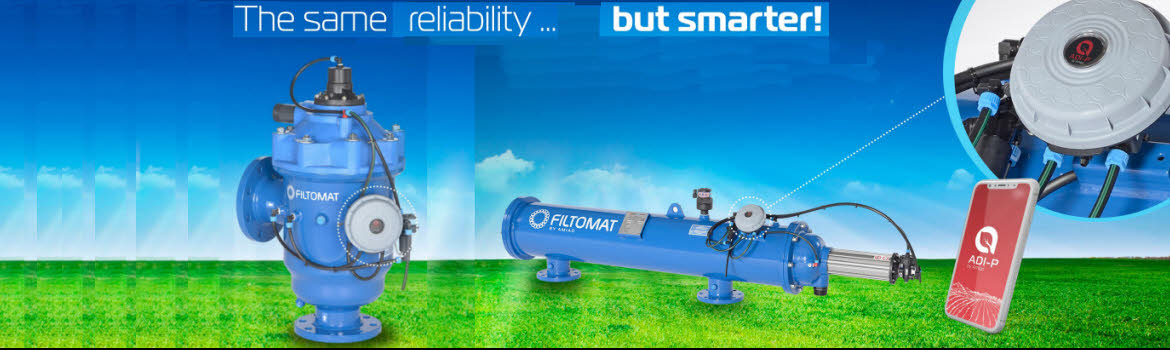

Filtomat M100 & MG Steel body Filters now with the new ADI-P Controller. Hydraulic self-cleaning automatic screen filters, with no external power source required • 80 to 500 micron [200 to 30 Mesh] • Water for cleaning less than 1% of the total flow • Minimum operating pressure 2 bar [30 psi] • Flow Rates M100: up to 400 m3/h [1760 gpm] MG: up to 800 m3/h [3520 gpm]

Features: Reliable operating mechanism • No interruption of downstream flow during flushing • Simple construction and easy maintenance • High reliability and durability • Ideal solution for agricultural filtration requirements • Samrtphone Application Blue Tooth Control • Automatic flushing according to pressure differential.

SPARE PARTS FILTOMAT AMIAD



Guide

Filtomat Automatic Filters Brochure & Technical Guide
ADI-P Controller IOM amiad filtration
Filtomat MG100 IOM amiad filtration
Screen filters treatment with chemicals

Filtomat by amiad filtration

ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
m100 m102c m103c filtomat amiad automatic filter
2" M100-1300 filter (M102-C) , molded screen sst, electronic control, FILTOMAT, Threaded Connections.

2" M100-1300 filter (M102-C) molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat • Max Flow Rate 25 m³/h [110 gpm] • Min. flow for Flushing at 2 bar [30 psi] 15 m³/h [66 gpm] • Reject water volume per flushing cycle 15 liter [4 gallon] • Exhaust Valve 1.5" [40 mm] • Min Working Pressure: 2 Bar 30 [PSI] • Max Pressure: 8 Bar [116 PSI]
Screen area 1,300 sqcm [202 sqin]
Filtomat M102c product drawing
M102-c Filtomat IOM Installation Operation Maintenance User Guide

ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
m100 m102c m103c filtomat amiad automatic filter
3" M100-1300 filter (M103-C) , molded screen sst, , electronic control, FILTOMAT, Threaded Connections.
3" M100-750 filter (M103-C) molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat.  • Max Flow Rate 40 m³/h [175 gpm] • Min. flow for Flushing at 2 bar [30 psi] 15 m³/h [66 gpm] • Reject water volume per flushing cycle 15 liter [4 gallon] • Exhaust Valve 1.5" [40 mm] • Min Working Pressure: 2 Bar 30 [PSI] • Max Pressure: 8 Bar [116 PSI]
Screen area 1,300 sqcm [202 sqin]
M103-c Filtomat IOM Installation Operation Maintenance User Guide
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
m100 m102c m103c filtomat amiad automatic filter
3" M100-1300 filter (M103-C) molded screen sst, , ADI-P electronic BT Control, FILTOMAT, Flanged Connections.
3" M100-750 filter (M103-C) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat • Max Flow Rate 40 m³/h [175 gpm] Min. flow for Flushing at 2 bar [30 psi] 15 m³/h [66 gpm] • Reject water volume per flushing cycle 15 liter [4 gallon] • Exhaust Valve 1.5" [40 mm] • Min Working Pressure: 2 Bar 30 [PSI] • Max Pressure: 8 Bar [116 PSI]
M103-c Filtomat IOM Installation Operation Maintenance User Guide
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
m103cl m104c filtomat self cleaning filter amiad
3" M100-2120 filter (M103-CL) , molded screen sst, electronic control, FILTOMAT, Threaded Connections.
3" M100-1,500 filter (M103-CL) BSPT, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 60m³/h [264 gpm] Min. flow for Flushing at 2 bar [30 psi] 20 m³/h [88 gpm] Reject water volume per flushing cycle 20 liter [5.2 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 2,120 sqcm [329 sqin]
M103-CL Filtomat IOM Installation Operation Maintenance User Guide

ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
m103cl m104c filtomat self cleaning filter amiad
3" M100-2120 filter (M103-CL) molded screen sst, ADI-P Electronic BT Controller, FILTOMAT, Flanged Connections.
3" M100-2120 filter (M103-CL) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 60 m³/h [264 gpm] Min. flow for Flushing at 2 bar [30 psi] 20 m³/h [88 gpm] Reject water volume per flushing cycle 20 liter [5.2 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 2,120 sqcm [329 sqin]
M103-CL Flanged Filtomat IOM Installation Operation Maintenance User Guide

ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
m103cl m104c filtomat self cleaning filter amiad
4" M100-2120 filter (M104-C) molded screen sst, electronic control, FILTOMAT, Flanged Connections.
4" M100-2,120 filter (M104-C) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 80 m³/h [350 gpm] Min. flow for Flushing at 2 bar [30 psi] 20 m³/h [88 gpm] Reject water volume per flushing cycle 20 liter [5.2 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 2,120 sqcm [329 sqin]
M104-C Filtomat IOM Installation Operation Maintenance User Guide
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart

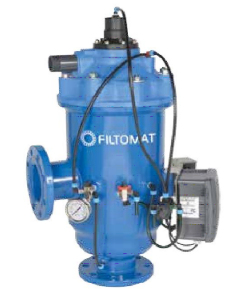

4" M100-3,000 filter (M104-CL) molded screen sst, electronic control, FILTOMAT, Flanged Connections.
4" M100-2,250 filter (M104-CL) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 100 m³/h [440 gpm] Min. flow for Flushing at 2 bar [30 psi] 22 m³/h [97 gpm] Reject water volume per flushing cycle 28 liter [7.3 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 3,000 sqcm [465 sqin]
M104-CL Filtomat IOM Installation Operation Maintenance User Guide
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
4" M100-6,150 filter, (M104-LPN) molded screen sst,  electronic control
4" M100-6,150 filter, (M104-LPN) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 100 m³/h [440 gpm] Min. flow for Flushing at 2 bar [30 psi] 26 m³/h [114 gpm] Reject water volume per flushing cycle 125 liter [33 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 6,150 sqcm [953 sqin]
Filtomat 4" M104-LPN Brochure
Filtomat IOM Installation Operation Maintenance User Guide

ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
6" M100-6,150 filter, (M106-LP) molded screen sst,  electronic control
6" M100-8,150 filter, (M106-LP) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 180 m³/h [793 gpm] Min. flow for Flushing at 2 bar [30 psi] 26 m³/h [114 gpm] Reject water volume per flushing cycle 125 liter [33 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 8 Bar [116 PSI]
Screen area 6,150 sqcm [953 sqin]
 Filtomat 6" M106-LP Brochure
M106-LP Filtomat IOM Installation Operation Maintenance User Guide
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
4" M100-8,890A filter (M104-XLP) molded screen sst,  Electronic controller, FILTOMAT
4" M100-8,890A filter (M104-XLP) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], BT Controller, Filtomat. Max Flow Rate 120 m³/h [528 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 150 liter [40 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI]
Screen area 8,890 sqcm [1,378 sqin]
Filtomat 4" M104-XLP Brochure
M104-XLP Filtomat IOM Installation Operation Maintenance User Guide
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
6” M100-8,890A filter (M106-XLP) molded screen sst, BT controller, FILTOMAT
6” M100-8,890A filter (M106-XLP), molded screen, 80 - 500 micron [180 - 30 mesh], hSmartphone BT contrller,  Filtomat. Max Flow Rate 180 m³/h [793 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 150 liter [40 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI]
Screen area 8,890 sqcm [1,378 sqin]
 Filtomat 6" M106-XLP Brochure
M106-XLP Filtomat IOM Installation Operation Maintenance User Guide 6"
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
8" M100-8,890B filter (M108-LP) molded screen sst,  electronic control
8" M100-8,890B filter (M108-LP) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 300 m³/h [1320 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 150 liter [40 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI]
Screen area 8,890 sqcm [1,378 sqin]
Filtomat 8" M108-LP Brochure
M108-LP Filtomat IOM Installation Operation Maintenance User Guide 8"
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
10" M100-8,890B filter (M110P) molded screen sst, electronic control
10" M100-8,890B filter (M110P) ISO16, molded screen, 50 - 500 micron [300 - 30 mesh], electronic control Max Flow Rate 400 m³/h [1760 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 150 liter [40 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI] Filtomat 10" M110-P Brochure
10" M110P filtomat shipping Palette:
weight: 235 Kg.
Dim: 278x73x73x84cm
M110-P Filtomat IOM Installation Operation Maintenance User Guide 10"
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart

MG-110LP filter (2x108LP) molded screen sst, electronic control 10" [250 mm], FILTOMAT with 17,780 sqcm [2756 sqin] screens

MG-110LP filter (2x108LP) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 400 m³/h [1760 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 300 liter [80 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI]
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
MG-112LP filter (3x108LP) ISO16, molded sst screen, electronic control 12" [300 mm], FILTOMAT with 26,670 sqcm [4134 sqin]screens
MG-112LP filter (3x108LP) ISO16, molded screen, 80 - 500 micron [180 - 30 mesh], electronic control, Filtomat. Max Flow Rate 600 m³/h [2640 gpm] Min. flow for Flushing at 2 bar [30 psi] 30 m³/h [132 gpm] Reject water volume per flushing cycle 450 liter [120 gallon] Exhaust Valve 1.5" [40 mm] Min Working Pressure: 2 Bar 30 [PSI] Max Pressure: 10 Bar [150 PSI]
MG-112LP Filtomat IOM Installation Operation Maintenance User Guide 12"
ex Shipping kg
    Delivery time:15 to 25 w days
Add to cart
MG-114LPS filter (4x108LP) molded screen sst, electronic control 14" [350 mm], FILTOMAT with 35,560 sqcm [5512 sqin] screens

Max. Flow Rate 800 m³/h [3520 gpm]
MG-114LPS Filtomat IOM Installation Operation Maintenance User Guide 14"

ex Shipping kg
    Delivery time:7 w Days
Add to cart
filtomat electronic control 6v dc piston type filter
Electronic control 6V DC for piston type filter, for FILTOMAT
Electronic control 6V DC for piston type filter
ex Shipping kg
    Delivery time:7 w Days
Add to cart
filtomat electronic control 6v dc piston type filter
Electronic control 6V DC for M100-750, 1,500 type filter, for Filtomat
Electronic control, Filtomat. 6V DC for M100-750, 1,500 type filter, 80 - 500 micron [180 - 30 mesh]
