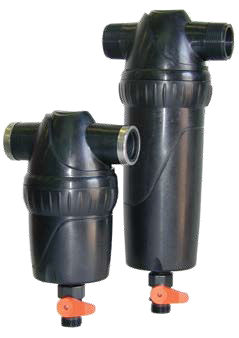

amiad t screen filters

T Filters amiad drinking water & sand

T Filters Amiad
- Drinking water
- Special applications
- Sand Filtration 50 Micron Screens
- Wide selection of screens and discs filtration grades

T Filters amiad screen and discs

ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

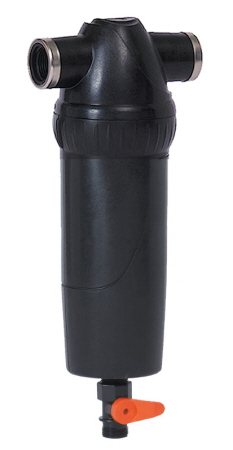

32 mm 1" T Filter, BSPT, Short Special Stainless steel Screen.
Screen filter for sand and small stones presence in the water
water & irrigation high pressure screen filtration

General data:
Maximum flow rate: 7.0m³/h [31 GPM] ( for fine sand up to 2.5m3/h [11 GPM]
Screen area: 170 cm2   [26 Square inch]
Discs alternative filtration area: 200 cm2   [31 Square inch]
In-Out diameter 32mm; 1" Threads (BSP Optional NPT)
Maximum pressure          10bar [150psi]
50 or 130 Micron [300, 200 or 140 Mesh]
Nylon from 22 mic & SST/316 from 50 mic Screens
Or amiad 130 micron discs.

More details
ex Shipping kg
    Delivery time:6 to 10 dats
Add to cart

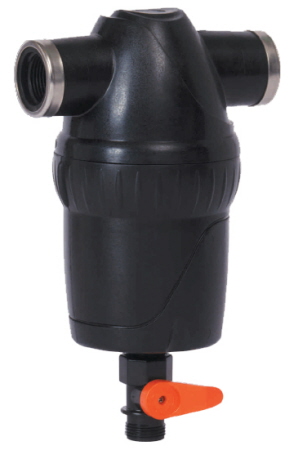

32 mm 1" T Filter,BSPT, Short Special Stainless steel Screen.
Screen filter for sand and small stones presence in the water.
Water & irrigation high pressure screen filtration

General data:
Maximum flow rate: 7.0m³/h [31 GPM] ( for fine sand up to 2.5m3/h [11 GPM]
Screen area: 340 cm2  [ 53 Square inch]
Discs alternative filtration area: 460 cm2  [ 71 Square inch]
In-Out diameter 32mm; 1" Threads (BSP Optional NPT)
Maximum pressure 10 bar [150 psi]
50 or 130 Micron [300, 200 or 140 Mesh]
Nylon from 22 mic & SST/316 from 20 mic Screens
Or amiad 130 micron discs.

More details
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart

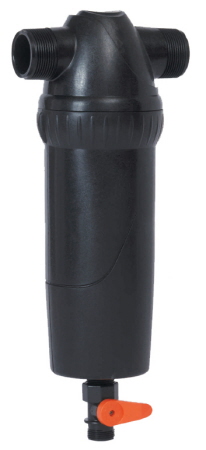

40mm 1 1/2" T Super Filter, BSPT, Special Stainless steel Screen.
Screen filter for sand and small stones presence in the water
water & irrigation high pressure screen filtration

General data:
Maximum flow rate         15m³/h; 66 GPM ( for fine sand filtration up to 5m 3/h; 22 GPM
Screen area: 340 cm2  [ 53 Square inch]
Discs alternative filtration area: 460 cm2  [ 71 Square inch]
In-Out diameter 40mm; 11/2" Threads (BSP, NPT)
Maximum pressure          10bar; 150psi
50, 80  or 100 Micron [300, 200 or 140 Mesh]

Nylon from 22 mic & SSt from 50 mic Screens
Amiad 130 micron discs

More details
