2" [50 mm] Automatic Metering Valve - Volumetric devise

BERMAD
90002GID0BP00008
ex Shipping kg
    Delivery time:20 to 35 Days
  • Description
  • More

Automatic Shut-Off Metering 2" AMV Valve - Bermad
 ! Now Available Again for Orders !
No more manufacturing  !!!

For an alternative new AMV product press here >

2" [50mm] AMV - DOSE-O-MAT is a water automatic batch controller. Excellent solution to fill small pools, large tanks, vessels, mining activities and any work with predefined needed volume of water. This tiny AMV automatic water flowmeter and shutoff valve is a professional solution for cement and concrete batching. Larger models, up to 12" are available as well.
This devise is based on a waltman turbo type water meter along with a diaphragm hydraulic controlled valve .

2" AMV Bermad Automatic Metering Valve
The Irrigationglobal.com by bermad Automatic  Shut-off Metering incorporate a diaphragm activated hydraulic control valve along with a vertical turbine water meter.
A mechanical Shut-Off mechanism controls the valve On/Off actions. This IR-900 Automatic devise enables volumetric control over irrigation systems without computers or electricity. The 900-DO automatically shuts-off when precisely delivered a dial preset volume of water.

Flow-Rate ranges:  0.8-25 m3/h [ 3.5 - 110 gpm]
Pressure rating: 10 bar [145 psi]
technical data sheet bermad amv 900-dot
Bermad 900D AMV's installation and maintenance instructions

Features and Benefits
Integrated "All-in-One" Control Valve
Saves space, cost and maintenance
Easy Modification to Mechanical Drive Hydrometer
Adaptable to future computerized systems
Hydraulic Batch Control
Line pressure driven
Non-computerized quantity follow-up and control
Internal Inlet & Outlet Flow Straighteners
Saves on straightening distances
Maintains accuracy
Integrated Flow Metering Calibration Device
Measurement precision to ±2%
User-Friendly Design
Easy dose setting
Simple in-line inspection and service

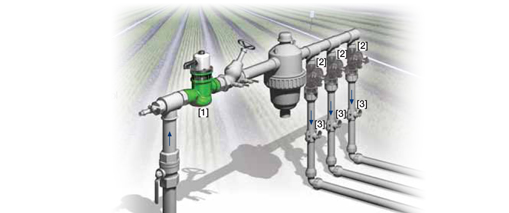

Typical Applications
Semi-Automatic Irrigation Systems
Manual Irrigation - Intended for Computerization
Distanced and/or Elevated Plots
Volumetric Irrigation Systems

Bermad 900D AMV's installation and maintenance instructions
