Dorot valves Ltd spare parts

6in & 8in Eliptix Ooval Diaphragm Assy

Aquestia
02CH5306RT75-32 02CH7606S2 02CH437606DL
ex Shipping kg
    Delivery time:4 to 6 weeks
Add to cart


Assembly includes:
1 x DIAPHRAGM SERIES 30 6", 8R"
NATURAL RUBBER 75-5 2MM

1 x SPRING CONICAL SERIES 30 STST

1 x DIN17224 6".8*
SPRING SEAT BLACK DELRIN SERIES

6" & 8" Eliptix Ooval ARI Aquestia Diaphragm Assy

Assembly includes:
1 x DIAPHRAGM SERIES 30 6", 8R"
NATURAL RUBBER 75-5 2MM

1 x SPRING CONICAL SERIES 30 STST

1 x DIN17224 6".8*
SPRING SEAT BLACK DELRIN SERIES

Now Only
ex Shipping kg
    Delivery time:14 Days
Add to cart

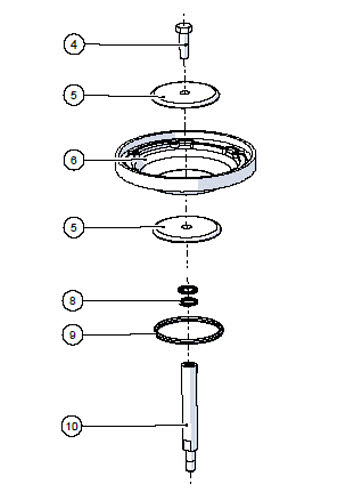

diaphrgm assembly kit for 2" Flush-GalValve Dorot model 51 for spin klin batteries Dorot
diaphragm assembly kit for 2" Flush-Gal Valve Dorot model 51 for spin klin batteries Dorot [3 un. pack]

diaphragm assembly kit for 2" Flush-Gal Valve Dorot model 51 for spin klin batteries Dorot [5 un. pack]Kit content:kit comtent, 6671820510 flushgal 2" dorot
More details

Elastomers kit for 2" Dorot Galil hydraulic valve, 5 kits pack

Dorot
SIL001041|ORG001249|ORG001195|DPM001105
ex Shipping kg
    Delivery time:7-9 WD
Add to cart

Elastomers kit for 2" Dorot Galil hydraulic valve, 5 kits pack

Elastomers kit for 2" Dorot Galil hydraulic valve, 5 kits pack.
Each Elatomers kit contain:

1 x SEAL NR FOR VALVE GALIL 2in. 85 Shor SIL001041
2 x ORING 6075 NBR ID13 W2 ORG001249
1 x ORING 2227 NBR ID53.57 W3.5 3 ORG001195
1 x DIAPHRAGM NO. 302 NR GALIL 2in. UP TO 16BAR DPM001105

DIAPHRAGM NO. 031 NR FOR PILOT 29100 UP TO 10 BAR 5 Pack.

Dorot
DPM001013
ex Shipping kg
    Delivery time:7-9 WD
Add to cart

Radial gasket (seal) for arkal / amiad universal flanges
Dorot DIAPHRAGM NO. 031 NR FOR PILOT 29100UP TO 10BAR. 5 units pack

DIAPHRAGM NO. 022 NR S753W 2 in" UP TO 10 BAR 5 Pack

Dorot
DPM001117
ex Shipping kg
    Delivery time:7-9 WD
Add to cart

Radial gasket (seal) for arkal / amiad universal flanges
Dorot DIAPHRAGM NO. 022 NR S753W 2" UP TO 10 BAR. For dorot 2" hydraulic valve. 5 units Pack

DIAPHRAGM NO. 095 NR S90 3" UP TO 10 BAR 5 Pack

Dorot
DPM001133
ex Shipping kg
    Delivery time:7-9 WD
Add to cart

Radial gasket (seal) for arkal / amiad universal flanges
DIAPHRAGM NO. 095 NR S90 3" UP TO 10 BAR 5 units Pack For Dorot 3" hydraulic valve
ex Shipping kg
    Delivery time:7-14 W Days
Add to cart
dor plas for filtomat m-100 amiad 700190-001604

Complete assembly 3/8" ACCELERATOR DOROT PLAST (dor/plas)  Dorplas


8/3" Dor Plas. Accelerator For amiad M100 filtomat

Complete assembly 3/8" ACCEL DOROT PLAST (dor/plas) BLACK W/GRN.SPR. Includes: Kit Includes:
1 un 8/3" Dor Plas. Accelerator by dorot valves 730110-000009
1 un L-Connector 3/8" M x 12mm BSPT Black 720501-000172
1 un L-Connector 3/8" M x 8mm RPP BSPT Black Blue 720501-000217
1 un L-Connector 1/4" M x 8mm Black-Red 720501-000198
1 un STR-Connector 1/8" x 6mm Black-BluE 720501-000195
1 un 0.5 m CTRL.TUBE 8MM LDPE BLACK

Dorot accelerator for amiad filtomat filters (dorplas dor plas) catalog numbers:
P25300P01760001
P25300ACC3WPLAS017EPDM
P25300ACC3WPLAS017EPDM

More details

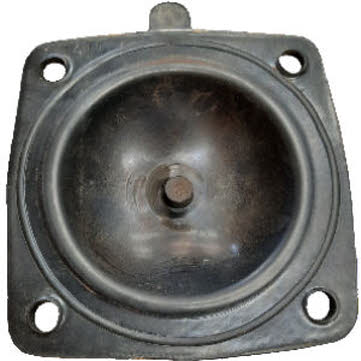

THICK DIAPHRAGM 2" 70 SHOR NO.003 NR S100 2in.UP TO 16BAR 5 un pack

Dorot
0310DPM001108
ex Shipping kg
    Delivery time:7-9 WD
Add to cart
THICK DIAPHRAGM 2" 70 SHOR NO.003 NR S100 2in.UP TO 16BAR Dorot 0310DPM001108
THICK DIAPHRAGM 2" 70 SHOR NO.003 NR S100 2in.UP TO 16BAR
 for:   2" and 3x2x3 Dorot byAquestia 100 series pn 16 gal Valves, 5 kits pack

Elastomers kit for 2" Dorot by AquestiaGalil hydraulic valve, 5 kits pack.
Each Elatomers kit contain:

1 x SEAL NR FOR VALVE GALIL 2in. 85 Shor SIL001041
2 x ORING 6075 NBR ID13 W2 ORG001249
1 x ORING 2227 NBR ID53.57 W3.5 3 ORG001195
1 x DIAPHRAGM NO. 302 NR GALIL 2in. UP TO 16BAR DPM001105

3 Way command valve assembly sagiv kit

Sagiv
101033940+2+2+1.2m
Now Only
ex Shipping kg
    Delivery time:7-10 w days
Add to cart

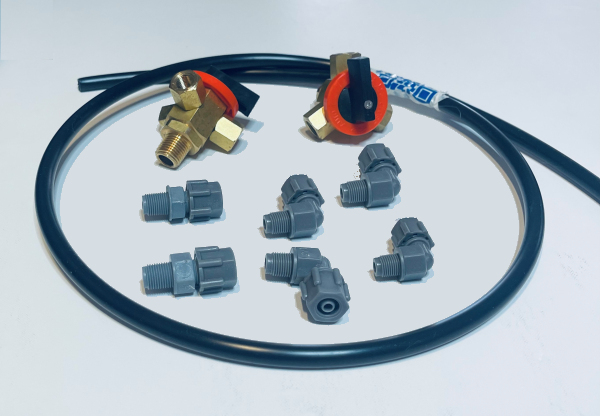

3-Way manual selector valve assembly sagiv kit
Kit includes:
2 x THREE WAY VALVE SY-3 1/4"COM.M.1/8"M+2x1/8"F Sagiv
2 x 8mm x 1/8" male elbow
2 x 8mm x 1/8" male adapter
2 x 8mm x 1/4" male elbow
1.0 m [20"] 8mm command tube [CONTROL TUBE]
3 Way manual selector ball valve assembly sagiv kit:
 2x THREE WAY VALVE SY-3 1/4"COM.M.1/8"M+2x1/8"F 2 x 8mm x 1/8" male elbow2 x 8mm x 1/8" male adapter1.0 m [20"] 8mm command (CONTROL TUBE)
