MANUAL DISK FILTER 1" SHORT PN25 [BSP or NPT]
Arkal
1100
ex Shipping kg
    Delivery time:7 days
Add to cart
  • Description
  • More

1" [PN 25] Short Disc water filter with 3/4" PN20 plastic Flushing valve by arkal amiad, irrigation, industrila and residential usages.

We offer the lowest prices on the market

Free wrench is supplied with each filter

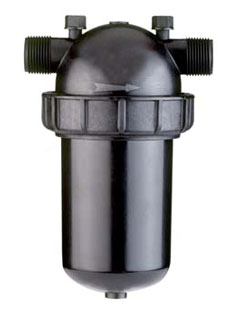

Arkal short plastic 1" [25 mm] disc filter
max. flow rate:
good water quality:      6 m3/h [ 26 gpm]
average water quality: 4 m3/h [18 gpm]
applications: gardening, nurseries, delicate devices protection, feritgation, small control heads. - Pressure gauge insertion points.
Product Leaflet



1" Disc Filter - Technical Data

data

1" filter

Maximum pressure:

10 bar

145 psi

Flow rate(40-140 mesh, 100-400µ):

6 m3/h

26 gpm

Flow rate(55µ):

4 m3/h

18 gpm

Filtration surface area:

316 cm2

49 in2

Filtration volume:

440 cm3

27 in3

Filter length:

237 mm

9 11/32"

Filter width:

158 mm

6 7/32"

Distance between end connections:

158 mm

6 7/32"

Weight:

1 kg

2.2 lbs
