MANUAL DISK FILTER 1" PN25 [BSP or NPT] Amiad
Arkal
1102
ex Shipping kg
    Delivery time:7 days
Add to cart
  • Description
  • More

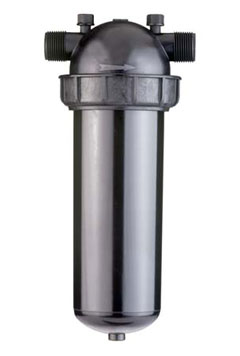

1" [PN 25 ] Super Disc irrigation filter by arkal.
Long disc filter for drip irrigation, micro irrigation and drinking water pre filtration purposes

We offer the lowest prices on the market

Free wrench is supplied with each filter

Arkal super plastic 1" [25 mm] disc filter
max. flow rate:
good water quality: 8 m3/h [ 35 gpm]
average water quality: 6 m3/h [26 gpm]
applications: gardening, nurseries, small control heads, small secondary {control} filtration. - Pressure gauge insertion points.
Product Leaflet

1" Super Disc Filter - Technical Data

data

1" Super filter

Maximum pressure:

10 bar

145 psi

Flow rate(40-140 mesh, 100-400µ):

8 m3/h

36 gpm

Flow rate(55µ):

6 m3/h

26 gpm

Filtration surface area:

500 cm2

78 in2

Filtration volume:

625 cm3

36 in3

Filter length:

340 mm

13 13/32"

Filter width:

158 mm

6 7/32"

Distance between end connections:

158 mm

6 7/32"

Weight:

1.4 kg

3.1 lbs


 packaging of 1" super manual disc filter arkal amiad:
physical weight: 1.9 Kg.
dimensions: 40x21x15cm
12 units in a 120x33x48cm Box > 27.8 Kg. (Courier 38 Kg.)
