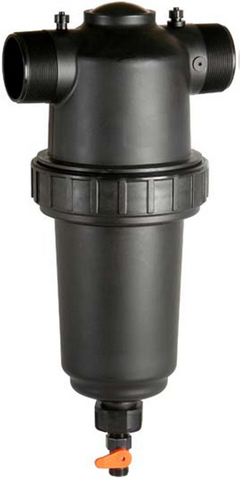

3"T Filter irrigation water, threads, Weavewire screen 110 x 370mm
Amiad
010007-000022
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart
  • Description
  • More

3" 80 mm screen water filter.   irrigation screen filtration
Filtration area: 1200 SQCM [186 SQIN]
Filtration grades: 80 to 500 Microns [40 to 180 Mesh]

Flushing by a turn of a handle.
Optional Scanaway or Brushaway cleaning mechanisms add-ons.
Weavewire screen 110 x 370 mm Filtration area: 700 cm² (108 in²)
Max. Flow Rate: 50 m3/h (220 gpm)
Max. Working Pressure: 10 bar (145 psi)
Connections: male threads, BSP or NPT.
Click to see same unit as Semi Automatic

Minimum needed
flow flushing

M3/h

GPM

Brushaway

1

5

Scanaway

7

32
