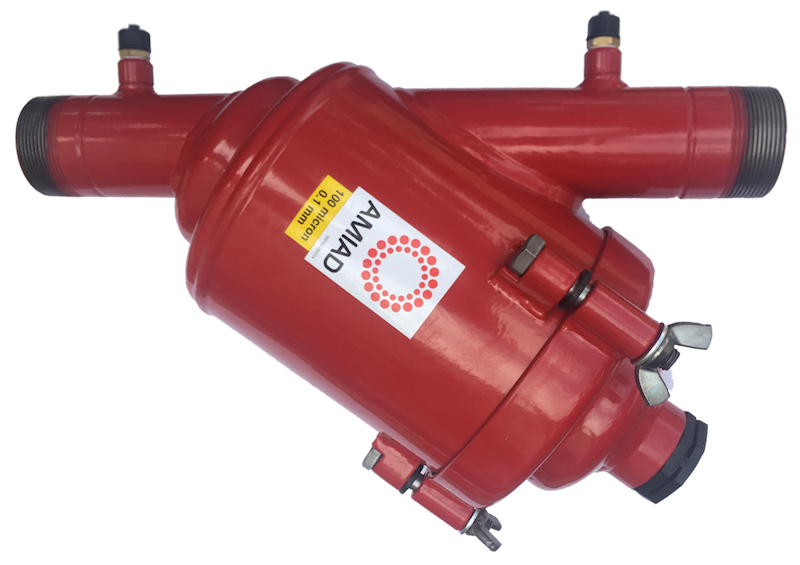

2" Metal Manual Screen Filter
Amiad
022000
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
  • Description
  • More

2" Screen Manual Steel Filter
Filtration grades: 50 to 3500 Micron [300 to 4 mesh]
Amiad Screen Filters Spare Parts



Filtration area: Weavewire screen  465 cm2  (72
Maximum flow rate* 25 m3/h [110 US gpm]
Max. working pressure 10 bar (150 psi)
Connections: BSTD, or NPT threads

Maximum flow rate* 25 m3/h (110 US gpm)
Inlet/outlet diameter flanges and threads 2” (50 mm)
Standard filtration degrees 3500, 2500, 1500, 800, 500, 300, 250, 200, 180, 130, 100, 80, 50 micron
Max. working pressure 10 bar (150 psi)
Max. working temperature 60°C (140°F)
Weight (empty) threads Screen = 7.3 kg (16 lb)
Discs = 8.1 kg (17.8 lb)
Weight (empty) flanges Screen = 10.5 kg (23 lb)
Discs = 11.3 kg (25 lb)


Filter Element Data
Filter area Weave Wire = 465 cm² (72 in²);
Screen = 700 cm² (108.5 in²);
Discs = 790 cm² (122.4 in²)
Filter element types Weave Wire Screen, Disc Element, Perforated Screen



022000-000060
2"IN-LINE NPT C/ST RED SCREEN 130 M  2" IN-LINE STEEL MANUAL FILTER NPT THREAD C/ST RED SCREEN 130 MICRON S/ST316

022000-000038
2"IN-LINE BSPT C/ST RED SCREEN 50 M 2" IN-LINE STEEL MANUAL FILTER BSPT THREAD C/ST RED SCREEN 50 MICRON S/ST316 465SQ.CM
