semi-automatic filter suction_scanning_screen_filter

? How do the Semi automatic Scanaway filters really work?

  • Description
  • More

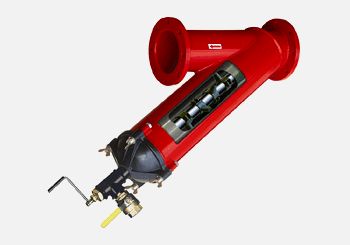

The Semi-automatic screen filter SCANAWAY assembly consists of a hollow PVC or stainless steel pipe with suction nozzles that are facing the inner side of the screen.
- Quick and efficient cleaning of manual filters in irrigation systems.
- Manual scan-clean by turn-of-a-handle, does not require system shutdown
- No need to turn off water and open the filter for flushing.
- Integral Clogging Indicator
- Enable automatic scan-nozzle-cleaning according To time.

- No more redundant head losses through the entire filter.
- Drip irrigation compatible.
- Scanaway is best for filtration grades between 130>55 mic [120>200 M]
- Brusaway is best for filtration grades between 200>500 mic [20>80 M]
- Clogging Indicator, is a part of each semi-automatic screen filter.

A handle connected To the suction scanner from the outside, allows turning the scanner in a spiral movement so that it rotates inside the screen surface without touching the screen.Opening the exhaust valve at the filter lid will create low pressure conditions, which cause the scanner nozzles To suck-in the dirt from the screen surface and expel the dislodged particles out through the valve.Scanning is done during the filtering process without having To stop the water supply.

scanaway brushaway screen filter


Semi Automatic Screen Filters Technical Product Pages
