Spines rev 2.8 Spin Klin SK arkal by amiad
Amiad Arkal
700101-00
Now Only
ex Shipping kg
    Delivery time:6-8 w days
Add to cart
  • Description
  • More

ARKAL SPINES Revision 2.8 FOR SPIN KLIN tm Filters

New Arkal sk spine ver 2.8 overview brochure

NEW SPINE REV. 2.8 FOR ARKAL SPIN KLIN tm PRODUCTS

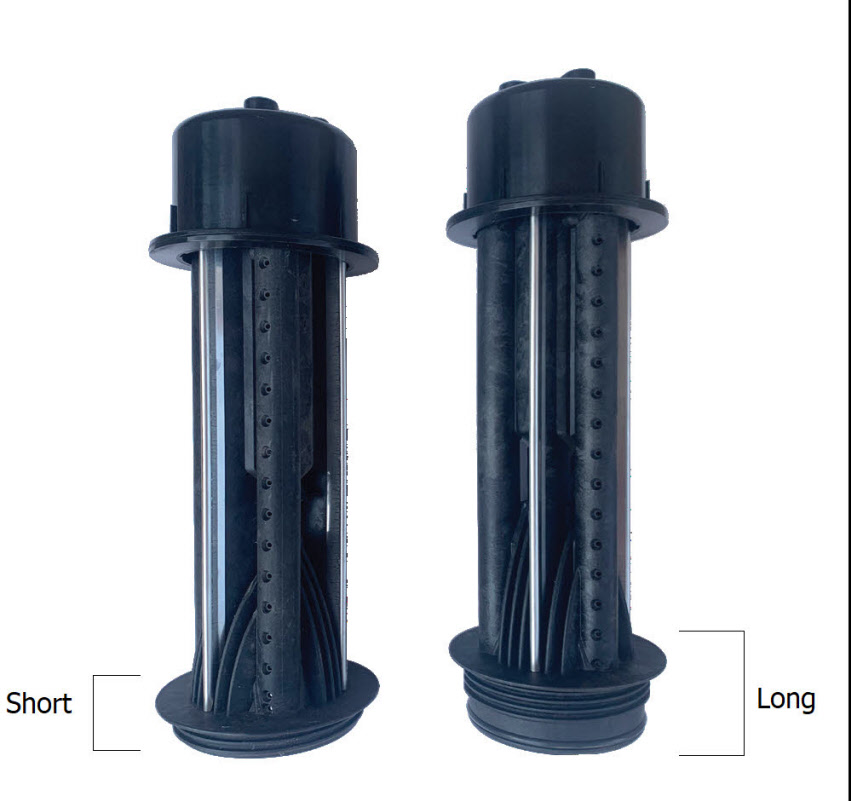

Short Spine 2.8/2348 for Galaxy filters and old (before 2019) SK filters.

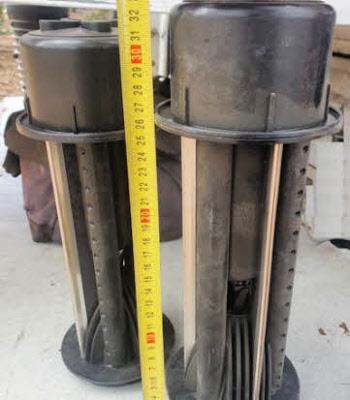

*total height 318 mm [12.5"]

Long Spine 2.8/2255 for 2"-3" SK filters and very old SK filters.
*total height 336 mm [13.2"]

Also available special versions for Low pressure (bellow 2.0 Bar]
700101-00002256 long short low pressure
700101-000249 short low pressure
700101-000258 SHORT  SEA & AGGRESSIVE WATER VERSION
700101-000257 LONG SEA & AGGRESSIVE WATER VERSION

New Arkal sk spine ver 2.8 overview brochure

Original by ARAKL from amiad group spin klin spines new  version2.8

Status:
Mold in use from 2019.
Optimized raw material flow within the mold for
more stable and higher quality products.

Nozzles
Spray in a clockwise direction.
This minimizes the possibility of the spine opening,
as the spin is in the opposite direction.

Versions
2 versions:

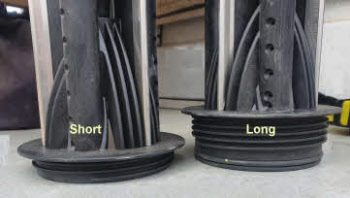

Long – for the 2” & 3" filter. Eliminates the need for
an adapter.

Short – for the complete Galaxy product line and for
replacing existing spine on-site.

Spine Colors: Black: Standard (RPA) | Grey: DW (RPP)

Complete Spine version 2.8 Information:

All ARKAL Amiad Rev. 2.8 SK spines alternatives.

*Short for 4" & 6" Gallaxy & SK 2" filters  before 2019
 SAP
SPINE ASSEMBLY MODEL 2.8 SK *Short RPA 700101-002349
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA 700101-002255
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK  *Short RPA LCE 700101-000249
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA LCE 700101-002256
SPINE ASSEMBLY MODEL 2.8 2-3" SK EPDM SEALS LCE Drinking  Water 700101-002406
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK RPA Sea Water 700101-000258
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA  Sea Water 700101-002259
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK  *Short RPA  Sea Water LCE 700101-001319
SPINE ASSEMBLY MODEL 2.8 2-3" SK  Sea Water LCE 700101-002287
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK EPDM SEALS LCE  Sea Water  *Short 700101-001982
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK AGGRESSIVE WATER  *Short
In old spine ver. 2.7 it was was 700101-002047		 700101-000257
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA AGGRESSIVE WATER  *Short
IIn old spine ver. 2.7 it was was 700101-0002047		 700101-002258/td>
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK  *Short RPA AGGRESSIVE WATER LCE 700101-001473
SPINE ASSEMBLY MODEL 2.8 2-3" SK AGGRESSIVE WATER LCE 700101-002286
* 2”-3” SK Complete Adaptor [6] needed for ANY short spine 700190-000117

Original by ARAKL from amiad group spin klin spines new  version2.8

Status:
Mold in use from 2019.
Optimized raw material flow within the mold for
more stable and higher quality products.

Nozzles
Spray in a clockwise direction.
This minimizes the possibility of the spine opening,
as the spin is in the opposite direction.

Versions
2 versions:
Long – for the 2” & 3" filter. Eliminates the need for
an adapter.

Short – for the complete Galaxy product line and for
replacing existing spine on-site.

Spine Colors: Black: Standard (RPA) | Grey: DW (RPP)

Complete Spine version 2.8 Information:

All ARKAL Amiad Rev. 2.8 SK spines alternatives.

*Short for 4" & 6" Gallaxy & SK 2" filters  before 2019
SAP
SPINE ASSEMBLY MODEL 2.8 SK *Short RPA700101-002349
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA700101-002255
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK  *Short RPA LCE700101-000249
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA LCE700101-002256
SPINE ASSEMBLY MODEL 2.8 2-3" SK EPDM SEALS LCE Drinking  Water700101-002406
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK RPA Sea Water700101-000258
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA  Sea Water700101-002259
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK  *Short RPA  Sea Water LCE700101-001319
SPINE ASSEMBLY MODEL 2.8 2-3" SK  Sea Water LCE700101-002287
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK EPDM SEALS LCE  Sea Water  *Short700101-001982
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK AGGRESSIVE WATER  *Short
In old spine ver. 2.7 it was was 700101-002047		700101-000257
SPINE ASSEMBLY MODEL 2.8 2-3" SK RPA AGGRESSIVE WATER  *Short
IIn old spine ver. 2.7 it was was 700101-0002047		700101-002258/td>
SPINE ASSEMBLY MODEL 2.8 4-6-10" SK  *Short RPA AGGRESSIVE WATER LCE700101-001473
SPINE ASSEMBLY MODEL 2.8 2-3" SK AGGRESSIVE WATER LCE700101-002286
* 2”-3” SK Complete Adaptor [6] needed for ANY short spine700190-000117

New ver 2.8  spines for arkal amiad netafim spin kline 2"3" and 4/6" galxy sk filters

Cat no. 700101-001193  > Is the old* SPINE ASSEMBLY MODEL 2.7 2-3-4-6" SK RPA  • Not manufactured since 2019

The are 2 alternatives for a new spine replacement:

A. 700101-002349 is a new revision 2.8 replacement spine: SPINE ASSEMBLY MODEL 2.8 SK SHORT RPA for Galxy SK batteries and old spin klin filters using spine adapter.

B. 700101-002255 is a;sp a new  revision 2.8 replacement spine: SPINE ASSEMBLY MODEL 2.8 2"-3" SK LONG RPA for new 2" & 3" spin Klin filters operated without a  spine adapter.
