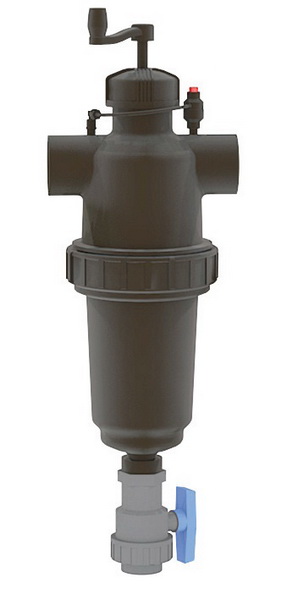

3" TH 1200 Super Semi Automatic Screen Filter
Amiad
030004-000018
ex Shipping kg
    Delivery time:6 to 10 days
Add to cart
  • Description
  • More

3" TH Semi Automatic filter. From US$ 452 per Filter. *Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh] Molded Screen for 2” TS 1200 Sq.cm 200 Sq. In. 1500 to 3500 mic screens are also available.

Scanaway Or Brushaway cleaning mechanisms.


Flushing by a turn of a handle.
Optional Scanaway or Brushaway cleaning mechanisms add-ons.

3" TH Semi Automatic filter. From US$ 452 per Filter. *Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh] Molded Screen for 2” TS 1200 Sq.cm 200 Sq. In. 1500 to 3500 mic screens are also available.

Scanaway Or Brushaway cleaning mechanisms.



Weavewire screen 110 x 370 mm Filtration area: Molded Screen for 2” TS 1200 Sq.cm 200 Sq. In.
Max. Flow Rate: 50 m3/h (220 gpm)
Max. Working Pressure: 10 bar (145 psi)
Connections: male threads, BSP or NPT.

Filtration area amiad screen filter: Molded Screen for 2” TS 1200 Sq.cm 200 Sq. In.

Minimum needed
flow flushing

M3/h

GPM

Brushaway

1

5

Scanaway

7

32

Related Products

2" TS Super Semi Automatic Screen Filter
ex Shipping
2"TS Super Screen Filter Scanaway Or Brushaway cleaning mechanisms. Scanaway or Brushaway* *Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh]
More details

3" TL Flanged Semi Automatic Screen Filter
ex Shipping
Scanaway Or Brushaway cleaning mechanisms. *Brushaway only for filtration grades: 200, 300 and 500 micron [40, 50 and 75 Mesh] irrigation screen filtration.
More details

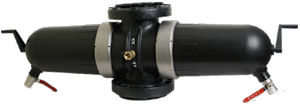

6” Semi Automatic Super Leader Screen Filters Flange
