2" & 3" Mini Sigma maintenance basic spare parts kit

700194-000032
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
2" & 3" Mini Sigma basic spare parts kit, to be replaced every year.
Amaid Original

2" & 3" Mini Sigma basic spare parts kit, to be replaced every year includes:
1 x NOZZLES (6) [1.1]
1 x HYDRAULIC SEAL [6]
1 x Cover O-RING SEAL [10.1]
2 x Screen O-RING SEAL [12.1]
1 x GREASE TUBE

4" Mini Sigma Mini Sigma maintenance basic spare parts kit

700194-000084
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
4" Mini Sigma basic spare parts kit, to be replaced every year.
Amaid Original
4" Mini Sigma basic spare parts kit, to be replaced every year includes:6 x NOZZLES [1]3 x HYDRAULIC SEAL [6]1 x Cover O-RING SEAL [10.1]2 x Screen O-RING SEAL [12.1]1 x GREASE TUBE

4", 6" & 8" Sigma Pro Mini Sigma maintenance basic spare parts kit

700194-000033
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

4" & 6" & 8" Sigma Pro Spare parts kit, to be replaced every year.
Amiad Original

4" & 6" & 8" Sigma Pro Spare parts kit, to be replaced every year includes:
5 x O-RING SEAL  [4.1]
10 x O-RING SEAL  [5.1]
1 x NOZZLES (20) [6.1]
2 x HYDRAULIC SEAL [7.1]
1 x PISTON BUSHING [10.6]
1 x U-CUP SEAL  [10.7.1]
1 x  GREASE TUBE

Now Only
ex Shipping kg
    Delivery time:6 to 8 days
Add to cart

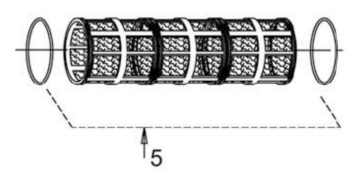

Molded Screen for 2” Mini sigma and 4" Sigma Pro Filters 1200 Sq.cm (including 2 O-Rings [200  Sq. Inch]
The 4" Sigma Pro contain 5 Screen element per each filter unit.

Sigma Filters Screens
for creation of a large filtration area relative to its size and handling of high flow rates per area Suction-scanning ready screen technology. Amiad automatic screen filtration.

More details
Now Only
ex Shipping kg
    Delivery time:6 to 8 days
Add to cart

Molded Screen for 3” Mini Sigma & 6"/8" Sigma Pro 1600 Sq.cm (including 2 O-Rings [260  Sq. Inch]
The 6" and 8" Sigma Pro contain 5 Screen element per each filter unit.

Sigma Filters Amiad Screens
for creation of a large filtration area relative to its size and handling of high flow rates per area Suction-scanning ready screen technology. Amiad automatic screen filtration.

More details
Now Only
ex Shipping kg
    Delivery time:6 to 8 days
Add to cart

Molded Screen for 4” Mini sigma Filter  2400 Sq.cm (including 2 O-Rings [372  Sq. Inch]

Sigma Filter Screens
for creation of a large filtration area relative to its size and handling of high flow rates per area Suction-scanning ready screen technology. Amiad automatic screen filtration.

More details
ex Shipping kg
    Delivery time:6 to 8 days
Add to cart
adi-p_controller_amiad300
ADI-P Smartphone Operated Flushing Controller for Single Filter

ADI-P Smartphone Operated Controller for Single Filter
Product includes:  - ADI-P DC Controller,  - 1 BACSOL 12VDC 2W LATCH Solenoid,  - 8 mm Connector, - Bracket for sigma assembly. Amiad’s ADI-P is a Smartphone Operated Controller that controls a single Amiad filter. The ADI-P is available in two main. configurations: An Integrated Component of a new filter or a Standalone Device for controlling an existing filter. The ADI-P system consists of two major components: The ADI-P Controller and the Mobile Flushing Management Application.  ADI Controller brochure, amiad filtration

ItemFor FiterSap

ADI-P DC KIT PACKAGE ONE SOLENOID NO		Mini Sigma & Pro
Filtomat Bell type		700103-001749
ADI-P DC Controller with 2 x 8MM TEFFEN Bermad 12V S982 TWO SOLENOIDS NO/NC F/MINI SIGMA ASSYfor mini sigma with a downstream low pressure valve700103-001772
ADI-P LT DC 1xBERMAD 12V S982 SOLENOID 8MM TEFFEN W/2 SENSORS IN BOX F/MINI SIGMA ASSYFor freezing areas withg external pressure switch sensors. single solenoids,700103-001924
ADI-P LT DC 2xBERMAD 12V S982 SOLENOIDS 8MM TEFFEN W/2 SENSORS F/MINI SIGMA ASSY
For freezing areas withg external pressure switch sensors. with 2 solenoids  for downstram valve.700103-00197
ADI-P DC KIT PACKAGE TWO SOLENOIDS NO Twin spin klin 700103-001758
ADI-P DC KIT PACKAGE ONE SOLENOID NC Filtomat Piston Type 700103-001763
ADI-P DC KIT PACKAGE TWO SOLENOIDS NC 2 x Spin Klin Filters 700103-001764
ADI-P DC KIT PACKAGE TWO SOLENOIDS NO/NC 2 x Spin Klin Filters 700103-001765





instructions for solenoid and controller replacement for amiad adi-p controllers

drawing of adi-p controller with 2 solenoids to control a downstream valve

More details

SOLENOID LATCH BERMAD S982 3WAY 3/2 12VDC 1/8" 3MM PP

Bermad
720103-000308
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

SOLENOID LATCH BERMAD S982 3WAY 3/2 12VDC 1/8" 3MM PP
For mini sigma amiad filters

2"-3" Screen O-ring seal mini sigma 2"-3" sigma pro 6 pack

amiad
770102-000384
Now Only
ex Shipping kg
    Delivery time:6 to 8 days
Add to cart
o-ring for mini sigma 2"-3" pro screen amiad 770102-000384
6 Units Pack. PARKER O-RING 2-244 EPDM 70 SHORE YELLOW DOT
for MINI SIGMA 2"-3" and Sigma Pro filters Amiad

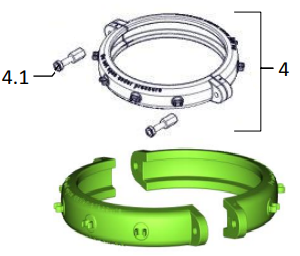

Clamp assembly for mini sigma filters amiad

amiad
700190-005396
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
Clamp assembly for mini sigma filters amiad
CLAMP ASSEMBLY FOR MINI SIGMA, including SET BOLTS, NUTS & WASHERS F/CLAMP MINI SIGMA ASSY 700190-005413
If your clamp is leaking, consider to add the new hydraulic seal cat. number 770104-000439

CLAMP ASSEMBLY FOR MINI SIGMA, including SET 2 x BOLTS, 2 x NUTS & 2 x WASHERS F/CLAMP MINI SIGMA ASSY 700190-005413

HYDRAULIC SEAL 2"-3"-4" EPDM 70 SHORE MINI SIGMA 4 pack

amiad
770104-000439
Now Only
ex Shipping kg
    Delivery time:6 to 8 days
Add to cart
HYDRAULIC SEAL 2”-3” EPDM 70 SHORE MINI SIGMA 770104-000358
4 Units Pack. HYDRAULIC SEAL 2"-3"-4" EPDM 70 SHORE for MINI SIGMA amiad.
New, re-engineered improved seal model with multi pressure cells.
Old closed cat number 770104-000358

COVER ASSEMBLY F/MINI SIGMA With HYDRAULIC SEAL 700190-005395 [5]

amiad
700190-005395
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
Mini Sigma 2", 3" & 4" 700190-005395 amiad original
COVER ASSEMBLY For MINI SIGMA 2", 3" & 4" With HYDRAULIC SEAL 700190-005395 [5]

COVER ASSEMBLY For MINI SIGMA 2", 3" & 4" With HYDRAULIC SEAL 700190-005395 [5] Genuine amiad spare parts for mini sigma and sigma pro filters

Mini Sigma filters galvanized multi-tool amiad

amiad
760109-000472
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
710101-001280 sigma filters multi-tool
Sigma galvanized multi-tool


ex Shipping kg
    Delivery time:6-9 Days
Add to cart

TURBINE ASSEMBLY F/MINI AND PRO SIGMA [3]
Amiad Spare parts Mini sigma and Sigma Pro


More details

4" MINI SIGMA LONG THERMAL COVER

720408-000116
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

4" MINI SIGMA FILTER LONG THERMAL COVER

720408-000116

2" & 3" MINI SIGMA THERMAL COVER

720408-000115
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart

2" & 3" MINI SIGMA FILTER THERMAL COVER

720408-000116

Now Only
ex Shipping
    Delivery time:5-7 Days
Add to cart

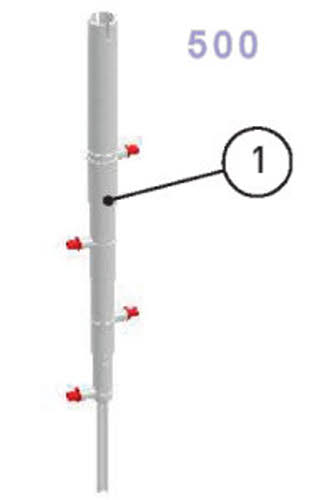

SCANNER ASSEMBLY W/STRAIGHT NOZZLE 8MM For 2" - 3" & 4" Mini Sigma also for Sigma Pro 4" - 6" & 8" Filters Original by Amiad.




[1] SCANNER ASSEMBLY W/STRAIGHT NOZZLE 8MM F/Mini Sigma 2" - 3" - 4" 700190-005105 [1] SCANNER 375 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/SIGMA 2" Mini sigma and 4" Sigma Pro 700190-005106[1] SCANNER 754 ASSEMBLY W/STRAIGHT NOZZLE 8MM F/Mini Sigma 4" 700190-005532
More details
Now Only
ex Shipping kg
    Delivery time:5-7 Days
Add to cart
Mini Sigma Series Spare Parts Amiad

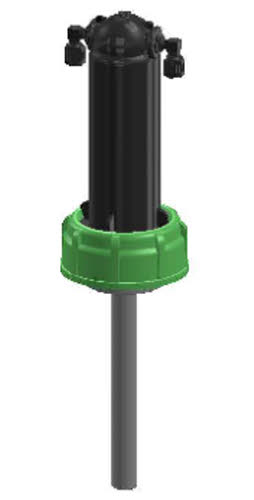

ACTUATOR ASSEMBLY F/MINI SIGMA Amiad [no. 7] Includes: 1 x 710101-001434 NUT F/MAN 90 RPA GREEN [no 6]2 x 710101-001311 SIGMA PISTON NOZZLE 2 MM PP YELLOW [no 5]2 x 720501-000139 L-CONNECTOR 1/4"M X8MM BSPT AC BLK Tefen [no 4]1 x 710101-001412 MINI SIGMA PISTON CYLINDER PBT BLACK [no 3]2 x 710101-001419 MINI SIGMA PISTON KEY PBT BLACK [no 2]1 x 700190-005161 ACTUATOR PISTON ASSEMBLY F/MINI Sigma [no 1]total of 8 parts
More details

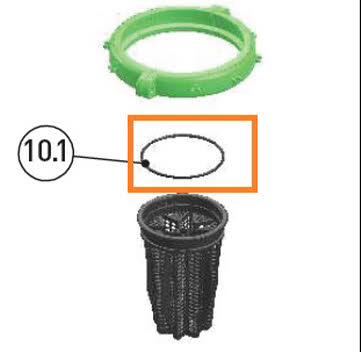

MM O-RING SEAL ID117MM TH4MM EPDM 70 SHORE YELLOW DOT for mini sigma filters

770101-000198
Now Only
ex Shipping kg
    Delivery time:5-7 Days
770101-000198 seal for mini sigma
MM O-RING SEAL ID117MM TH4MM EPDM 70 SHORE YELLOW DOT [3 un pack] for mini sigma automatic screen filters by amiad This item is sold solely as part of the annual spare parts kits.

vacuum breaker assembly mini sigma

amiad
700190-005152
ex Shipping kg
    Delivery time:3-5 Days
Add to cart
700190-005152_vacuum_breaker_assy

MINI SIGMA BODY 3"GRV
amiad
710101-001383
ex Shipping kg
    Delivery time:5-8 Days
Add to cart
mini sigma body 3in grooved 710101-001383 amiad
Mini sigma body 3in grooved 710101-001383 amiad

More details
